A4000D Rebuild: More of a rebuild than a repair
This page has supersized pictures

Supersized image 01 | Supersized image 02 |

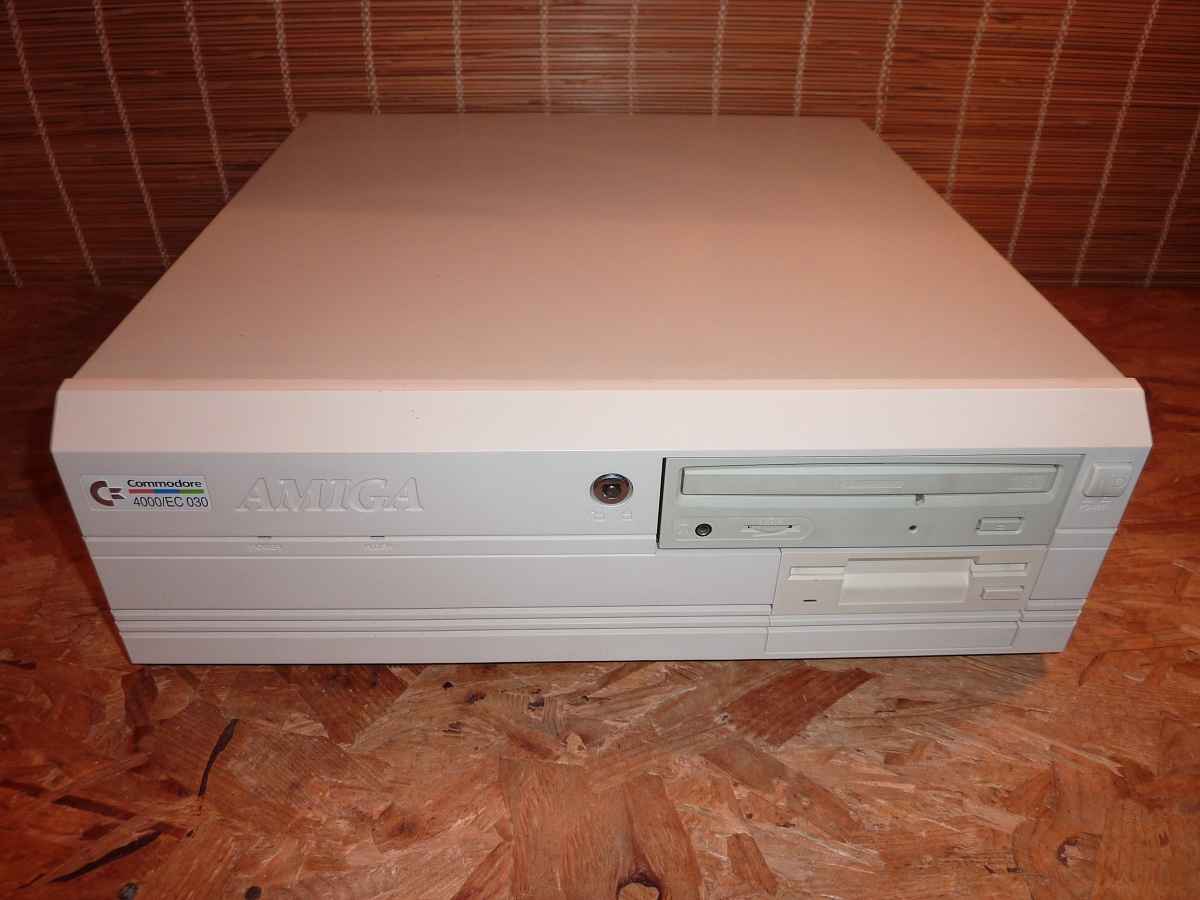

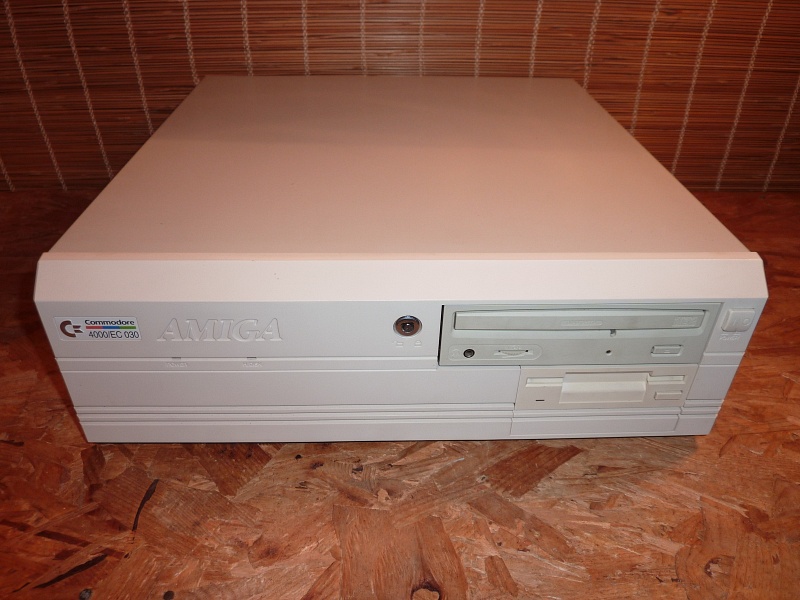

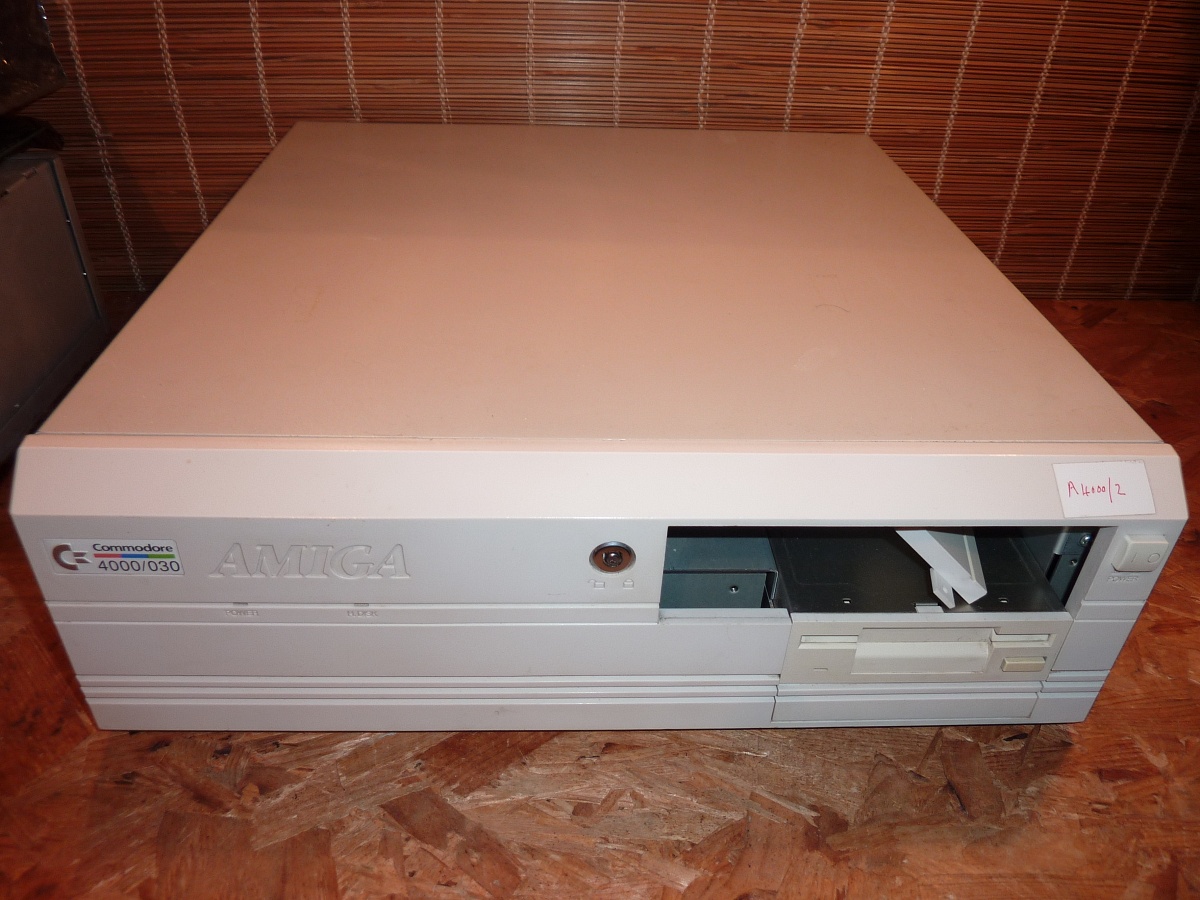

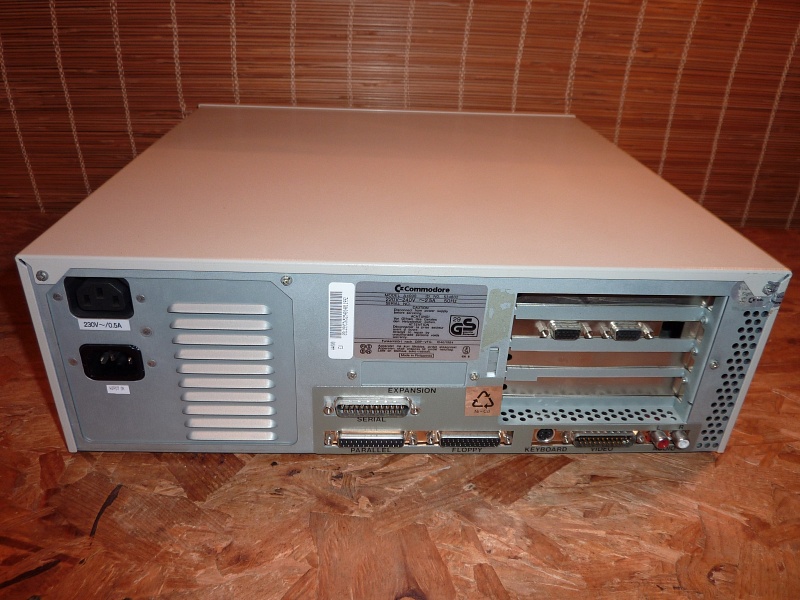

First up a perfectly working Amiga 4000 EC 030
used for reference purposes. Quite useful for
conector information, jumper settings etc
If you click the image you get a medium sized image
Click the link below you get a supersized image

Supersized image 03 | Supersized image 04 |

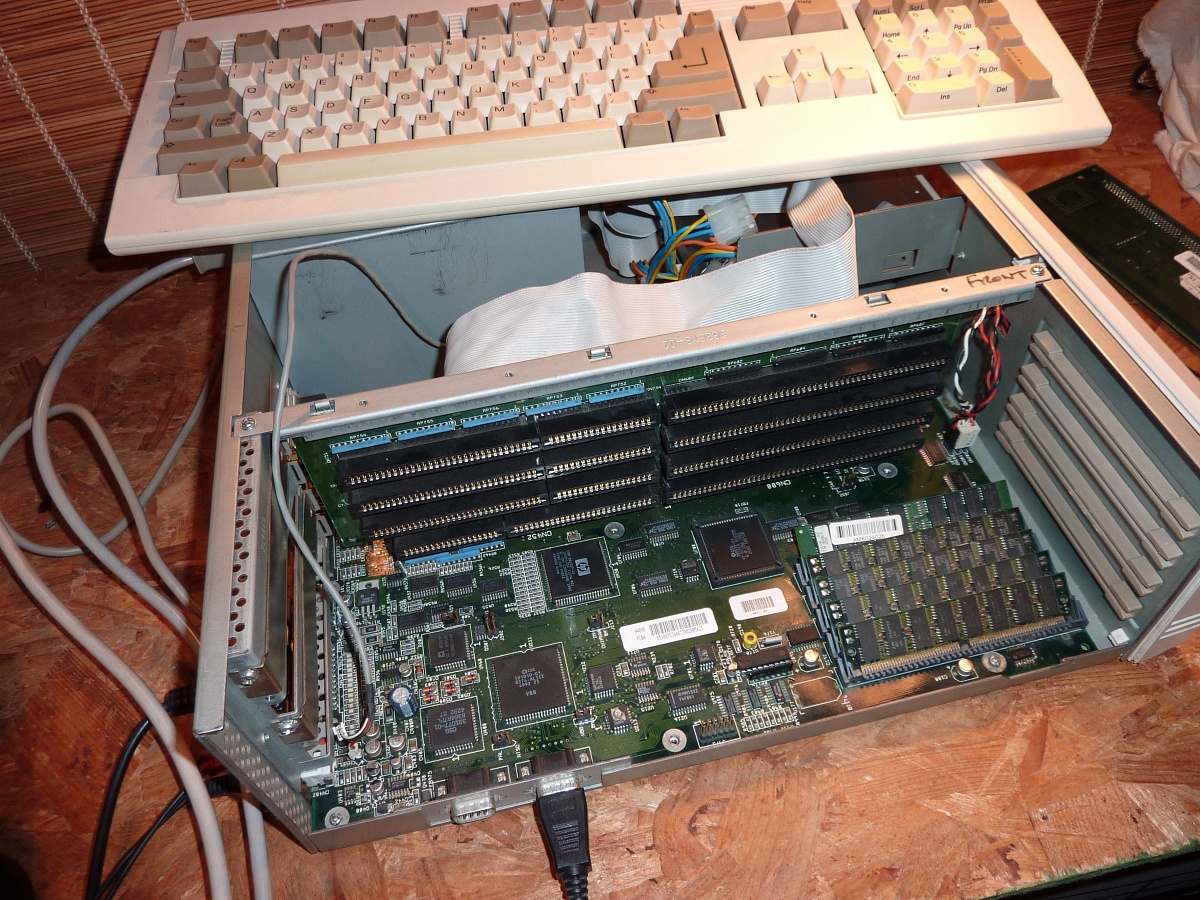

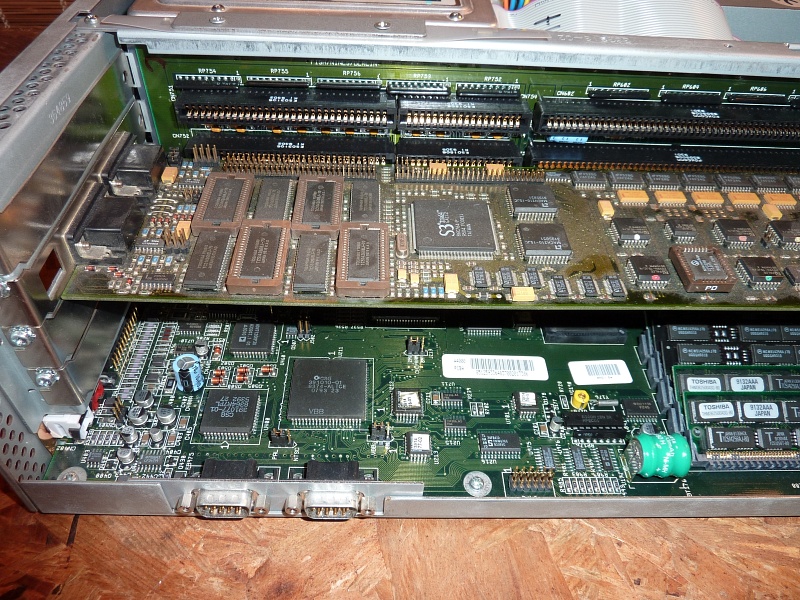

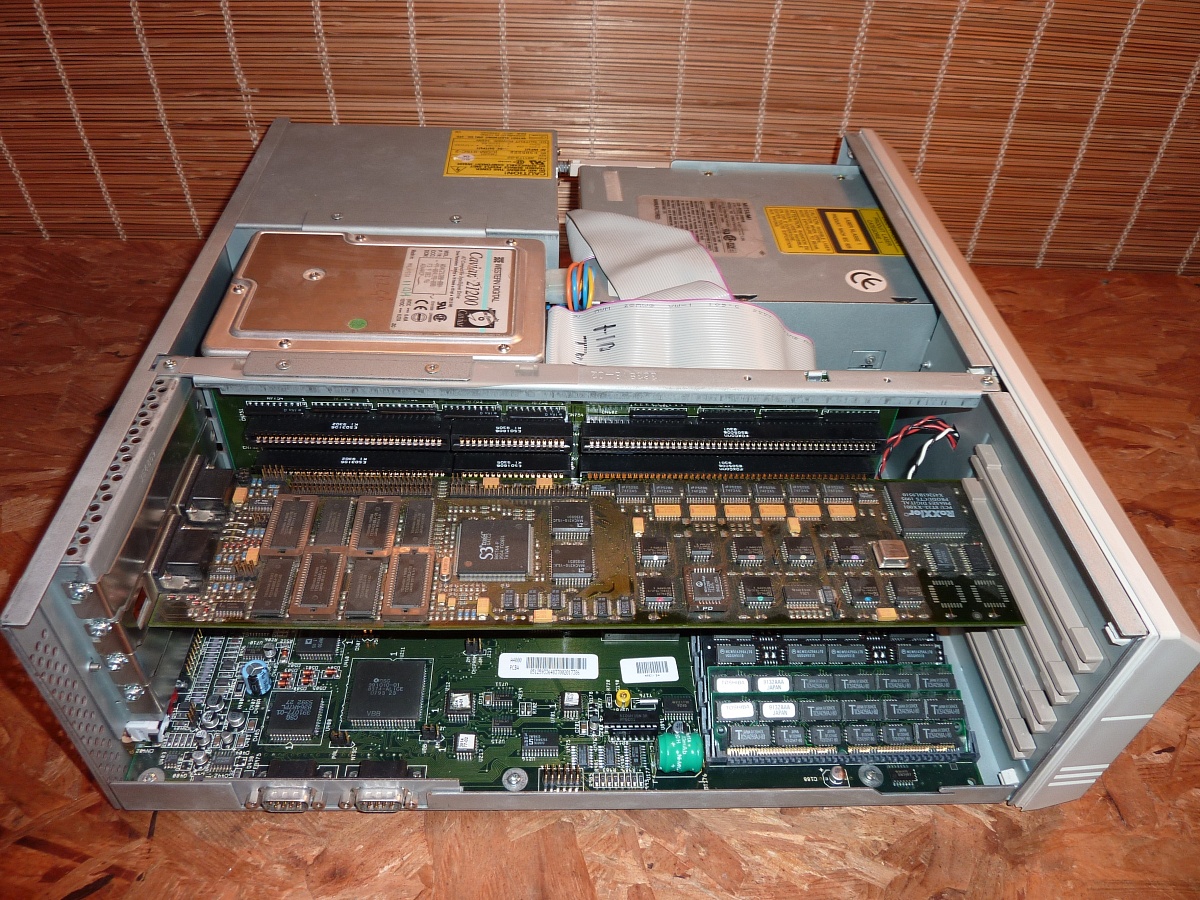

Images of the inside of a healthy Amiga 4000 complete
with Cybervision 64 graphics card..

Supersized image 05 | Supersized image 06 |

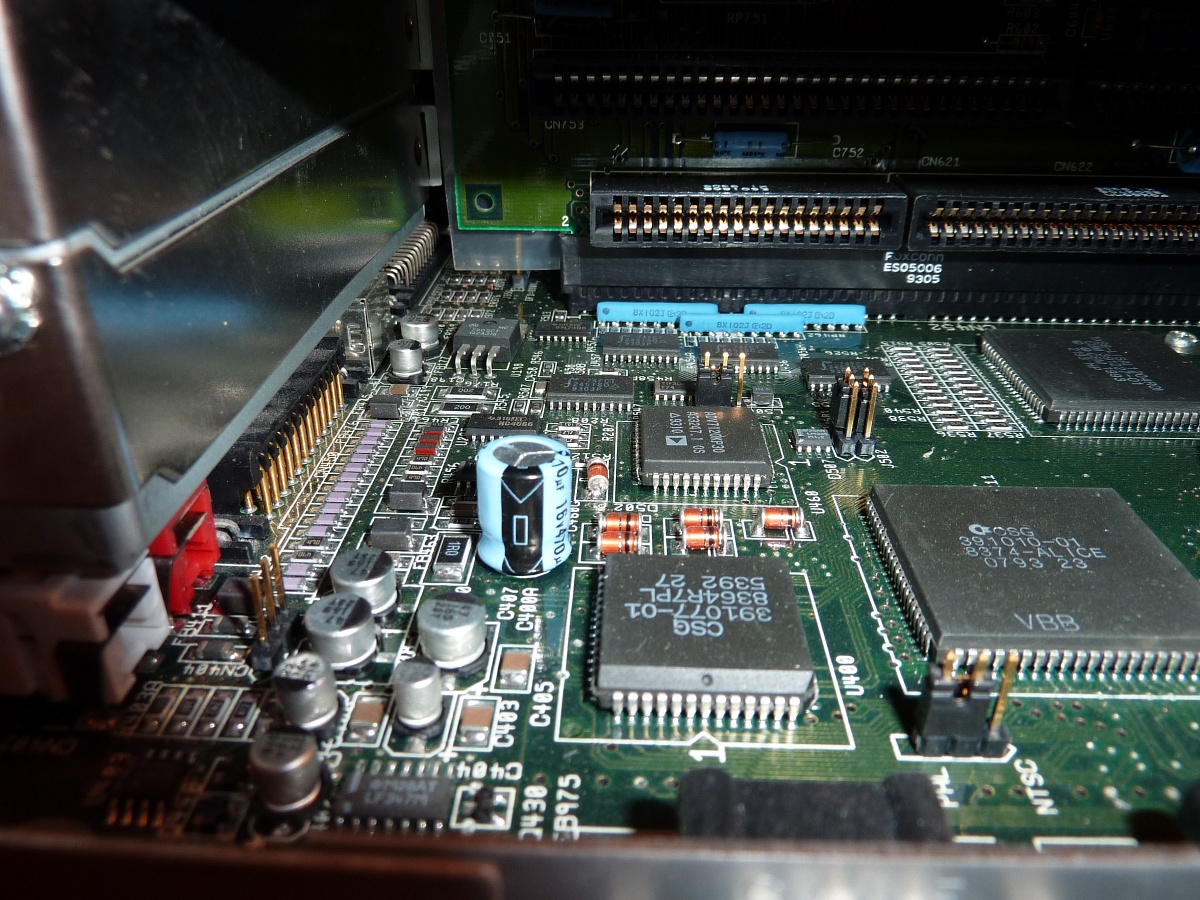

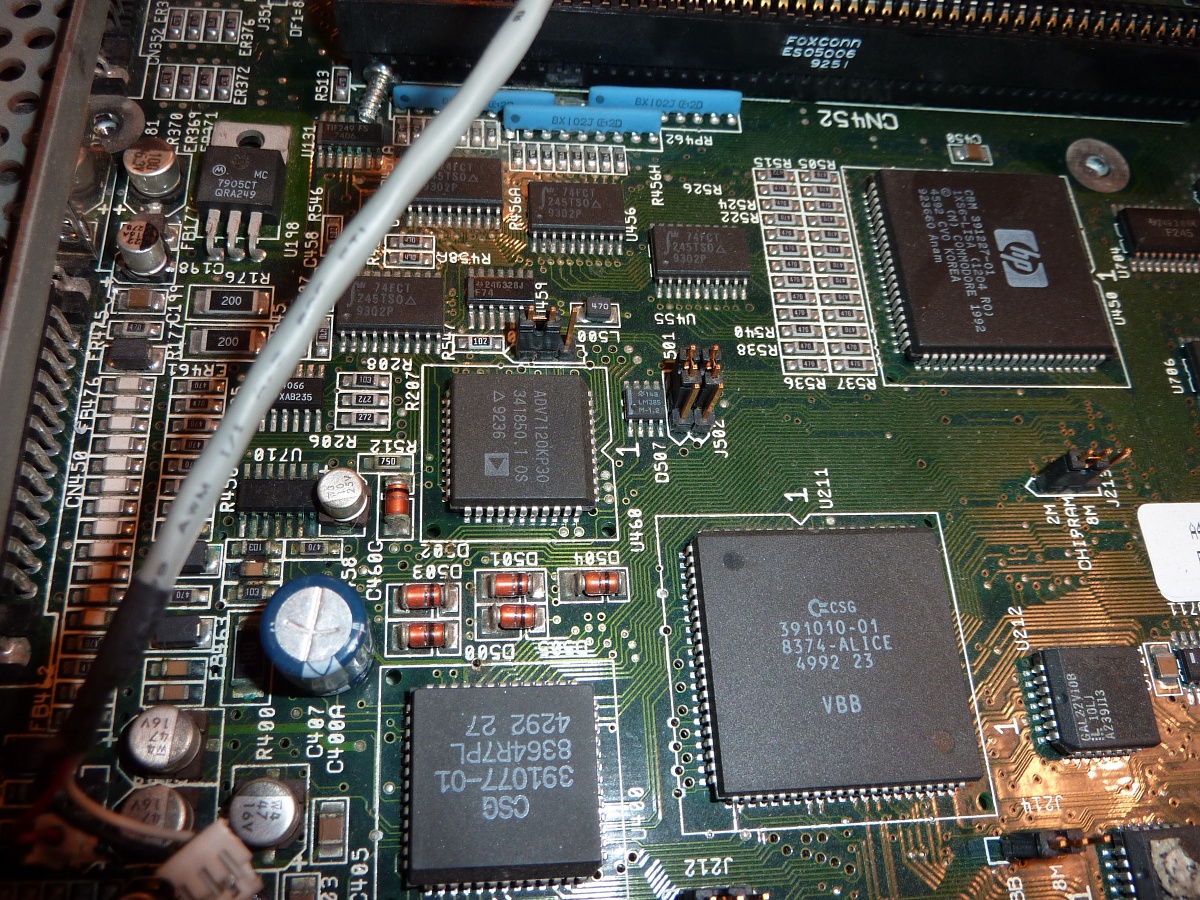

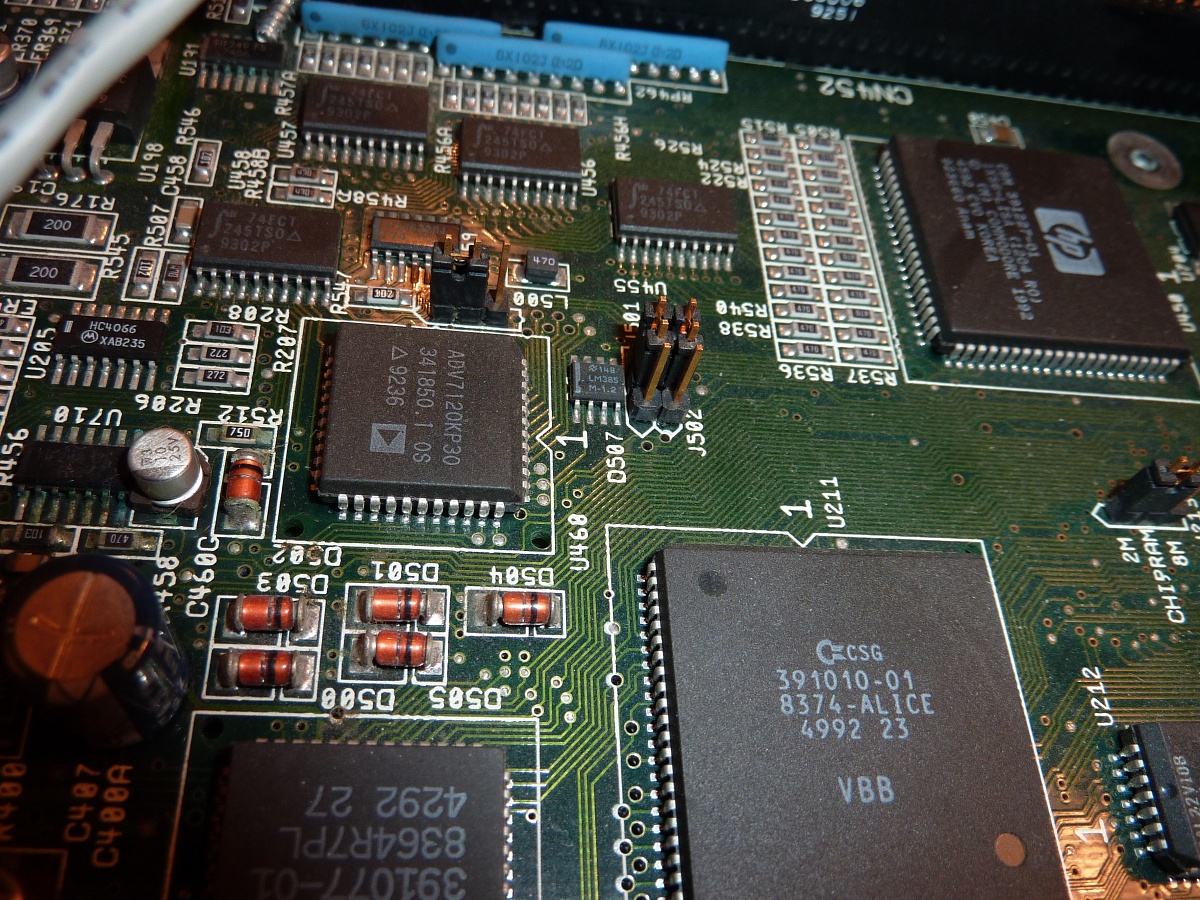

Locating those jumpers on the healthy A4000

Supersized image 07 | Supersized image 08 |

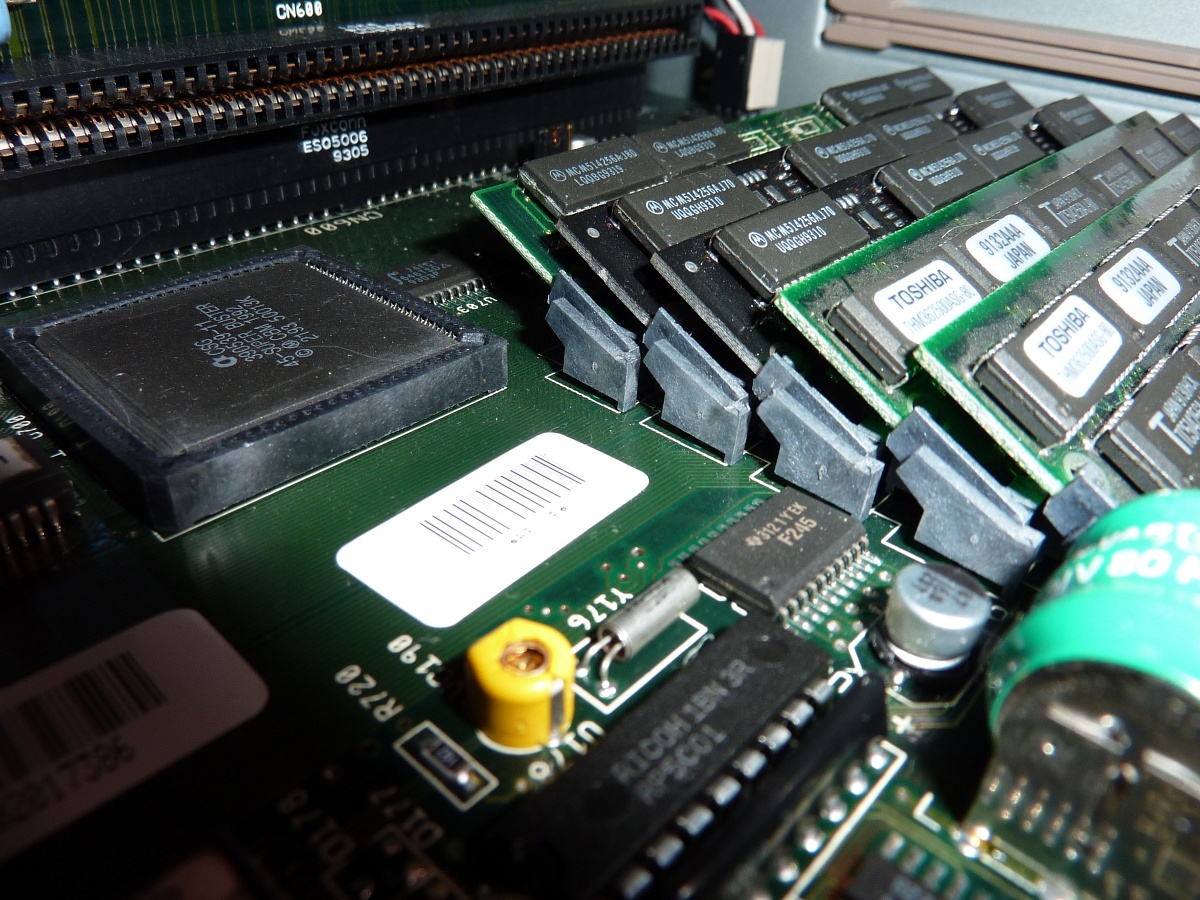

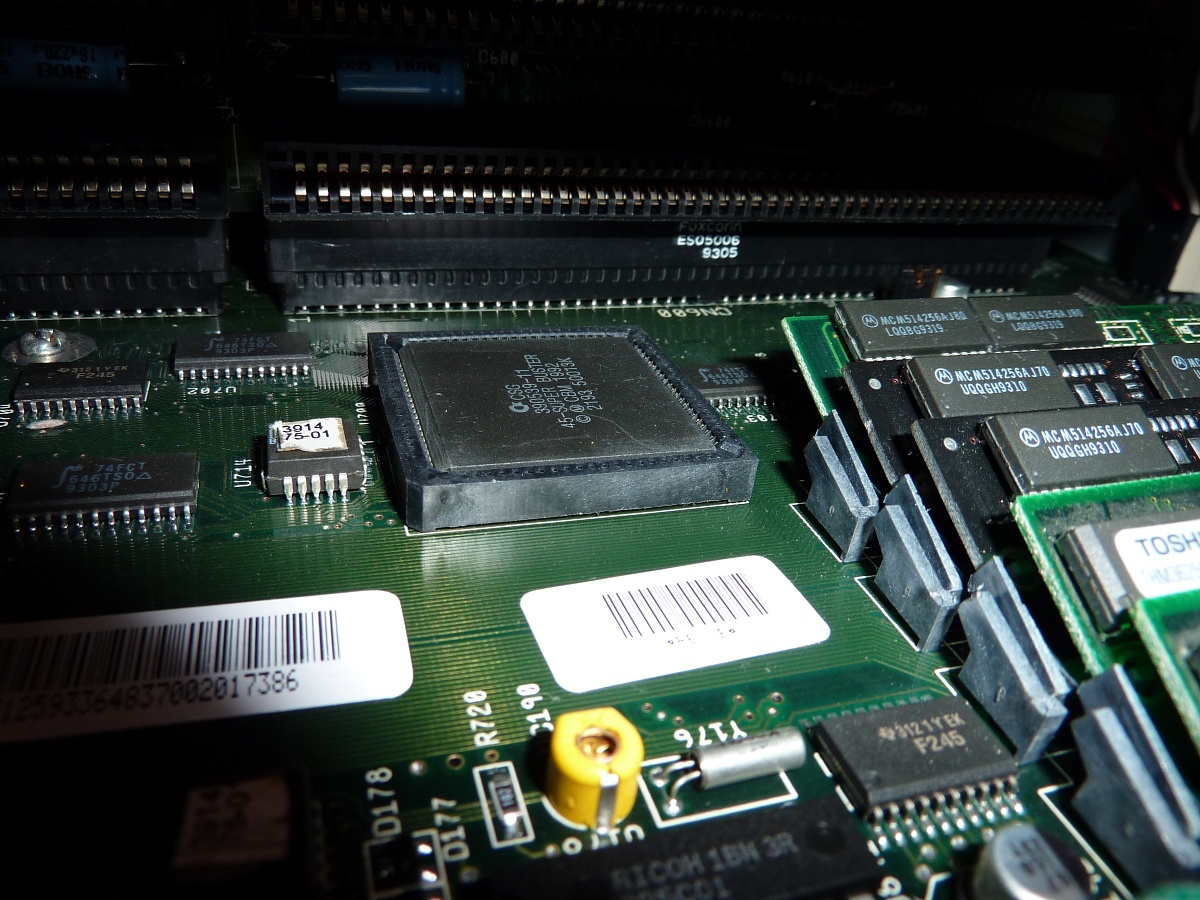

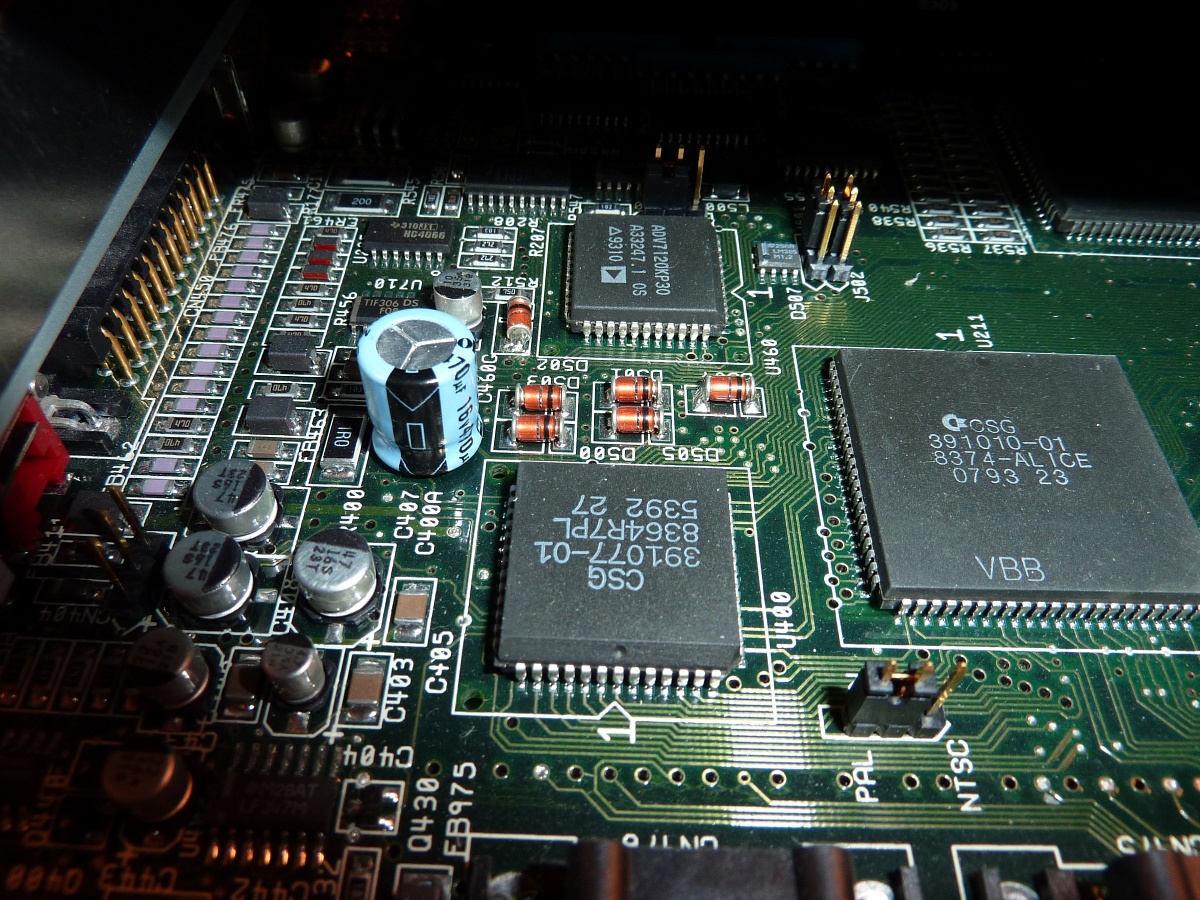

The all important SuperBuster and healthy SIMM slots

Supersized image 09 | Supersized image 10 |

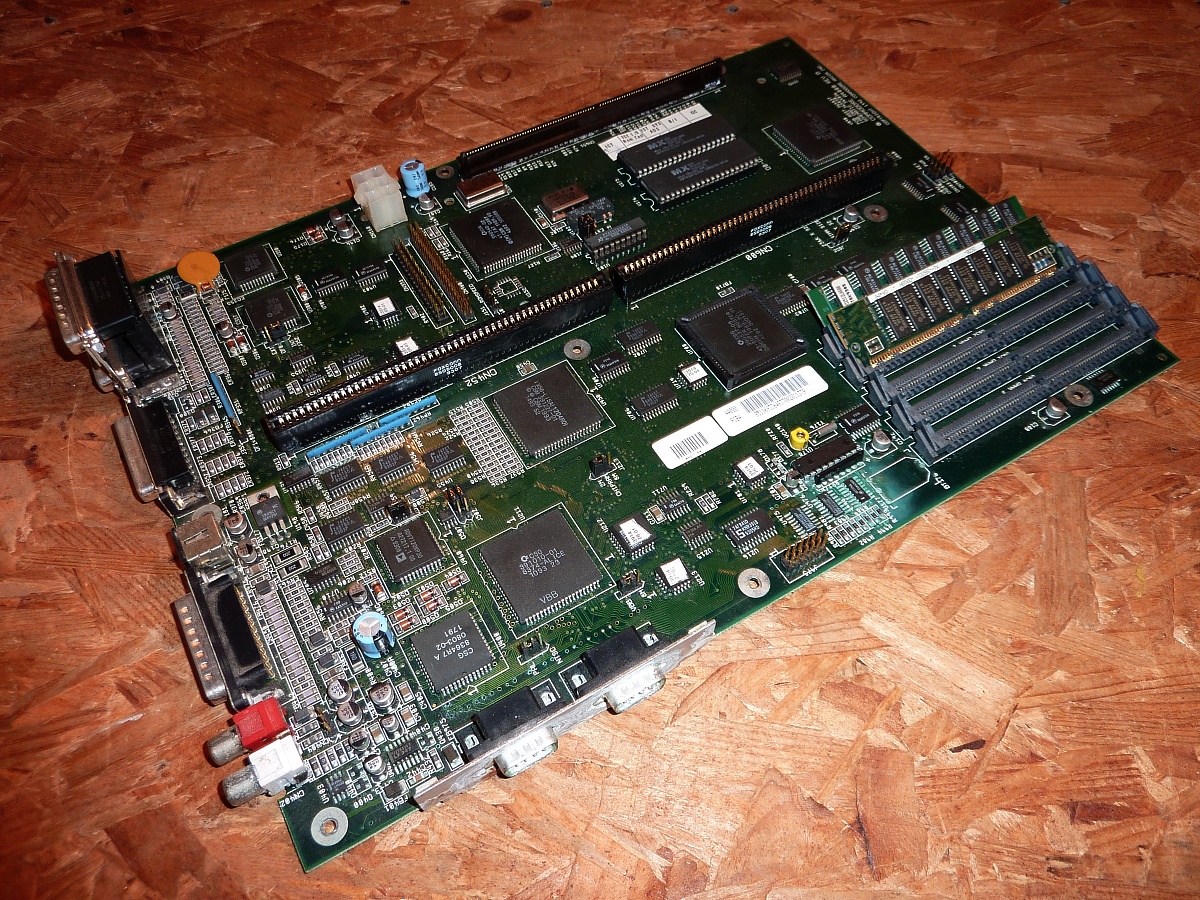

OK Enter the rather sad A4000 with various bits missing

Supersized image 11 | Supersized image 12 |

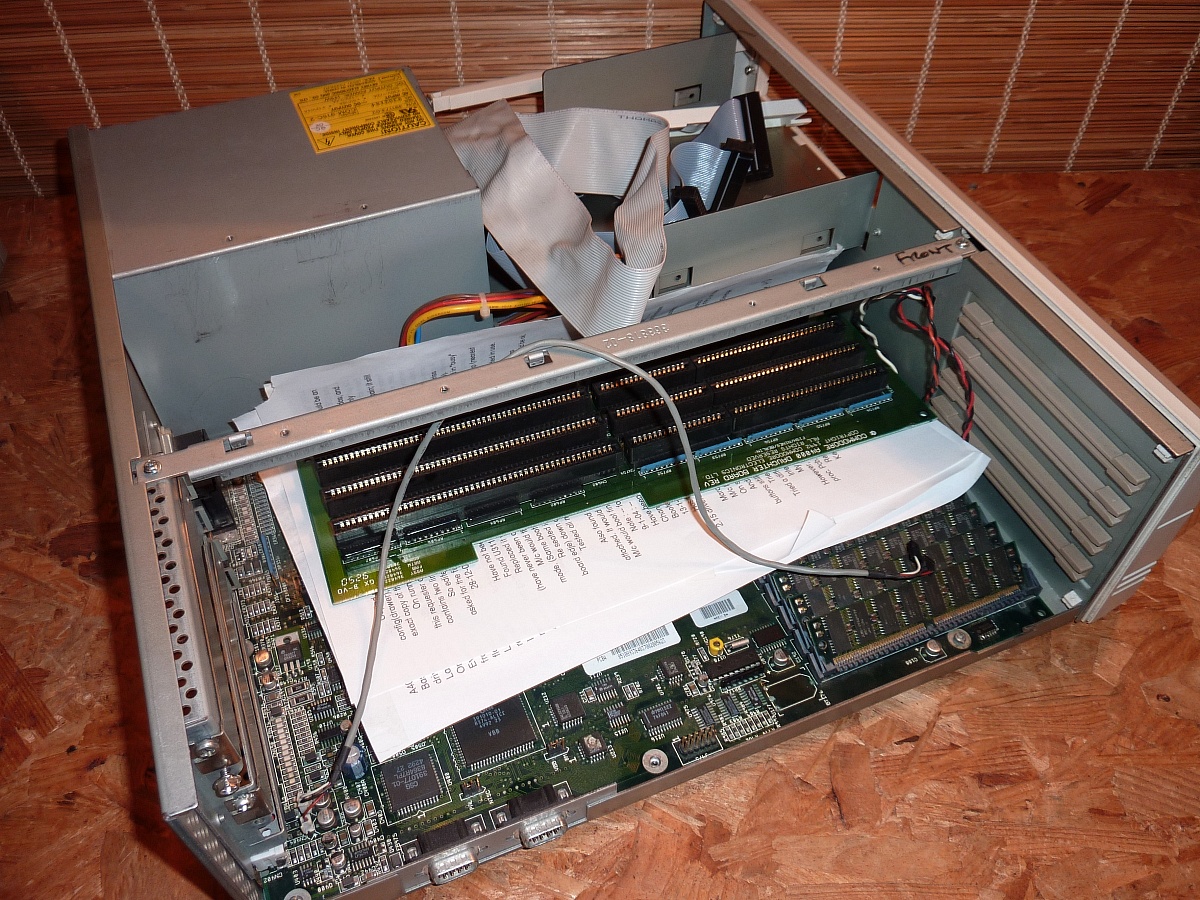

Daughter board is lying on the top of the previous users
notes on the history of the machine. There is no hard drive
or hard drive cradle. The floppy cables are loose. There is no
power connected and no CD Rom, though the front plastic cover
is inside the machine.

Most importantly there is no processor board or ROM chips
This machine is currently dead in the water

Supersized image 13 | Supersized image 14 |

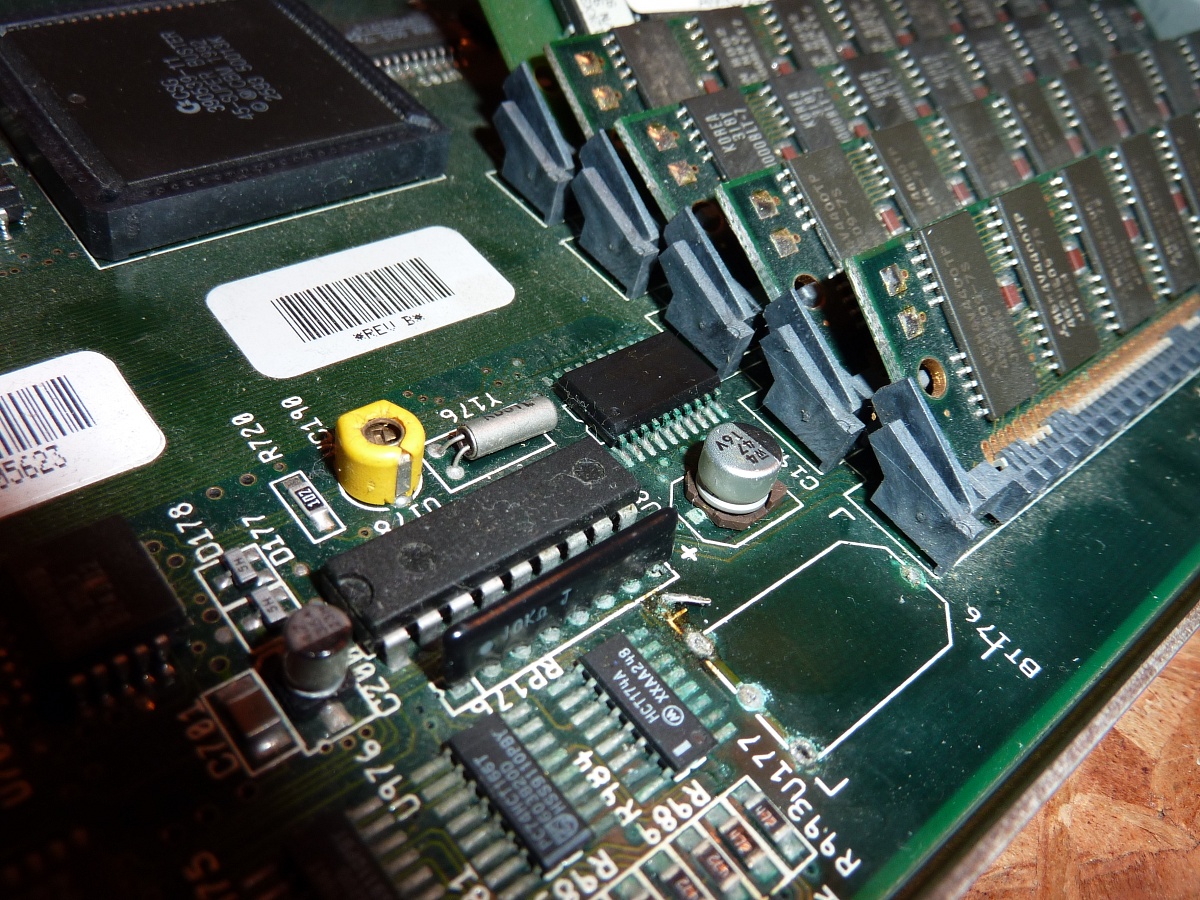

There is evidence of previous battery issues. I had already
removed the battery. The Buster is 11 so that is fine
Though, the first SIMM socket looks suspect and this will need
further attention no doubt

Supersized image 15 | Supersized image 16 |

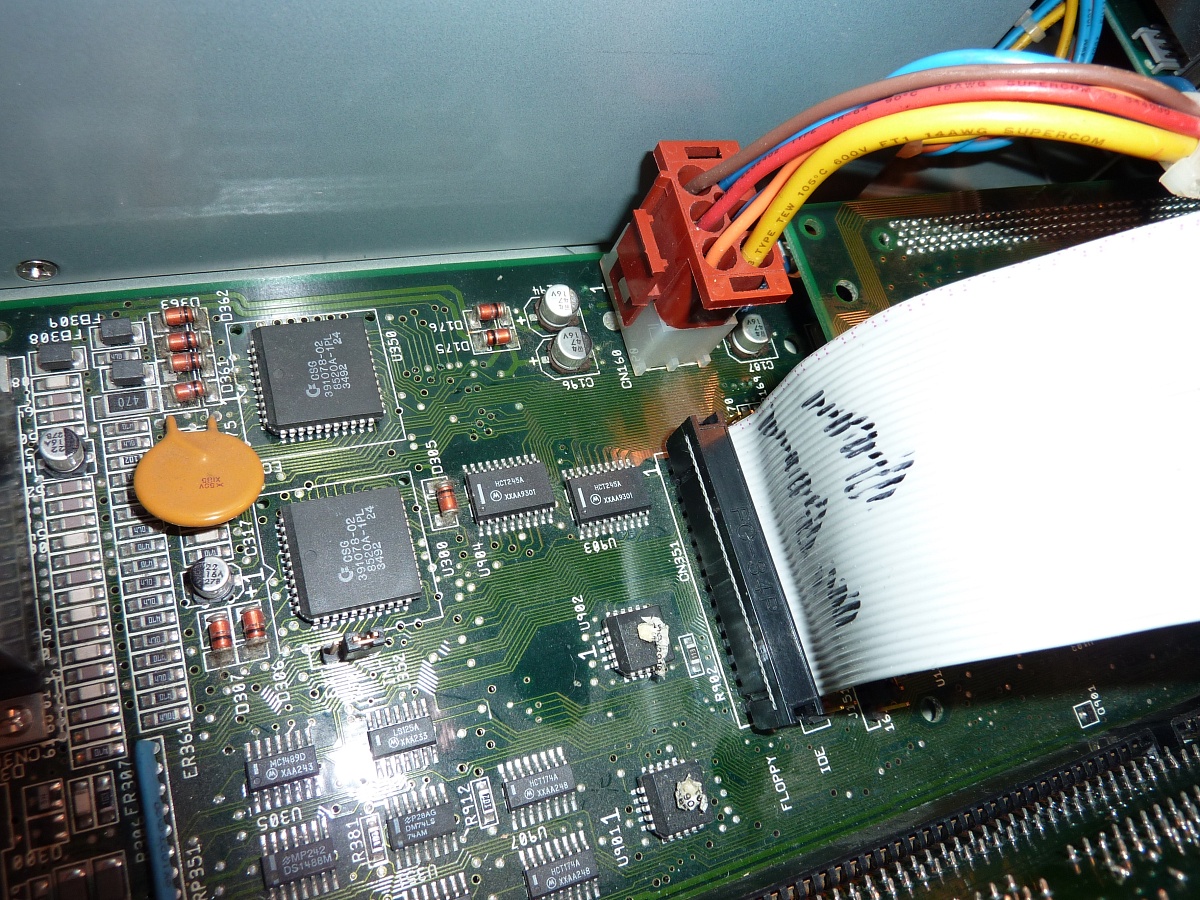

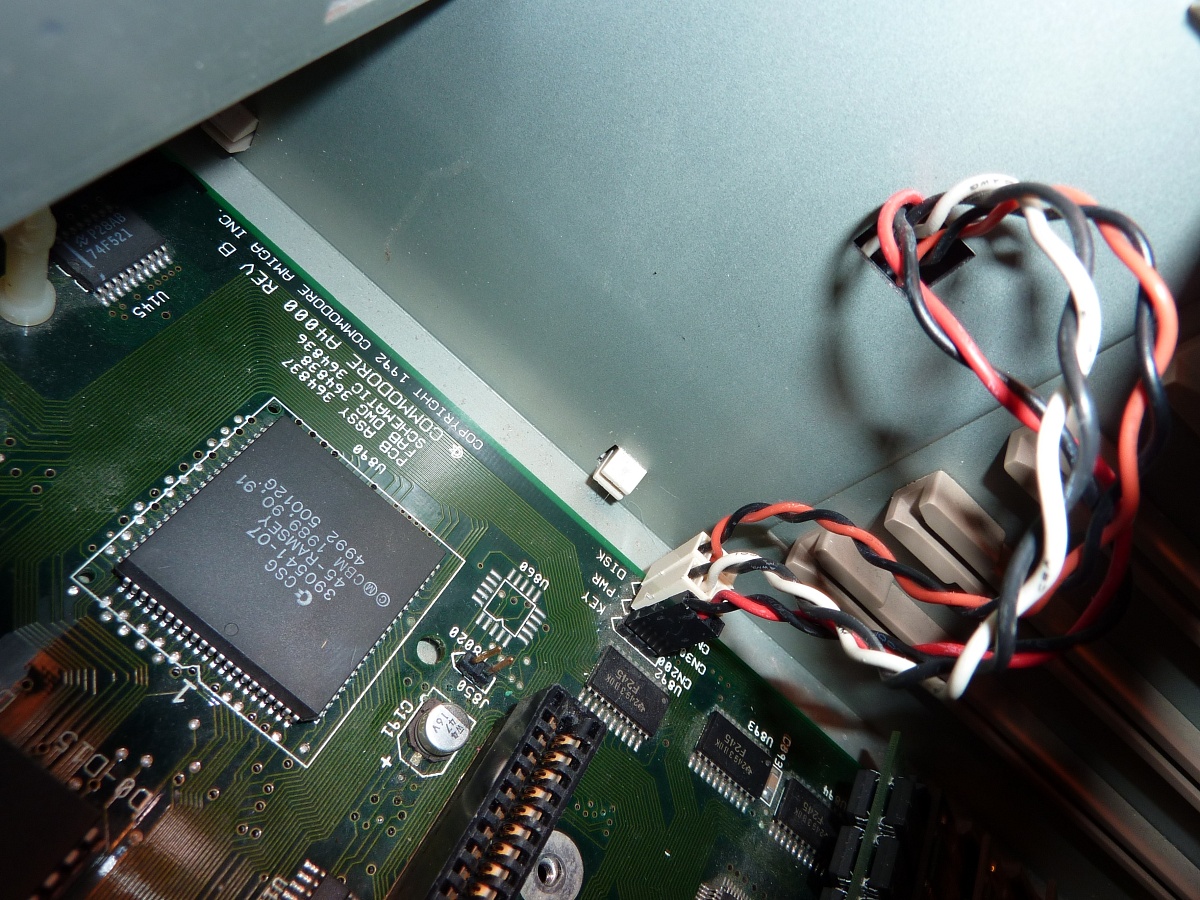

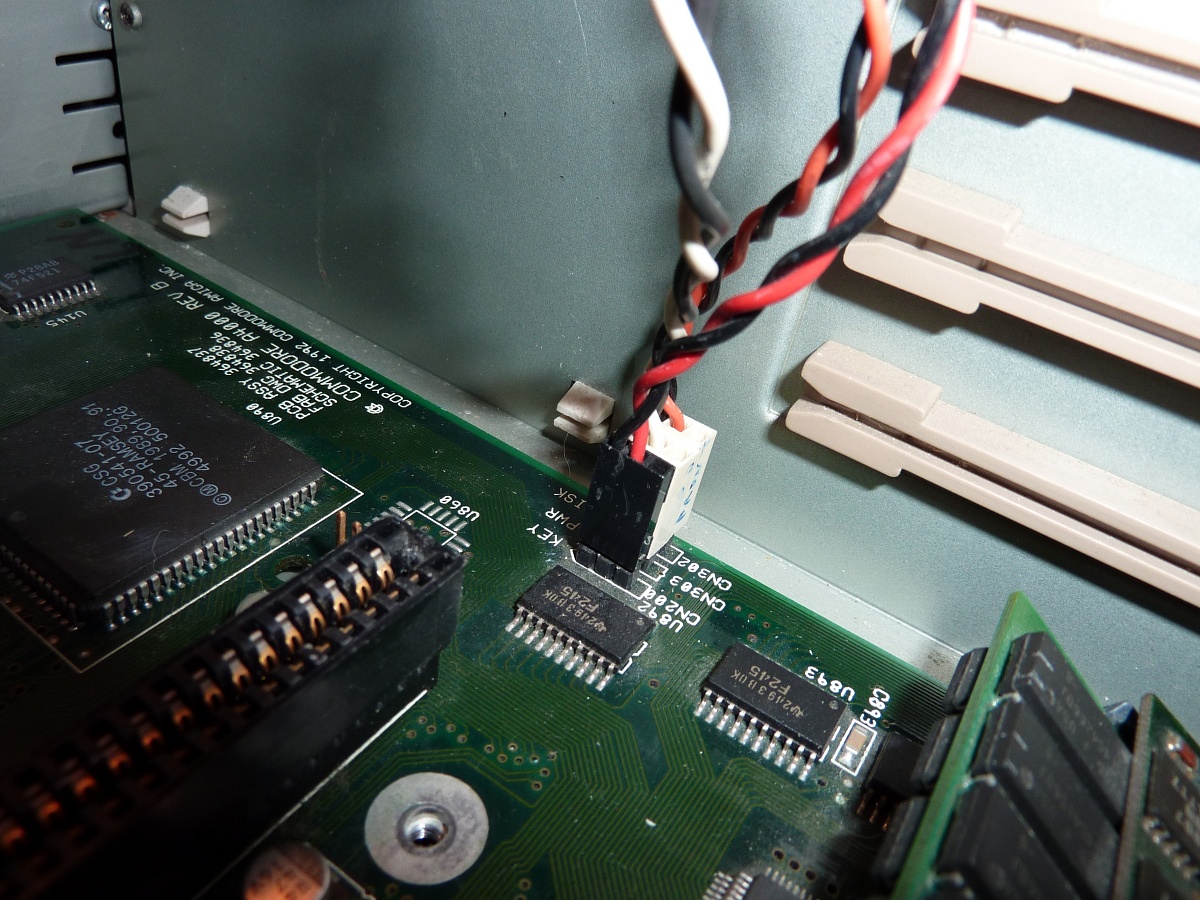

Jumper settings look fine. Note the rogue screw top left picture

Supersized image 17 | Supersized image 18 |

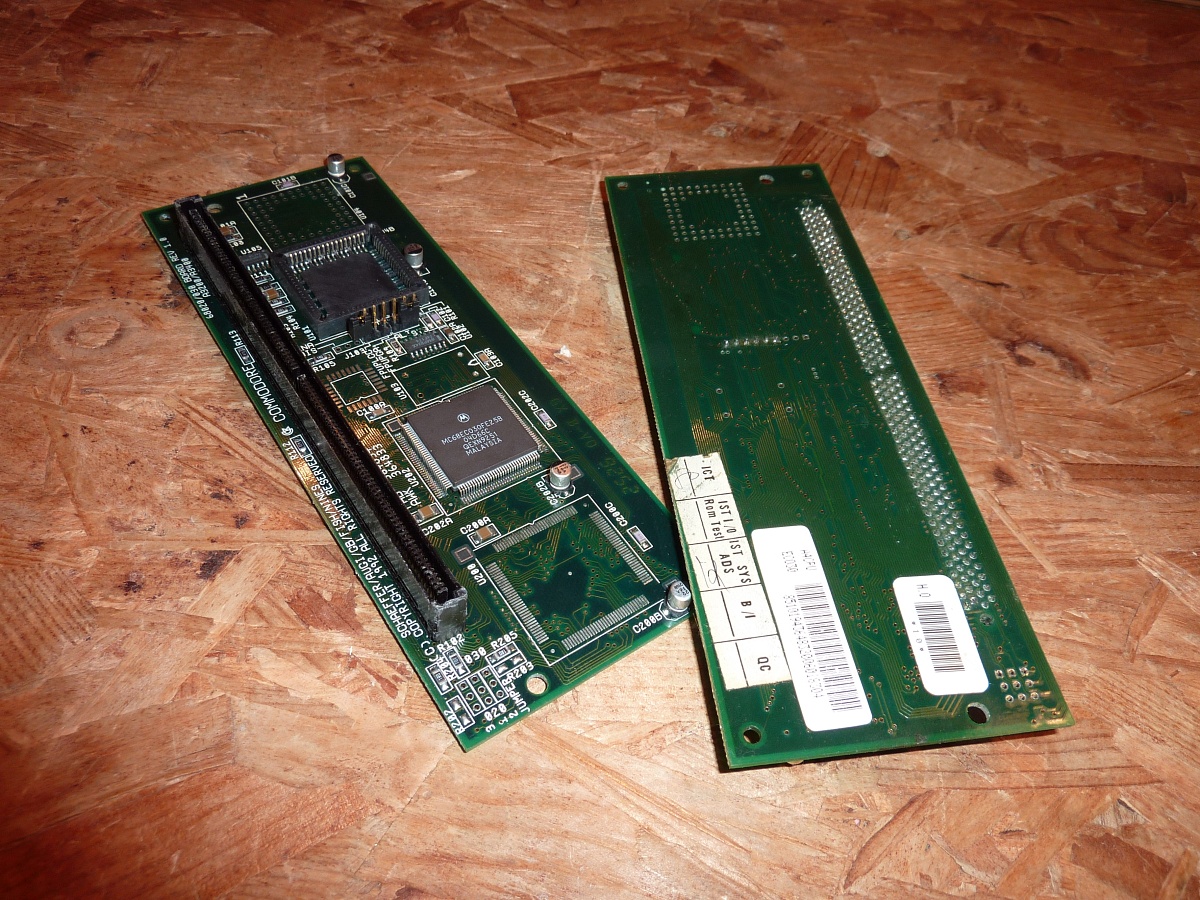

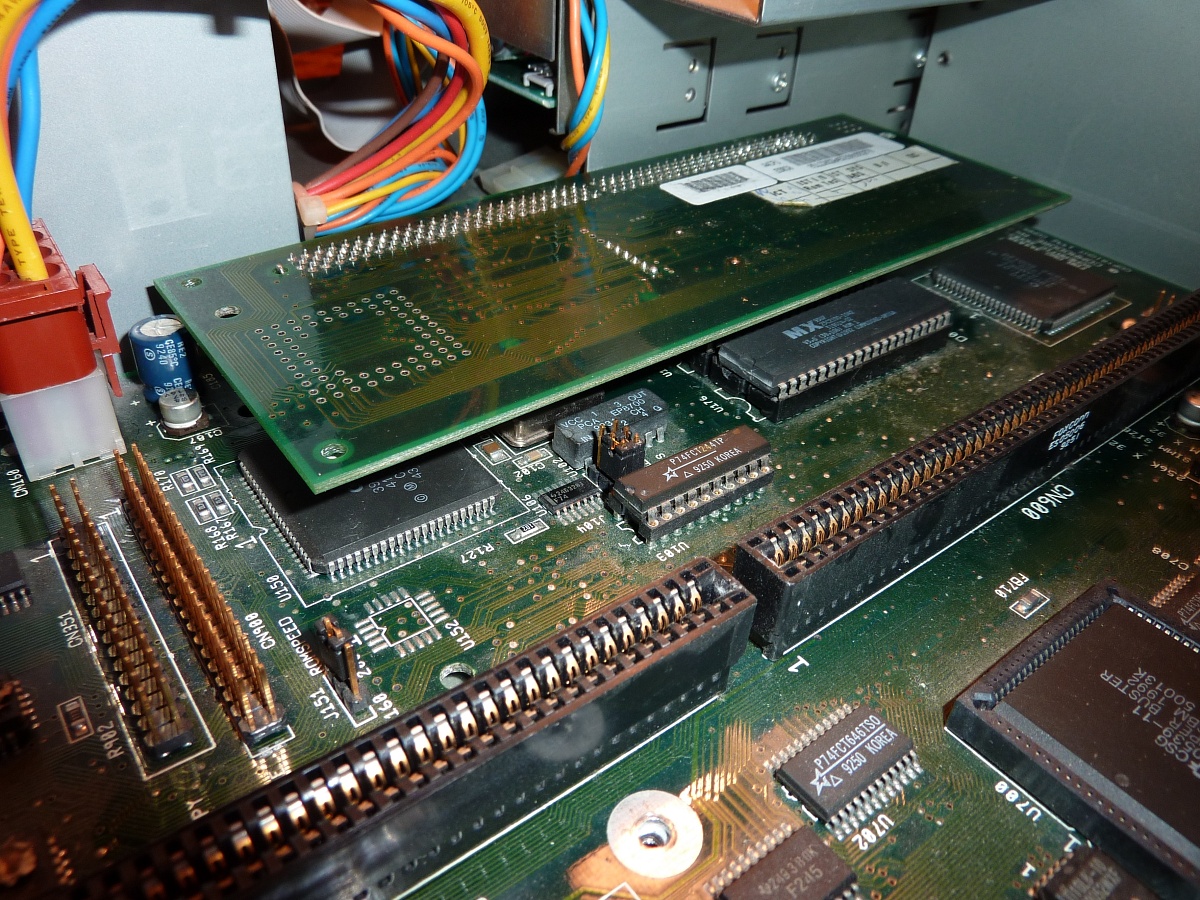

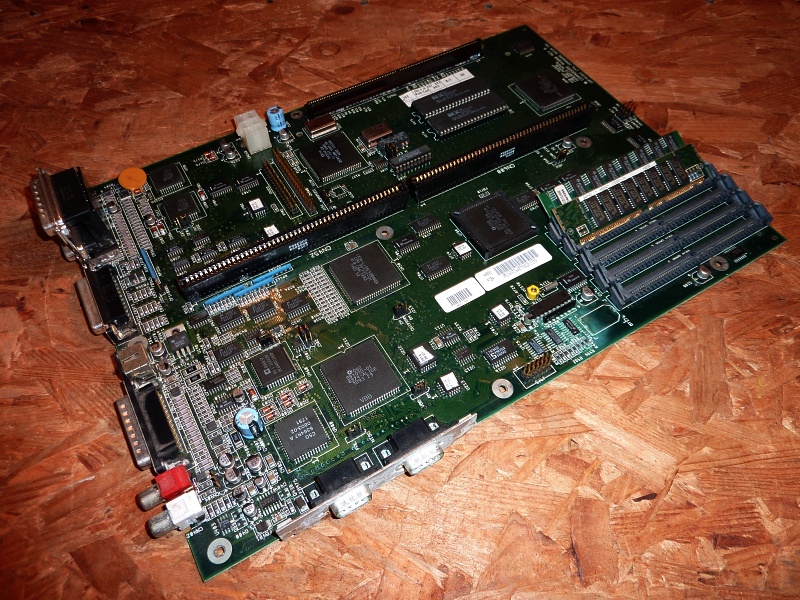

I had a couple of spare 030 processor boards handy
along with a damaged motherboard with the needed ROMs

Supersized image 19 | Supersized image 20 |

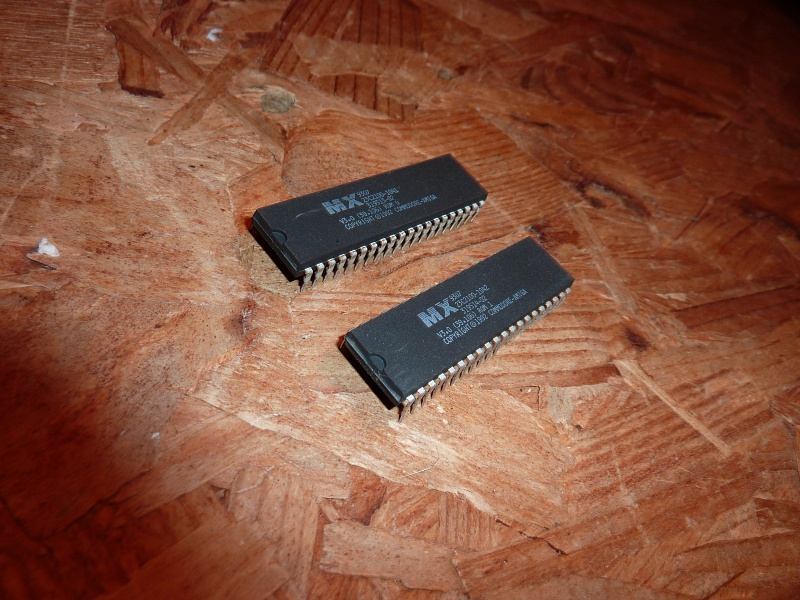

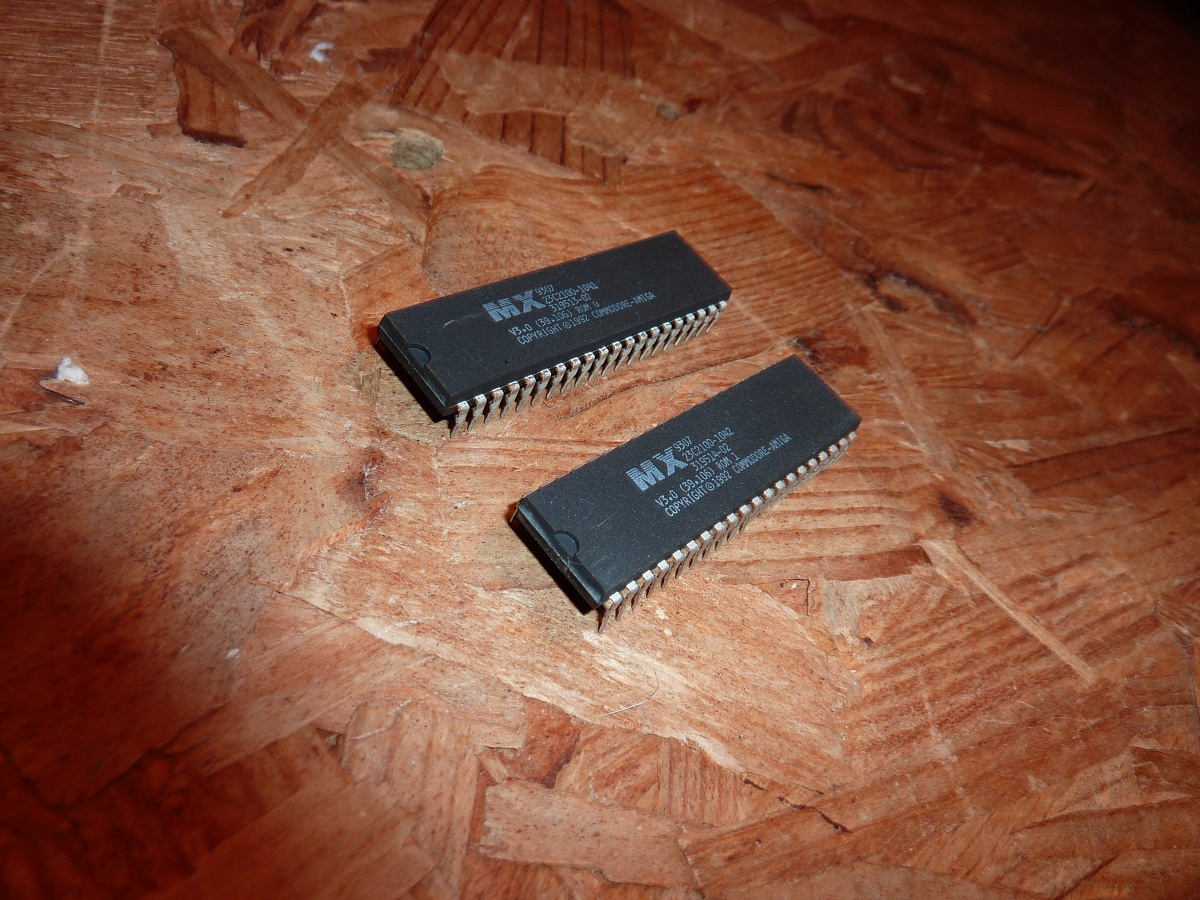

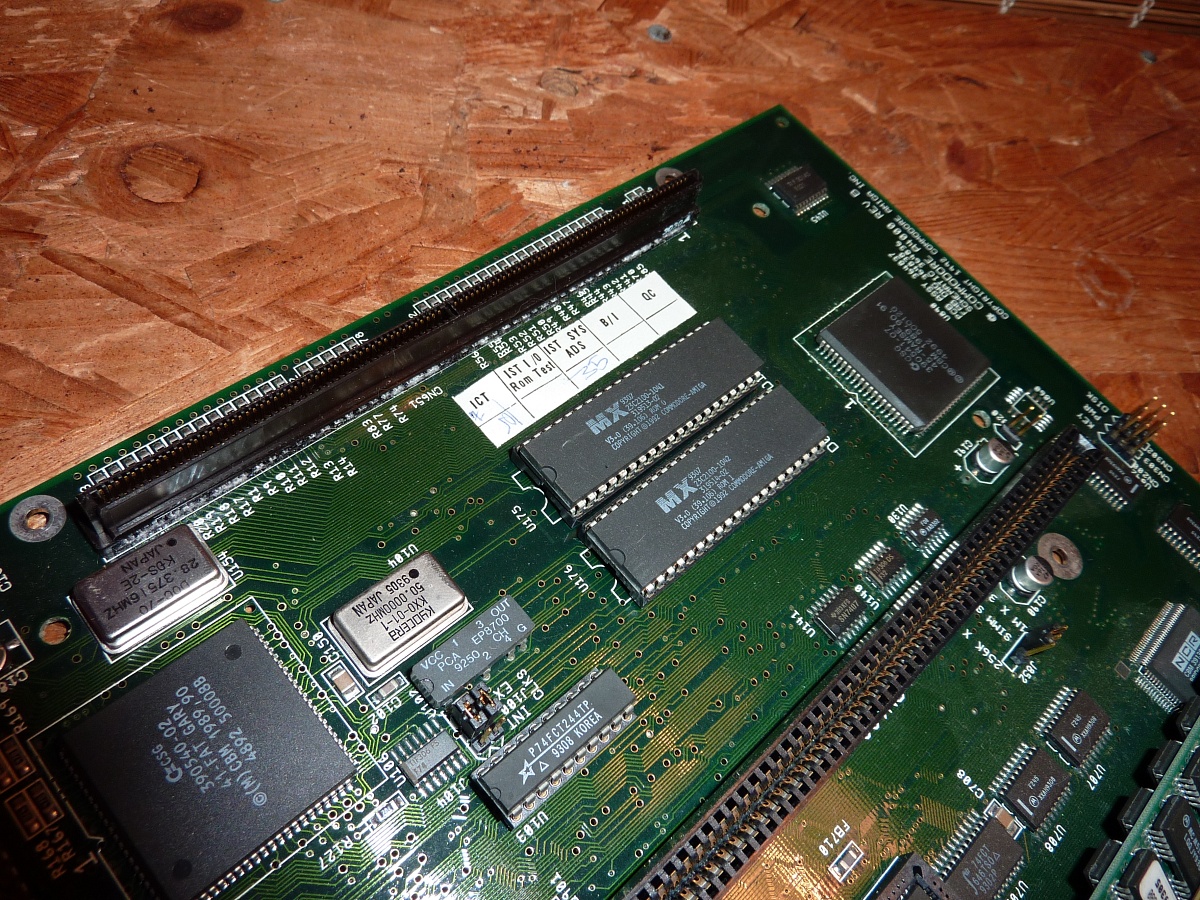

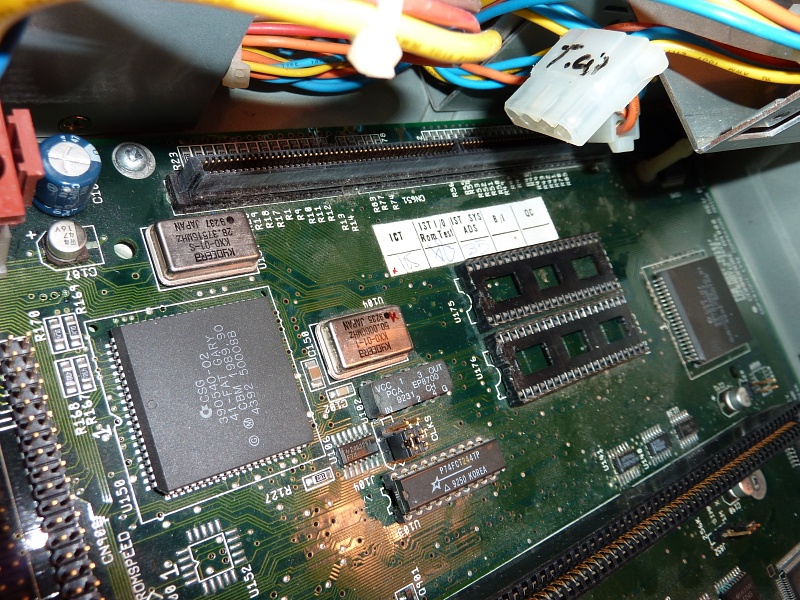

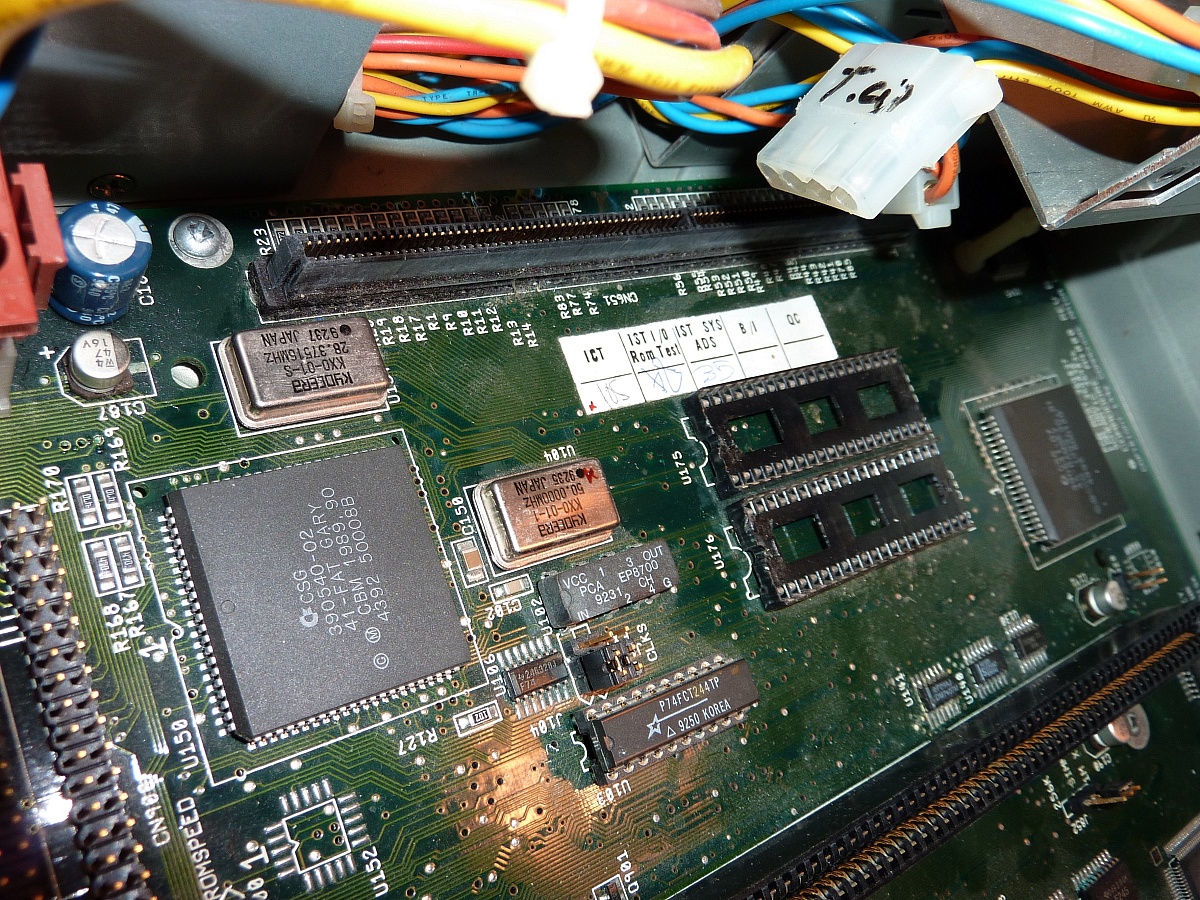

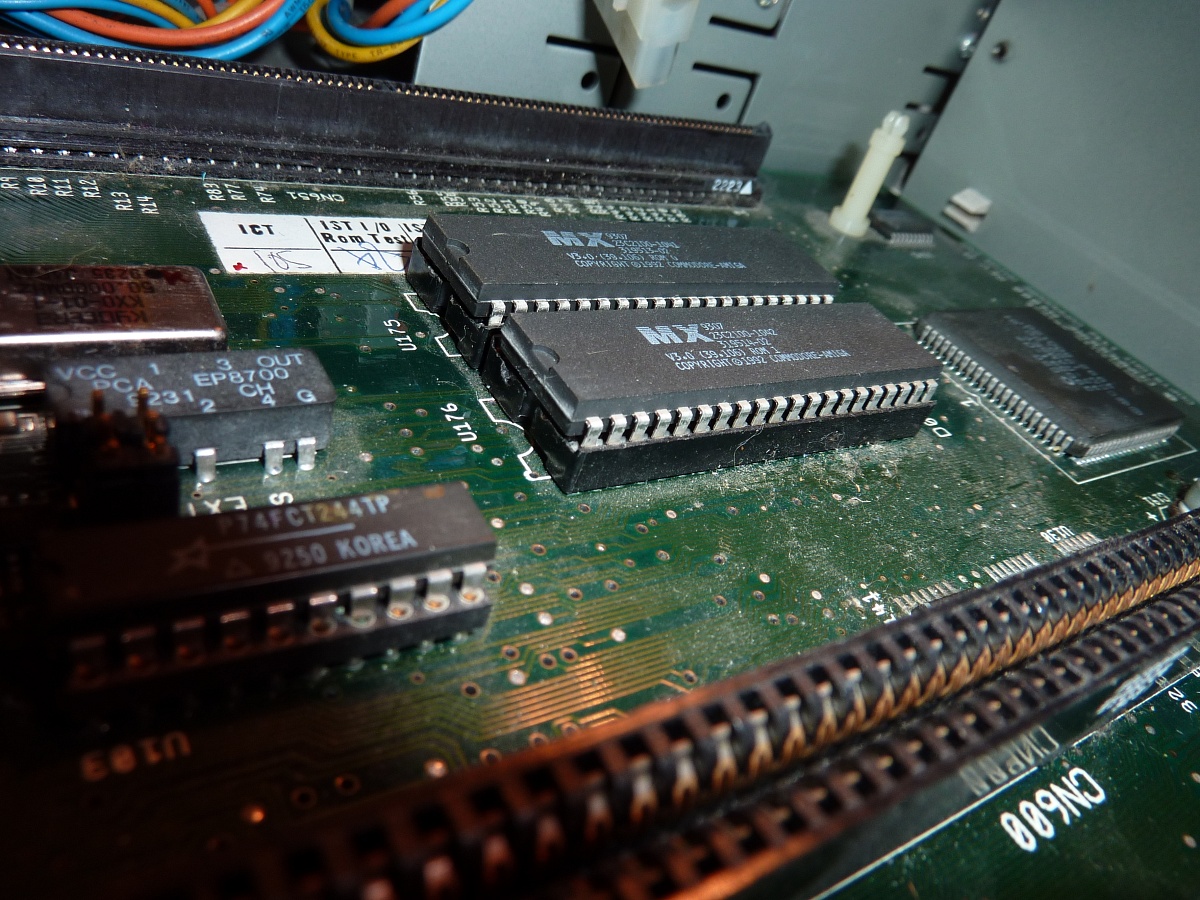

Just recording the status and location of how the ROM fit

Supersized image 21 | Supersized image 22 |

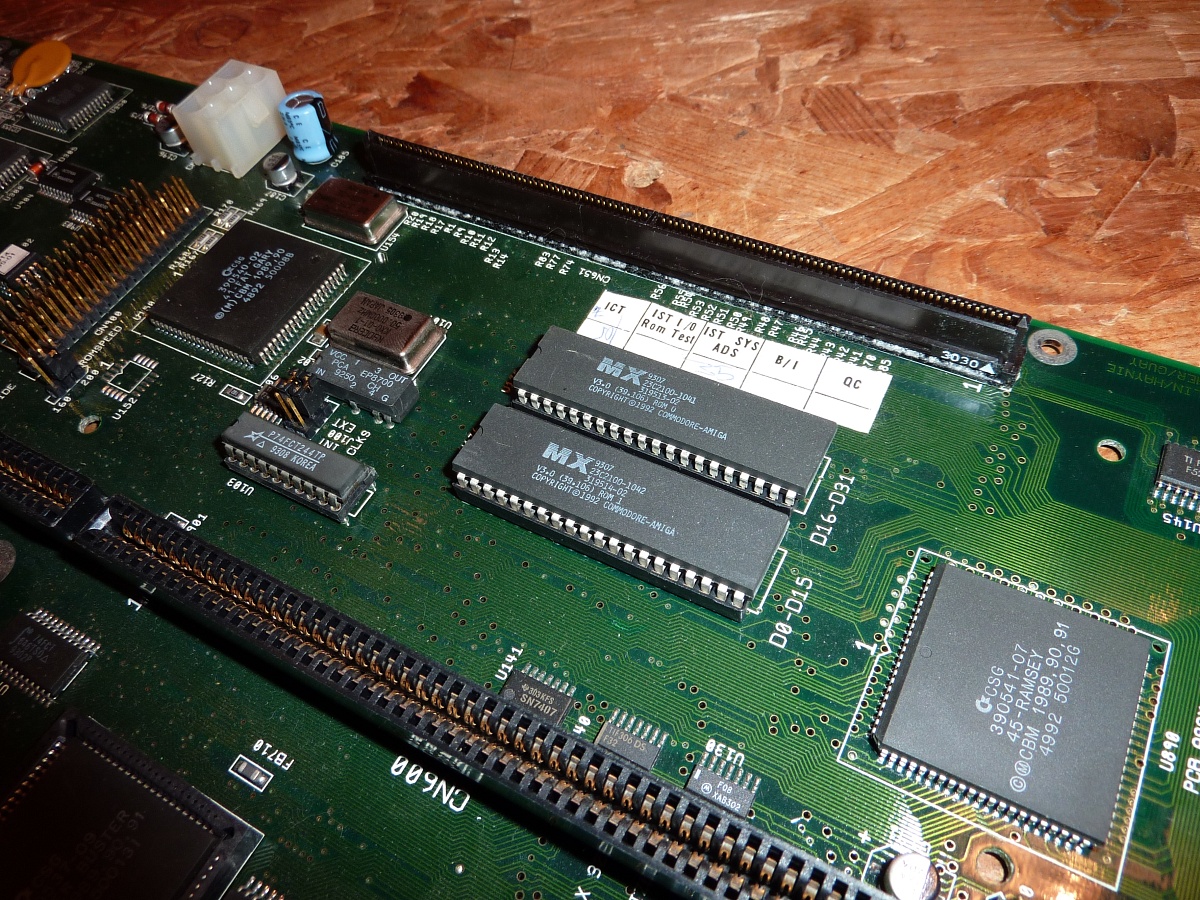

So the ROMs find there way onto the A4000 motherboard
Snug as the old bug in a rug. Fingers crossed they are working

Supersized image 23 | Supersized image 24 |

Time to re-attach those all important connectors to the motherboard

Supersized image 25 | Supersized image 26 |

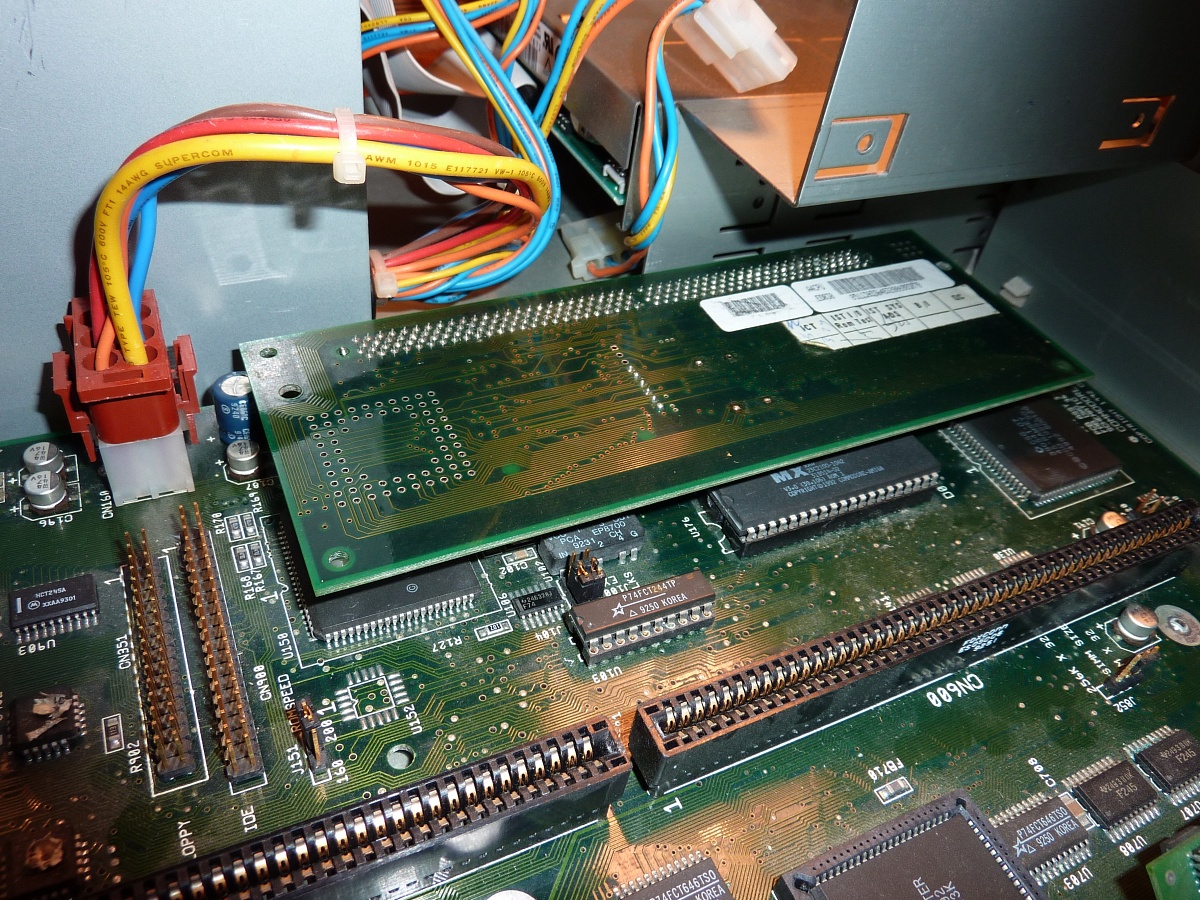

Next up I reconnected the power supply and processor board

Supersized image 27 | Supersized image 28 |

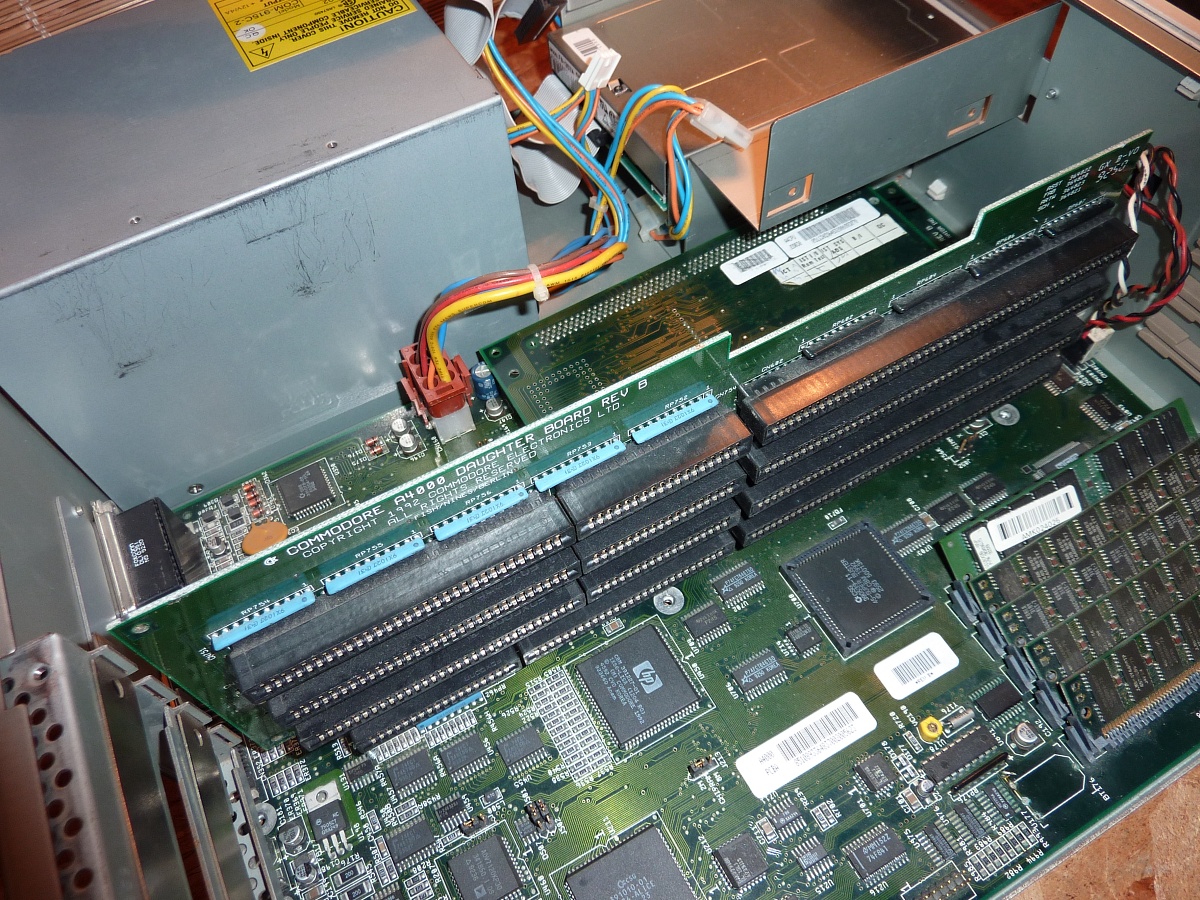

In goes the daughterboard and floppy disk ribbon. I also
reconnected power to the floppy drive. Sadly no hard drive
cradle at this time so that will have to wait...

Supersized image 29 | Supersized image 30 |

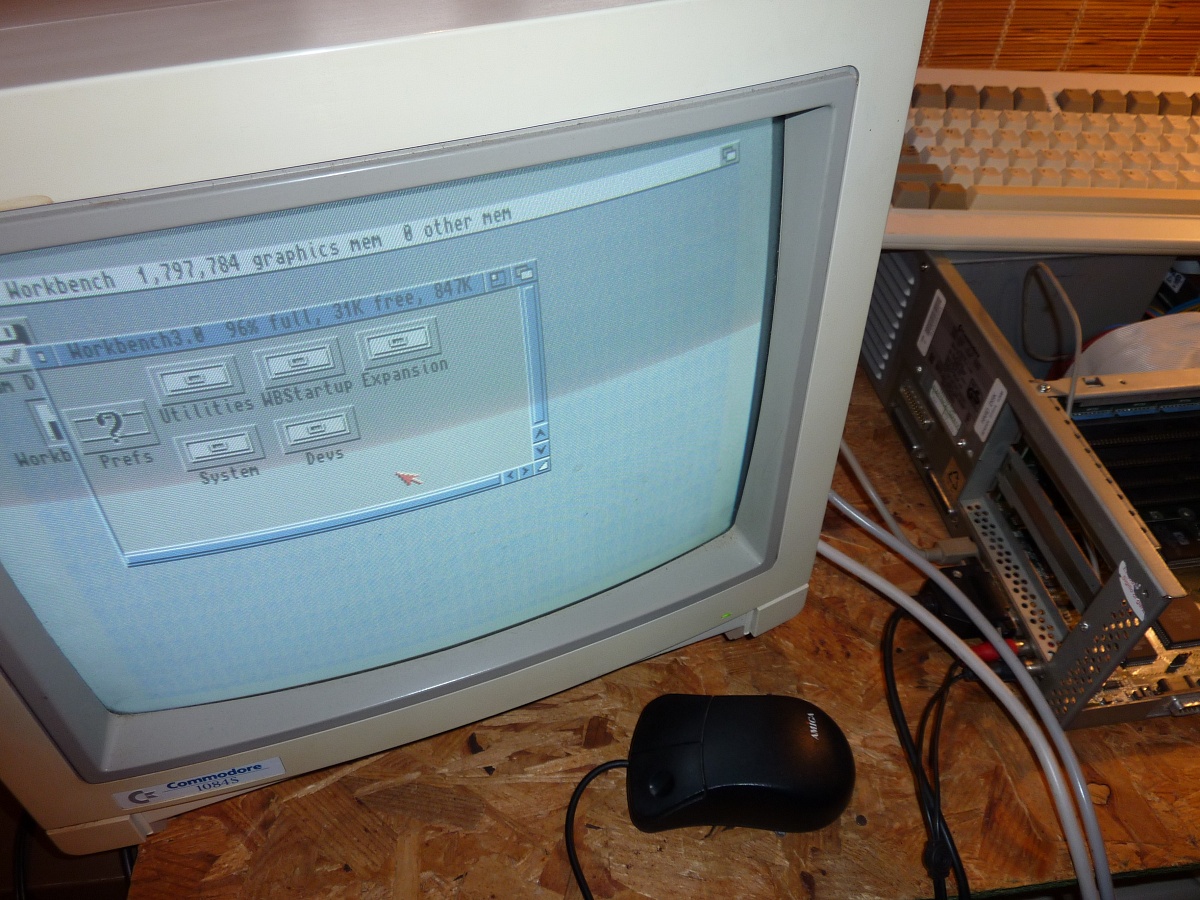

And fired up first time... Not without problems though
Unfortunately the mouse only works from the buttons
and there is something very wrong with the memory on
this machine. Saying that, the signs are very good
that another A4000D will return soon fully functioning

Entry 1003: Blog: 2

Link to www.commodoreusa.net

CPU SUPPORT
Intel® CoreTM 2 Duo, Intel® CoreTM 2 Quad @ 1333MHz
FSB LGA775 up to 95W. Intel® Pentium® D Processors
with Hyper-Threading Technology, Intel® Celeron® D
processor, support from 1.3GHz ~ 3.4GHz 1333MHz System
Bus. Supporting 9x, 5x & 6x series processors with EM64T.

MOTHERBOARD
Intel G31 Express Chipset

CORE LOGIC MEMORY
2xDDR2 SDRAM sockets, populated up to 4GB. Supports
PC2-5300 667MHz & PC2- 6400 800MHz.

HDD SUPPORT
Integrated Serial ATA controller facilitates high-speed
transfers at up to 3Gbps for each of the four ports.
Allows easier hard drive upgrades and expansion for new
SATA optical drives. 2x SATA2 ports.

VIDEO & GRAPHICS
Intel® Graphics Media Accelerator 3100. 3D enhancements
enable greater flexibility and scalability and improved
realism with support for Microsoft DirectX 9.0c Shader
Model 2.0, OpenGL 1.4. Intel® Graphics also support the
highest levels of the Windows 7 Aero experience. Stunning
media, incredible visuals and new 3D capabilities. For
business users, Intel validates the chipset, processor,
graphics and software stack to provide a well-tested
platform with support for Microsoft* Windows 7,Vista,
Windows* XP, Linux (top distributions) and OS/2 (SciTech).
Dynamic Video Memory Technology (DVMT) 3.0 supports up to
289MB of Shared Video Memory;system memory is allocated
where it is needed dynamically. Supports built-in Dual/
Multi-Monitor windows displays using LCD monitor & DVI
external display.

End quote

Knew it was too good to be true.. Turns out it is simply
a rebadged machine sold by Cybernet - ZPC-GX31

Link to Cybernet

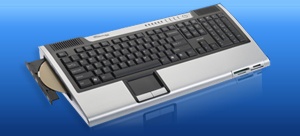

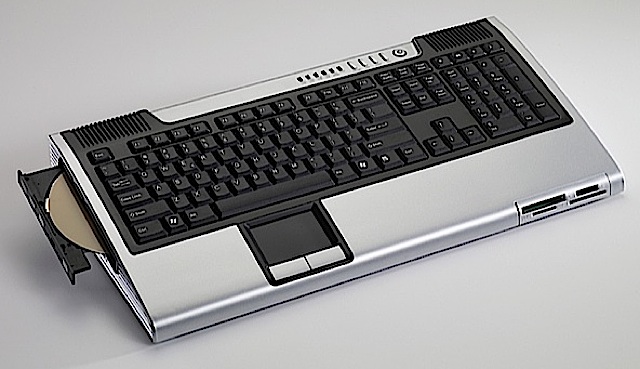

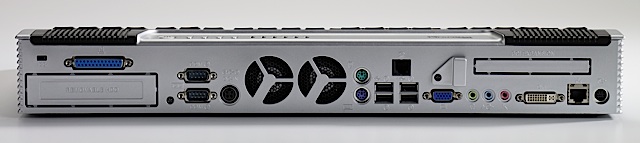

Images of the supposed New Commodore ...
