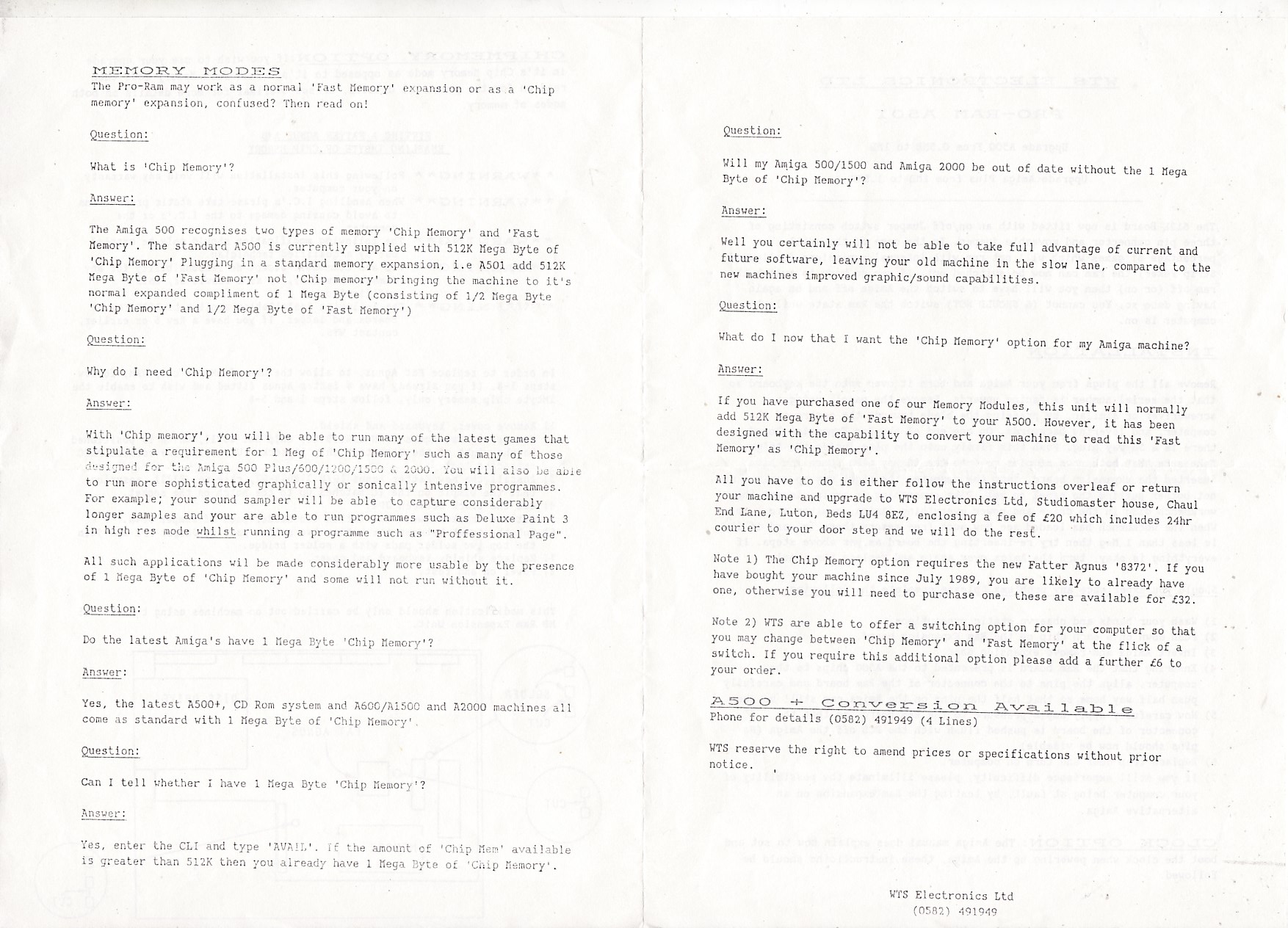

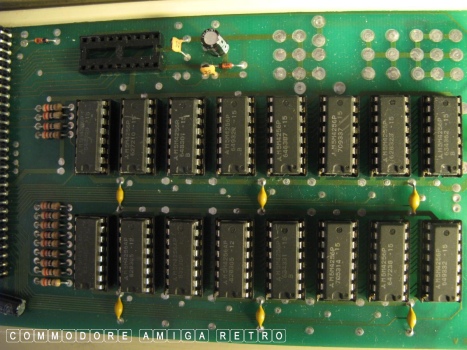

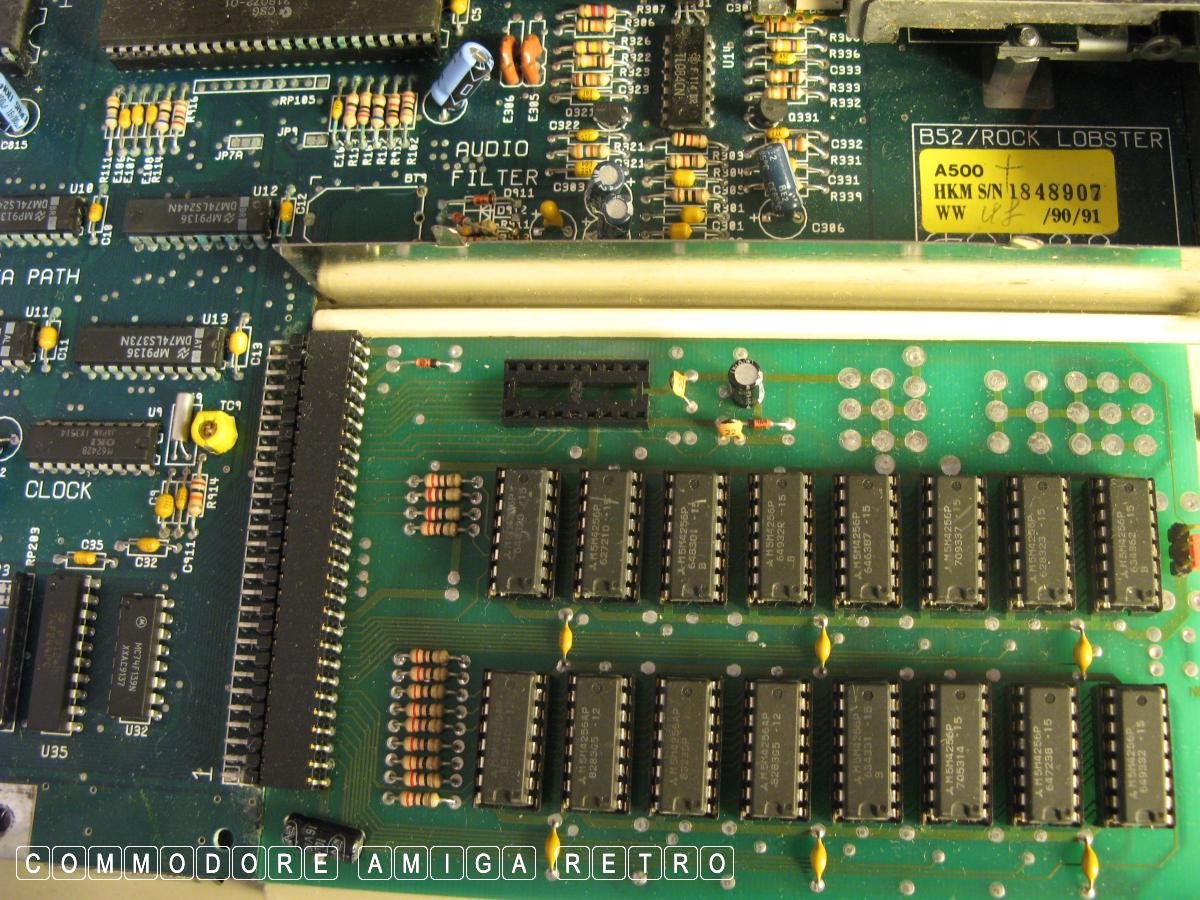

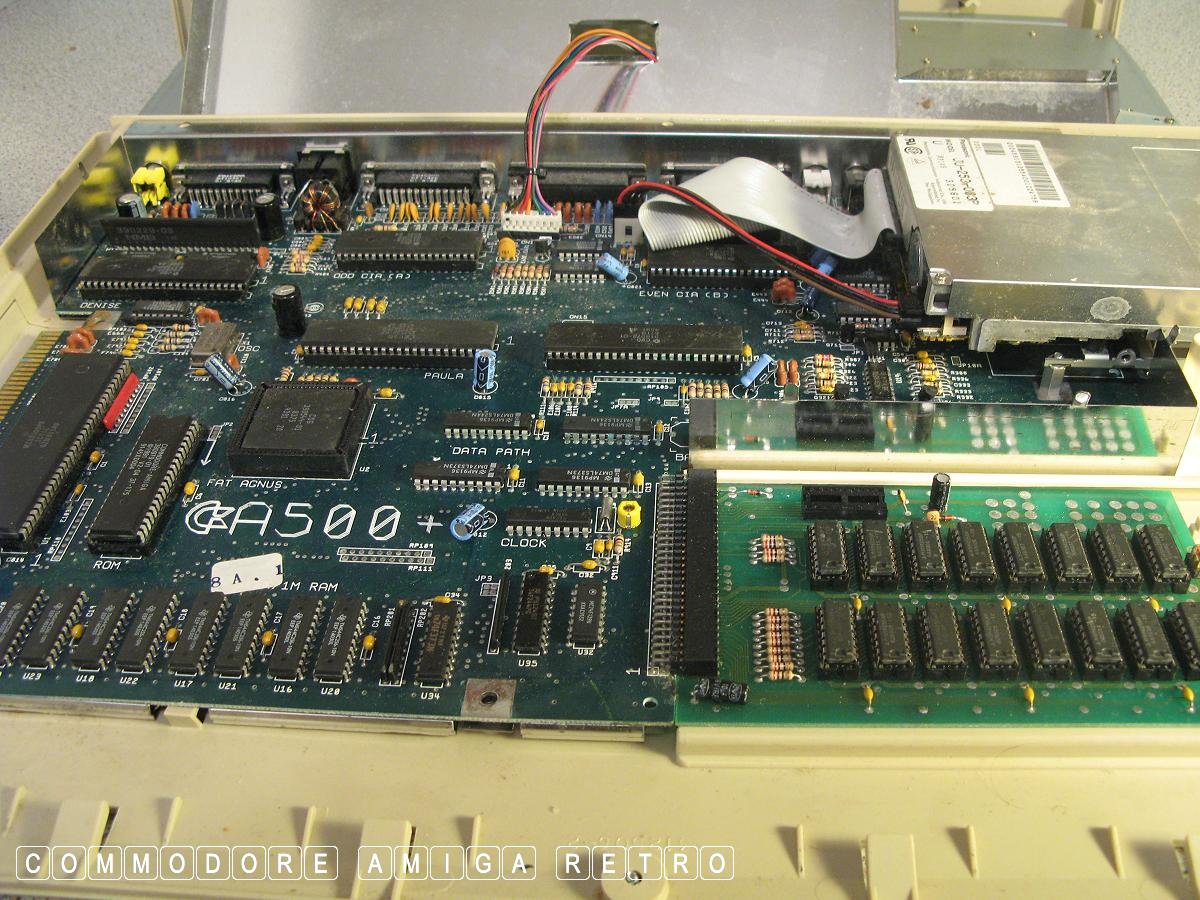

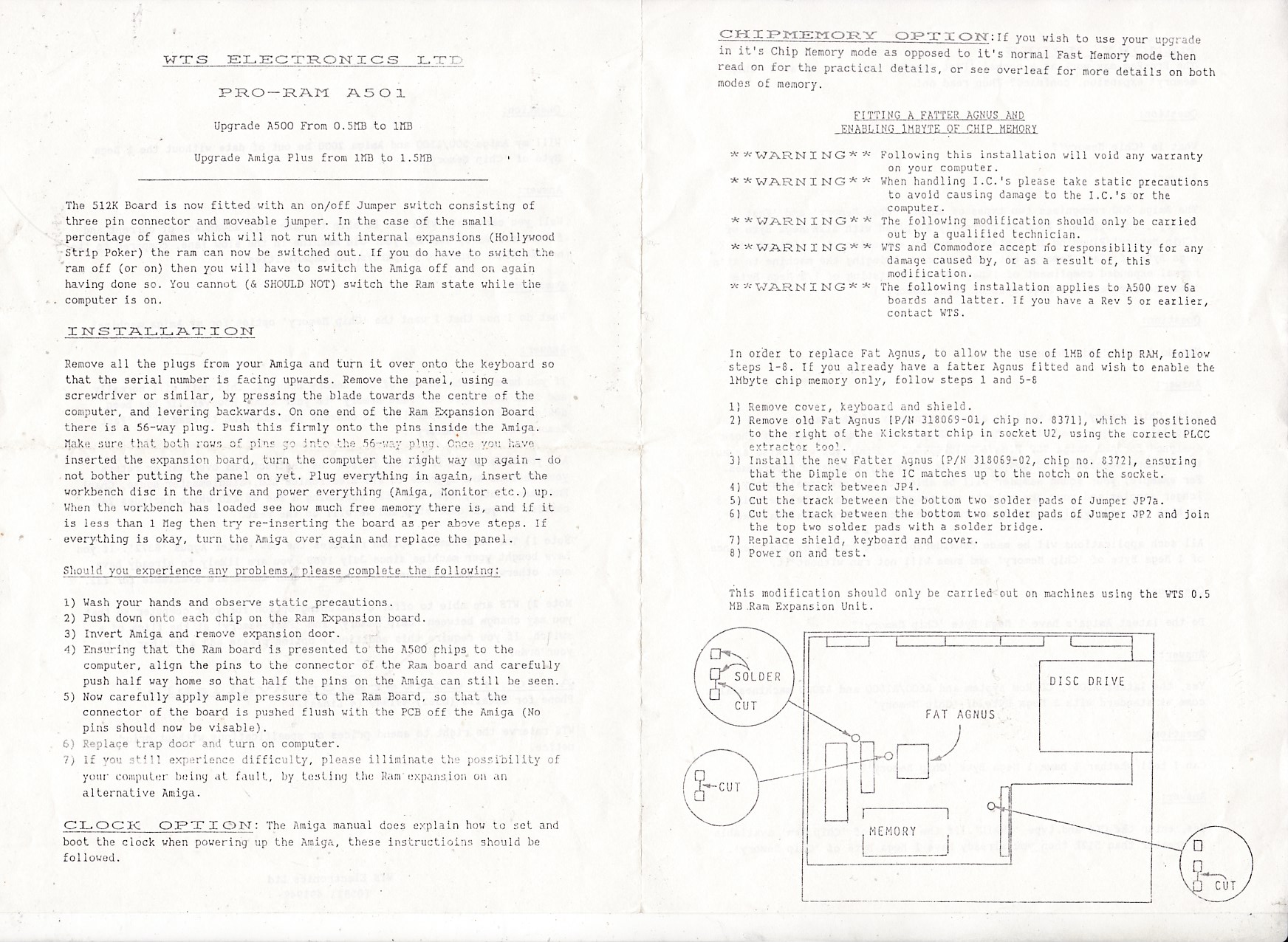

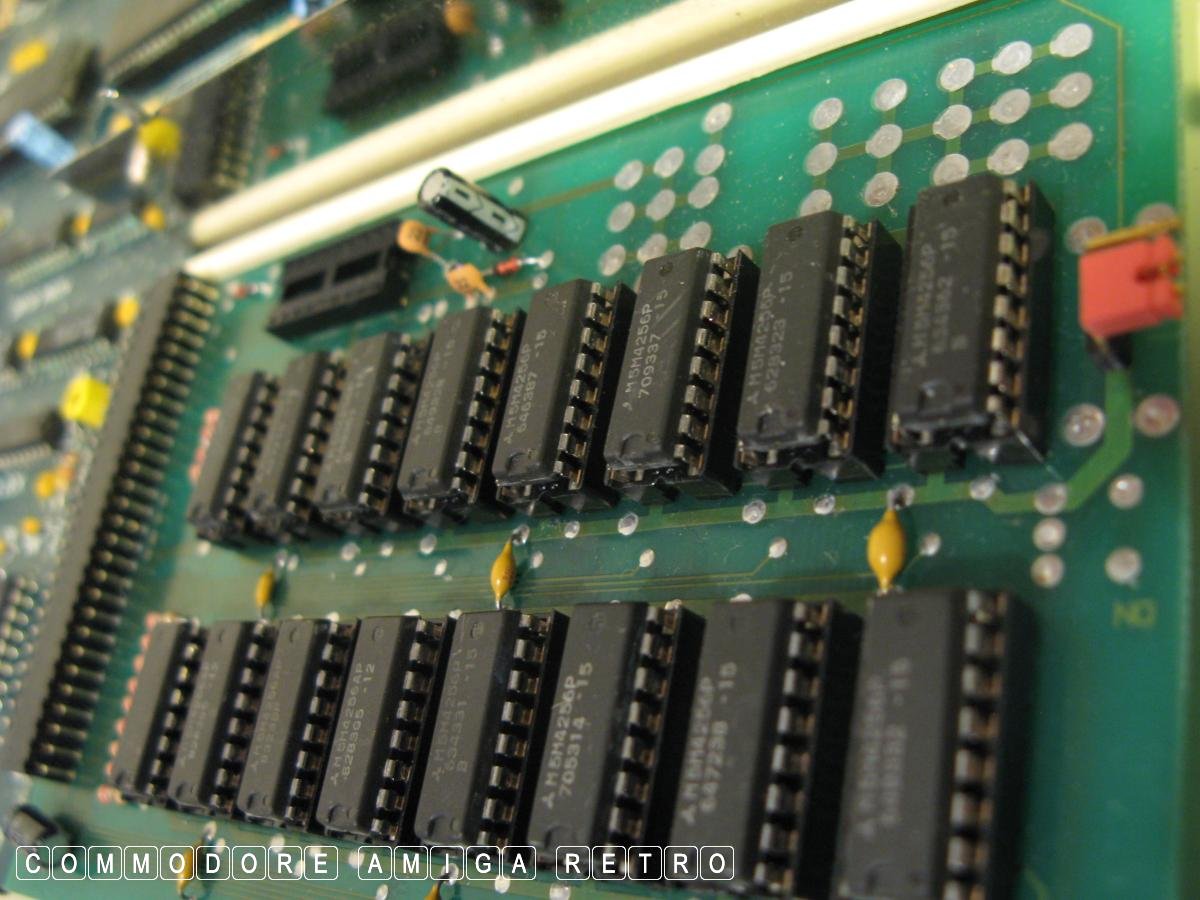

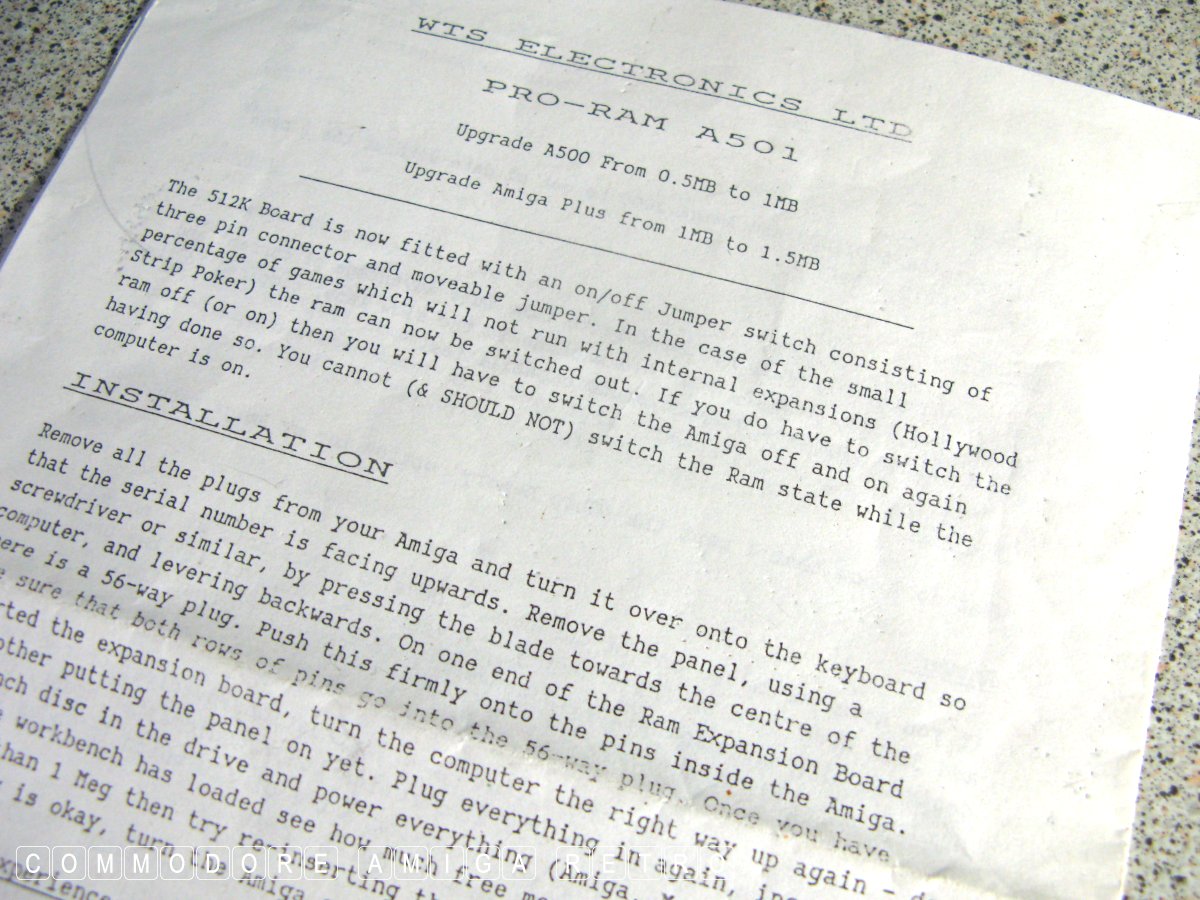

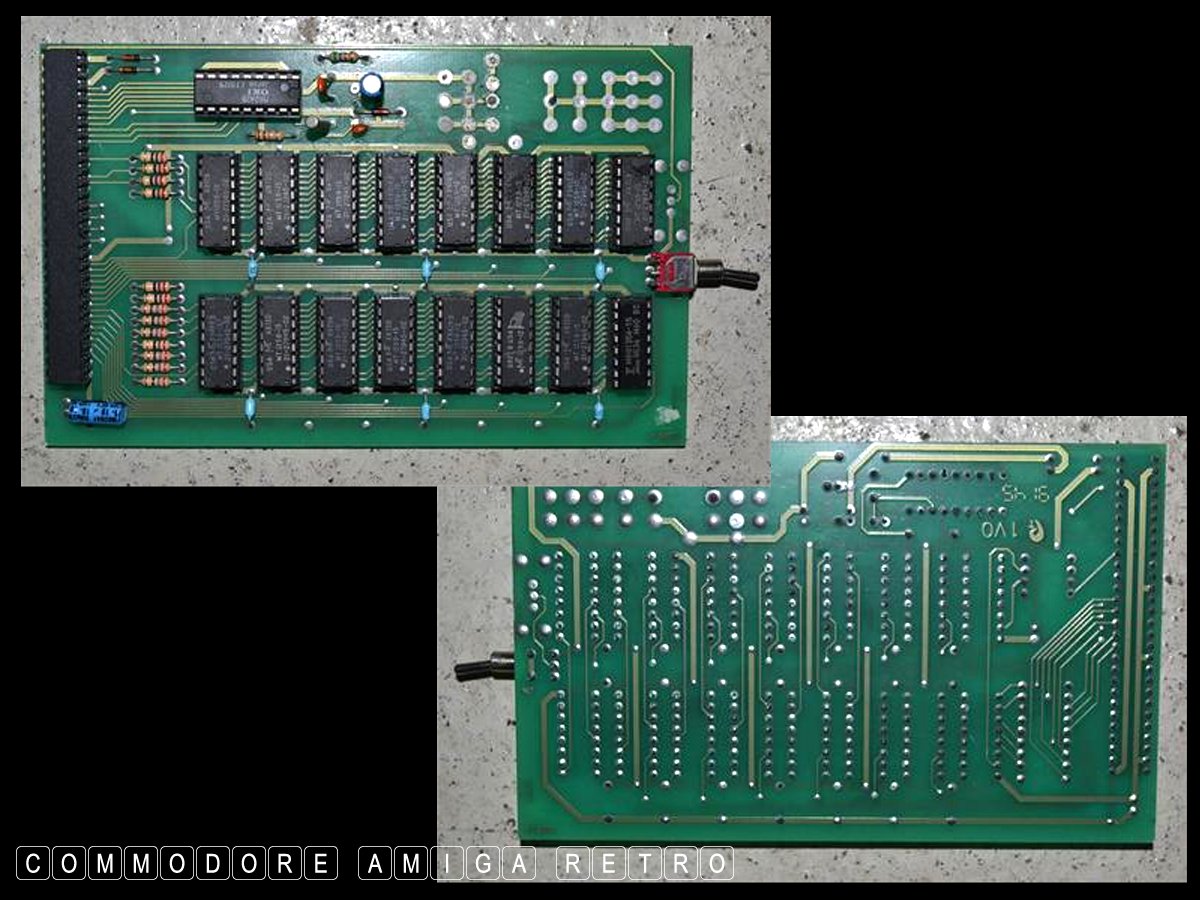

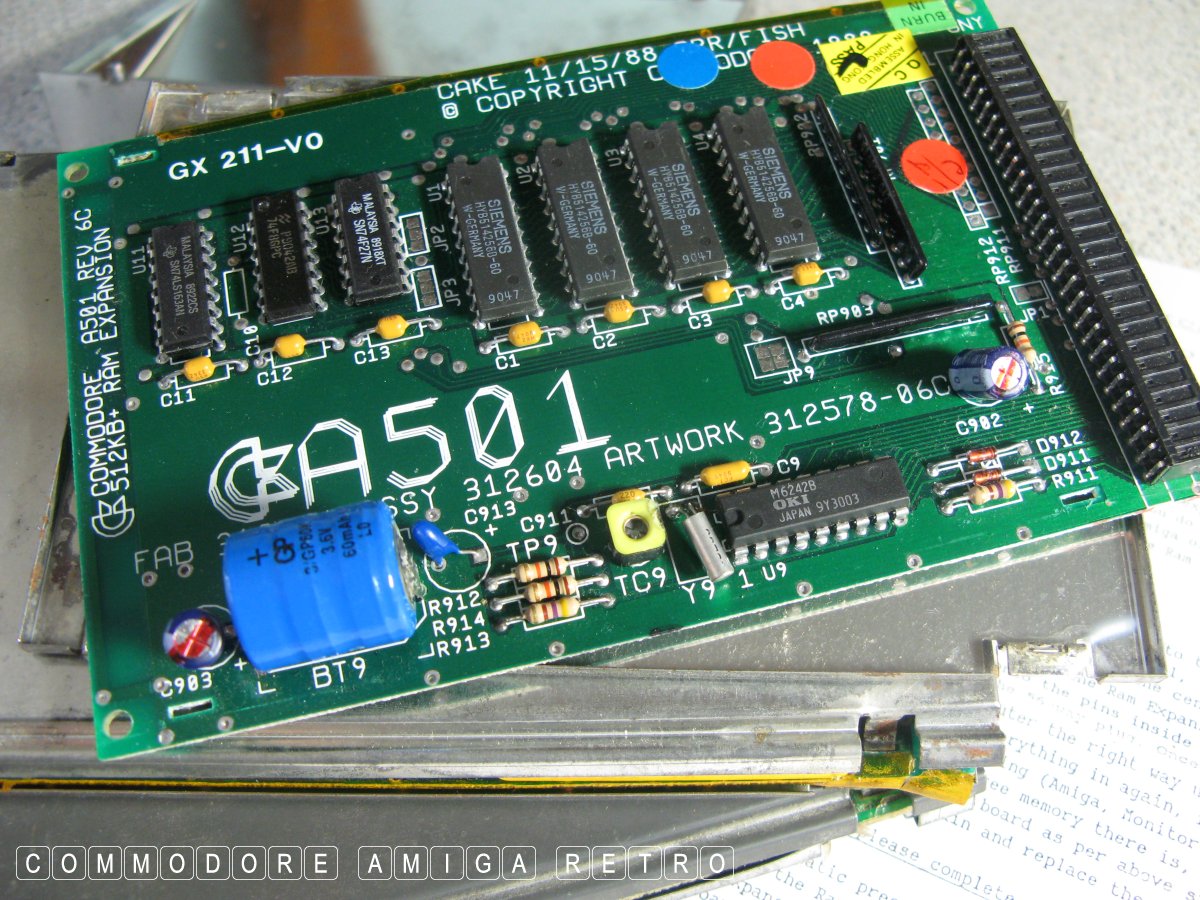

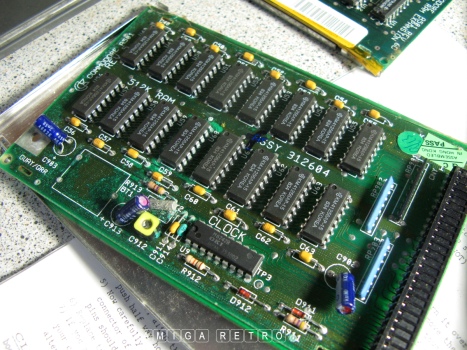

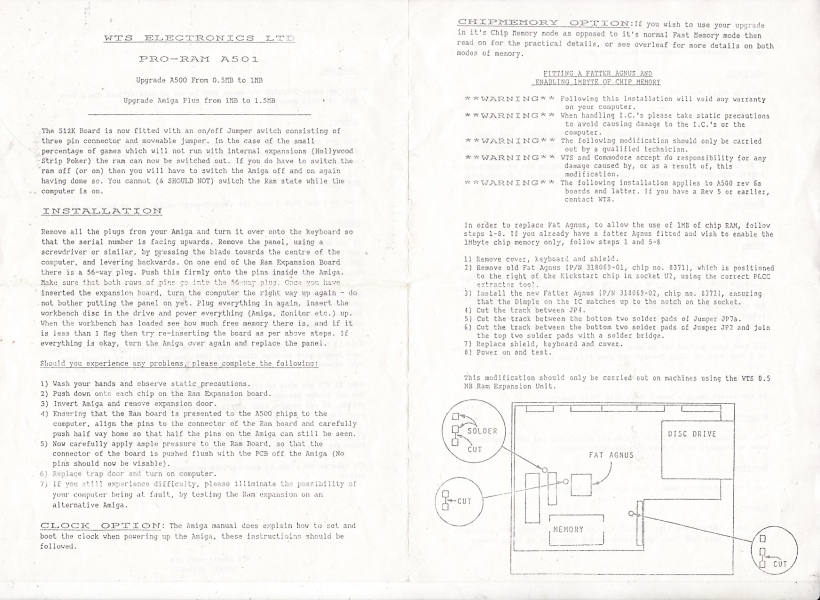

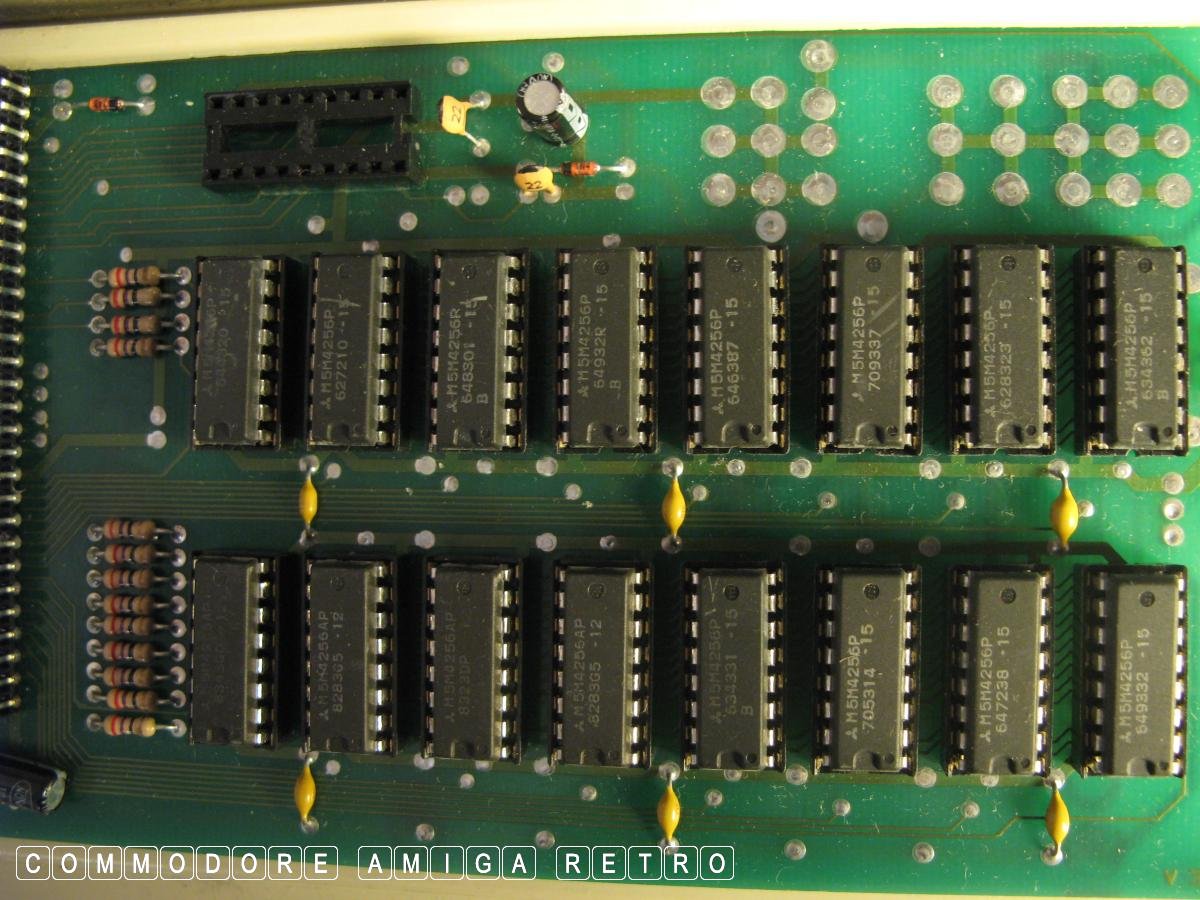

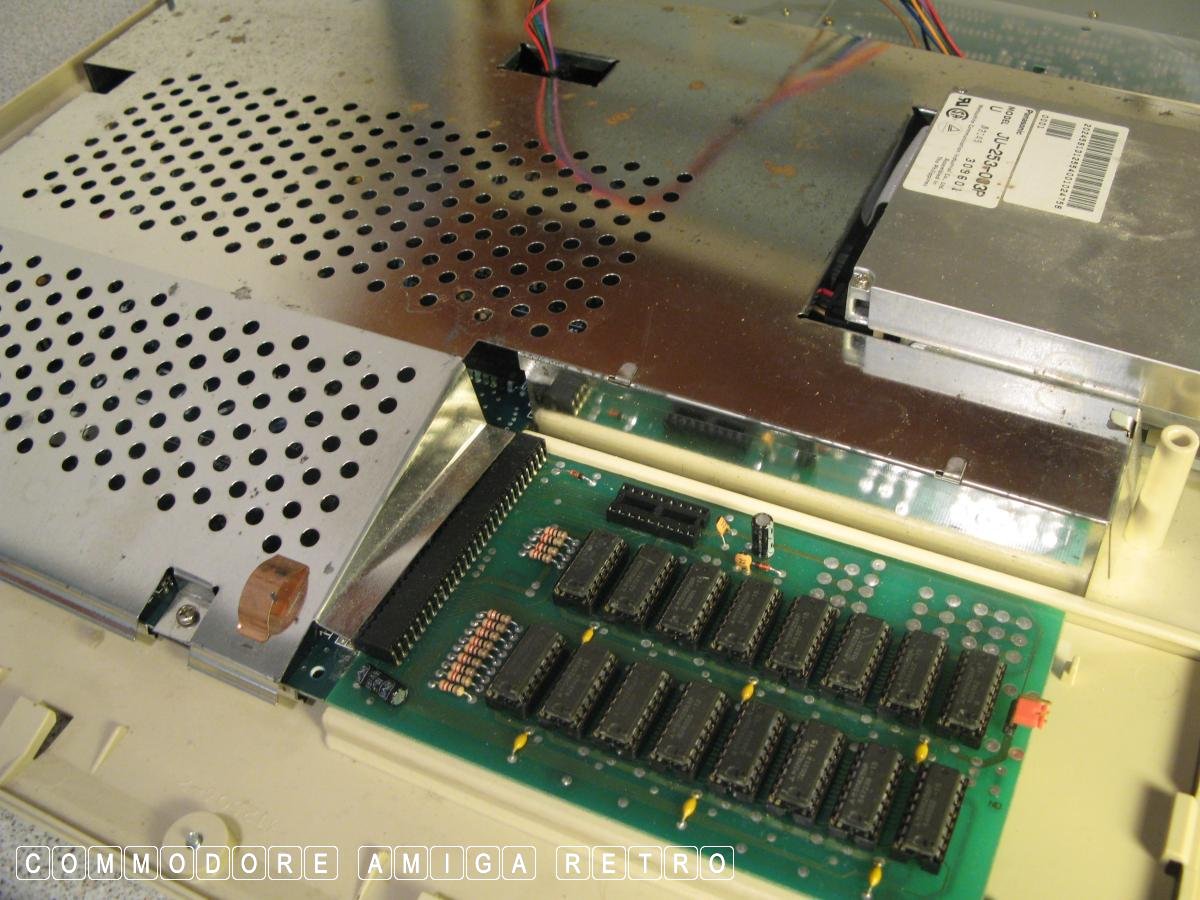

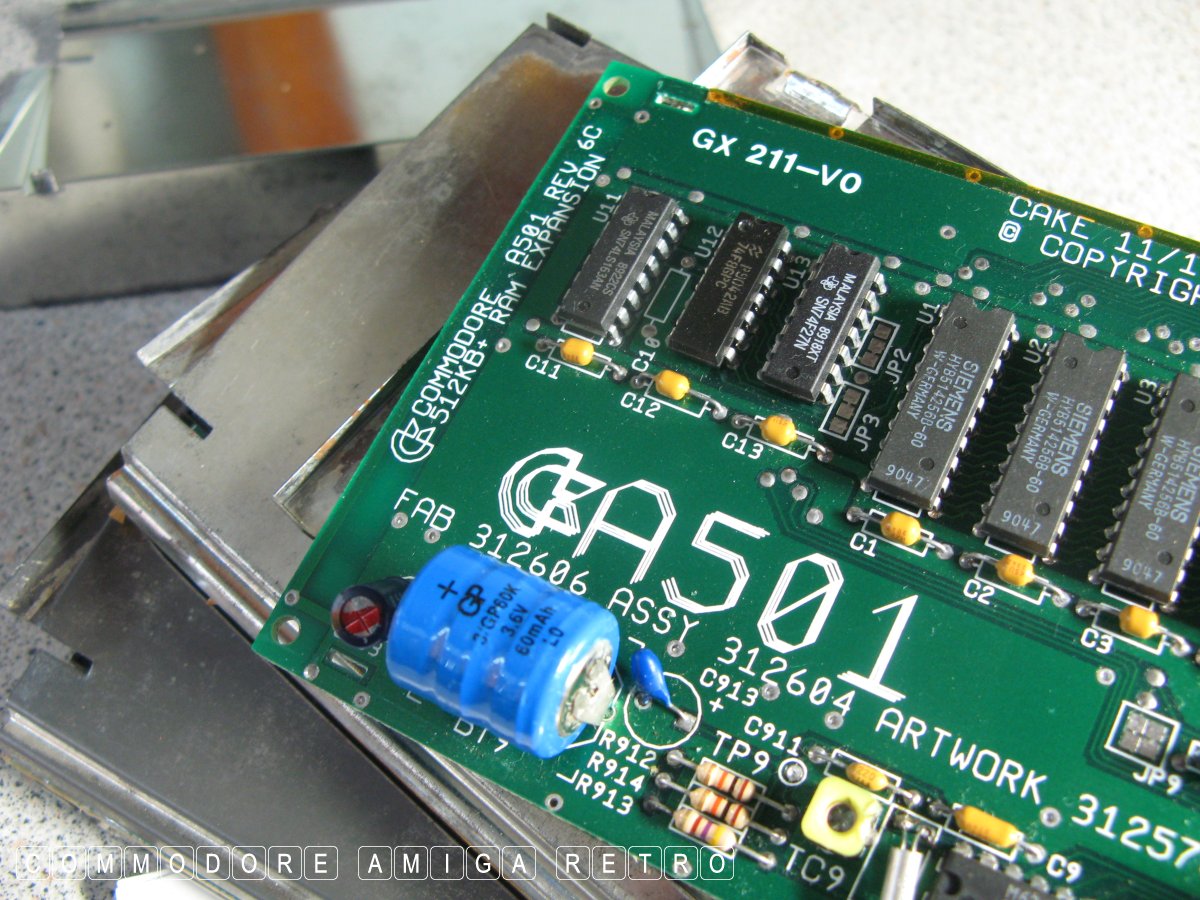

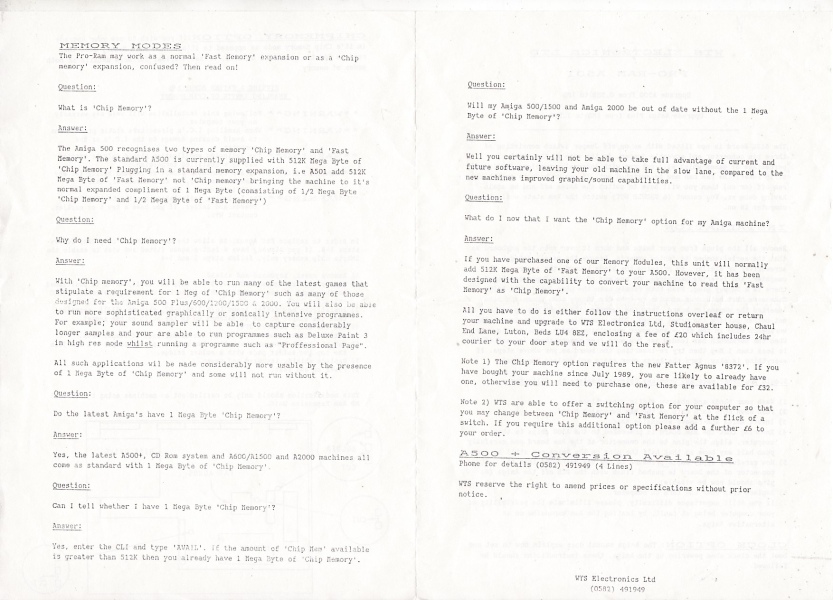

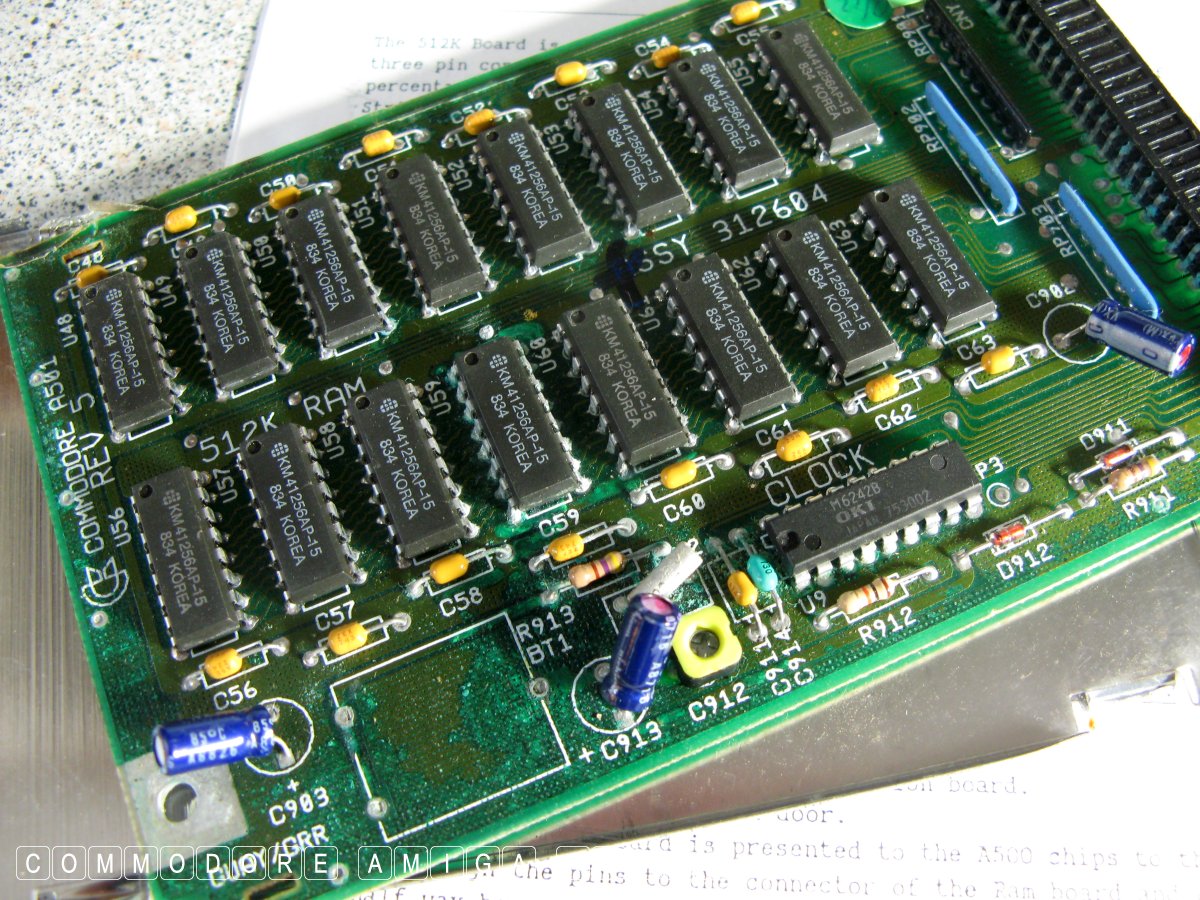

ScuzzBlog: Diaries August 2023 Entry 16th August 2023: Post 1: WTS Electronics - Pro-RAM A501. WTS Electronics - Pro-RAM A501. When I found this little leaflet amongst my books the other day I thought for a moment I had found an upgrade for the Commodore A501 memory card. Got me quite excited for a moment, until I then realised it was talking about another card by WTS Electronics called the Pro-RAM A501. What was interesting about the leaflet is that it not only has information on the upgrade card for the A500-Plus taking you from 1mb to 1.5mb and A500 from .5 to 1mb but a full descriptive on how to make the modifications to the board to use the memory as CHIP RAM. This little snippet of information was so significant that I scanned in the document and have included it today. I then went on the search for my A500 or Plus that had this card, which I can tell you was no small task. I found the A500 Plus with the card and include some images today. Amazing what turns up when you are not looking for it. The amount of times I have been asked about the modifications to use a RAM card as CHIP RAM and the details were right under my nose. Thanks to the Big Book of Amiga Hardware for identifying the card from the name on the leaflet. I was able to use the two images from the big book to track down my 'beastie'. Anyhoo that was that for today or was it yesterday. I really have no idea where I am at the moment, my days have switched with the nights. Doesn't matter. Gaming does that to you. Bloody Ada Wong. WTS Electronics - Pro-RAM A501.
