ScuzzBlog: Diaries August 2024

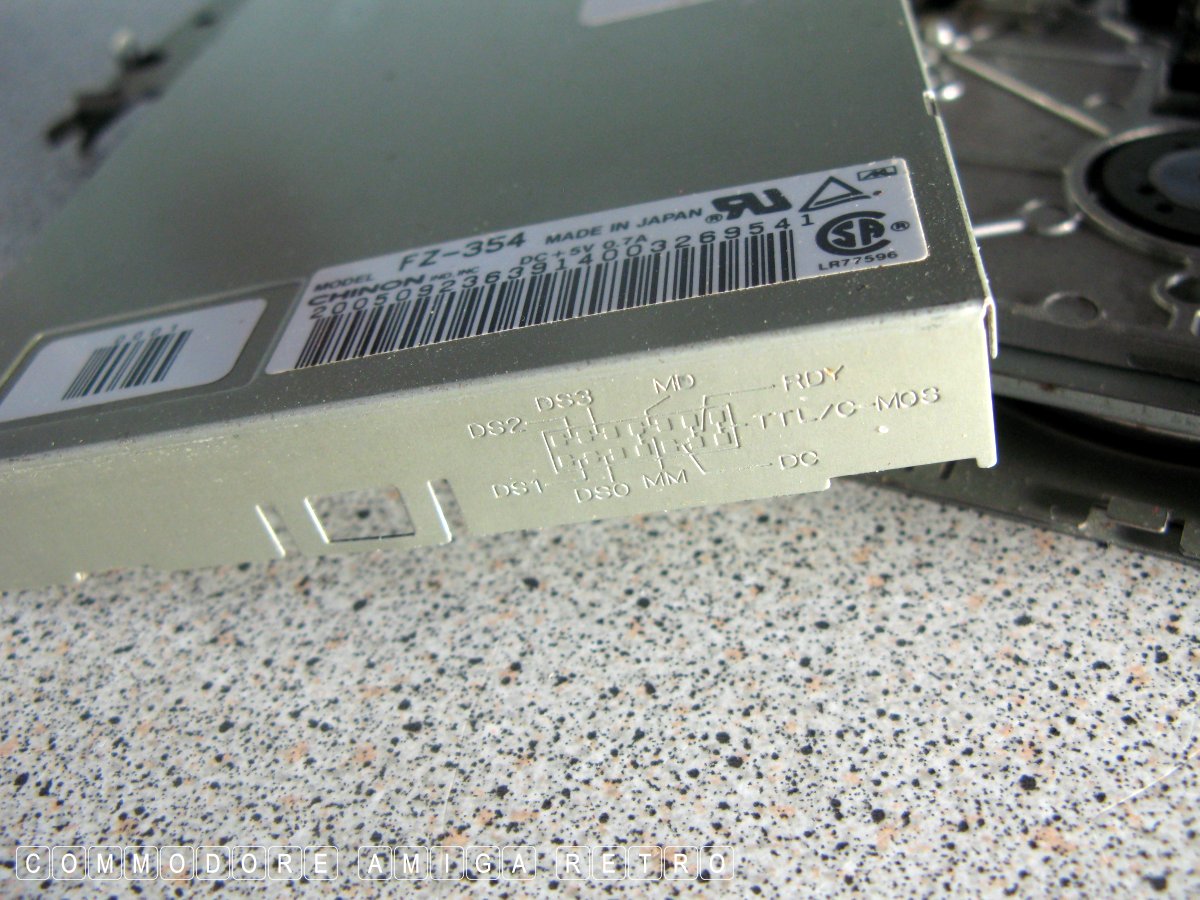

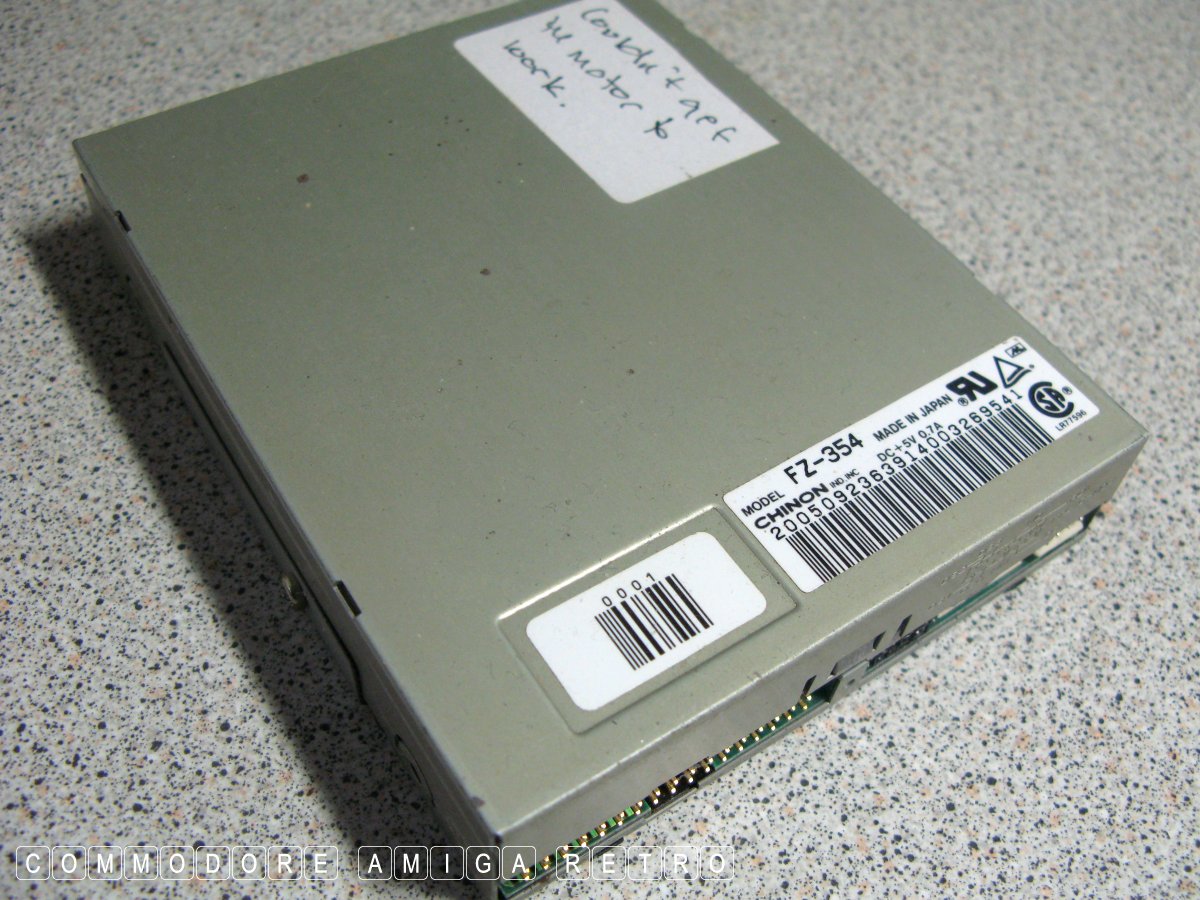

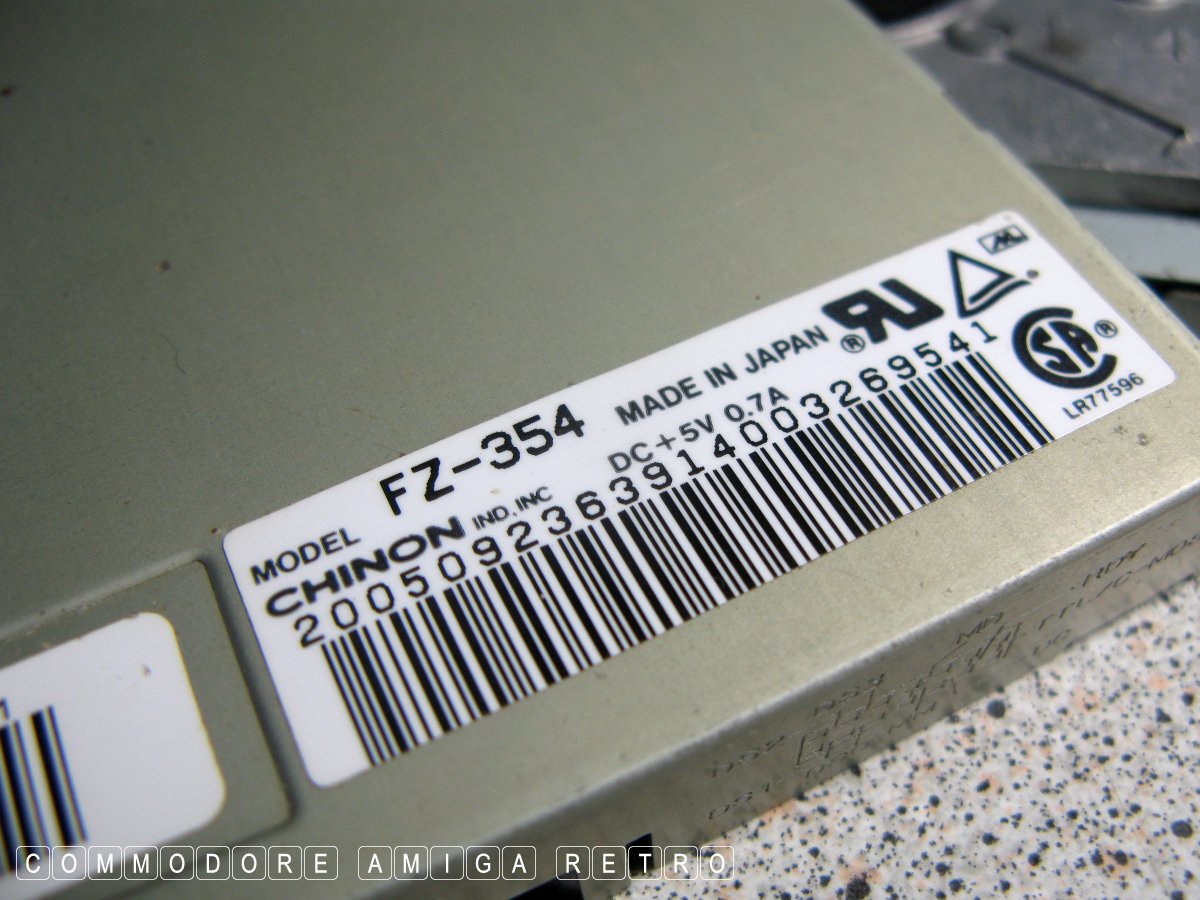

Entry 19th August 2024: Post 1: Amiga floppy drive - Chinon FZ-354.

Amiga floppy drive - Chinon FZ-354.

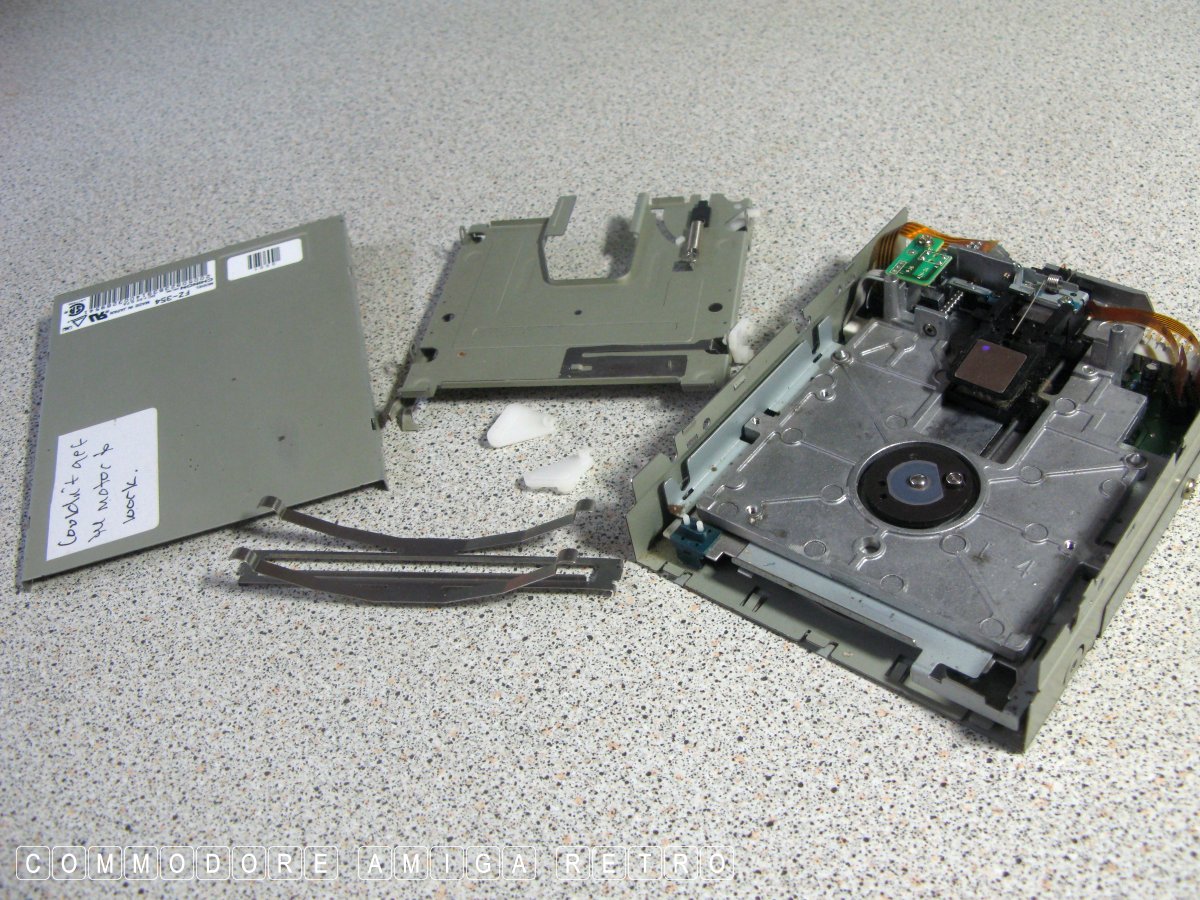

These days I seem to be answering questions regarding the Amiga
floppy drive quite a lot. I always seem to be unable to find a

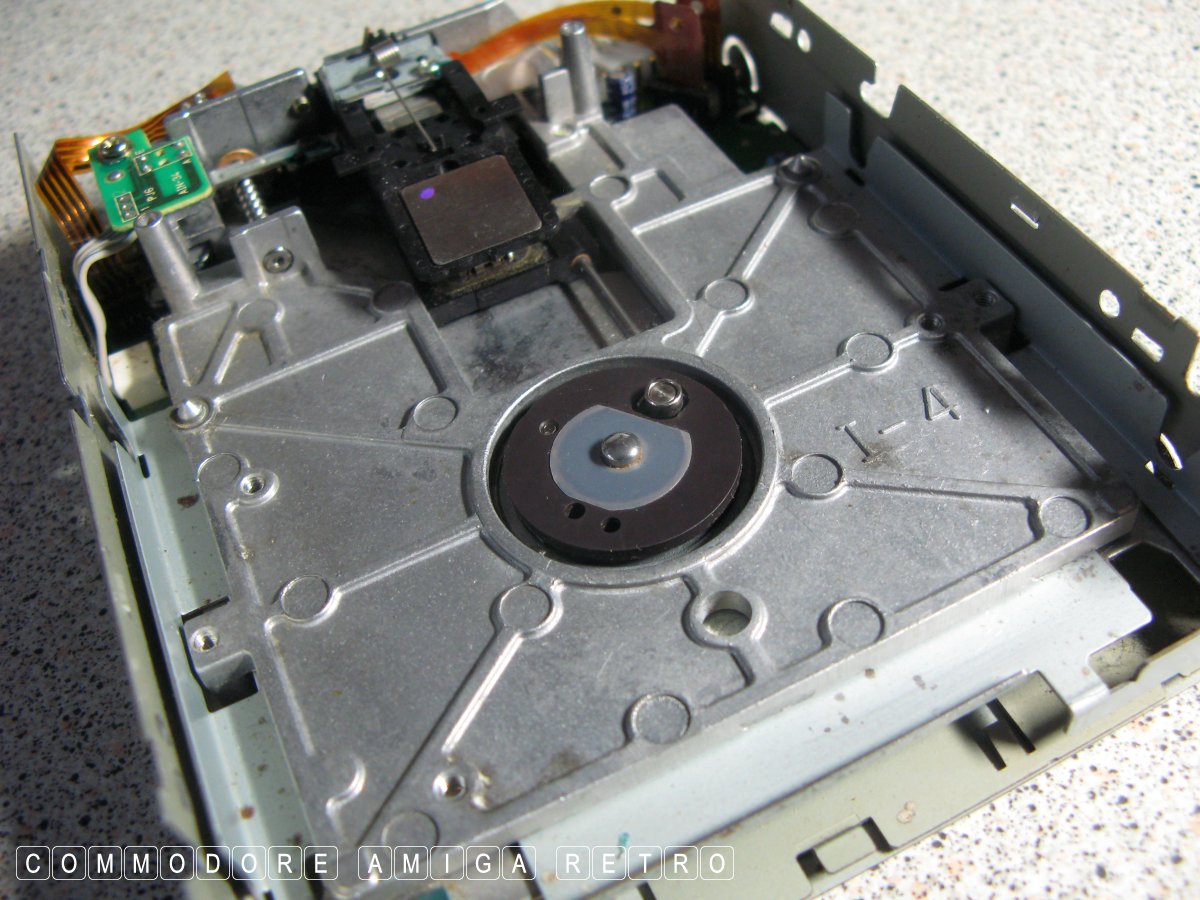

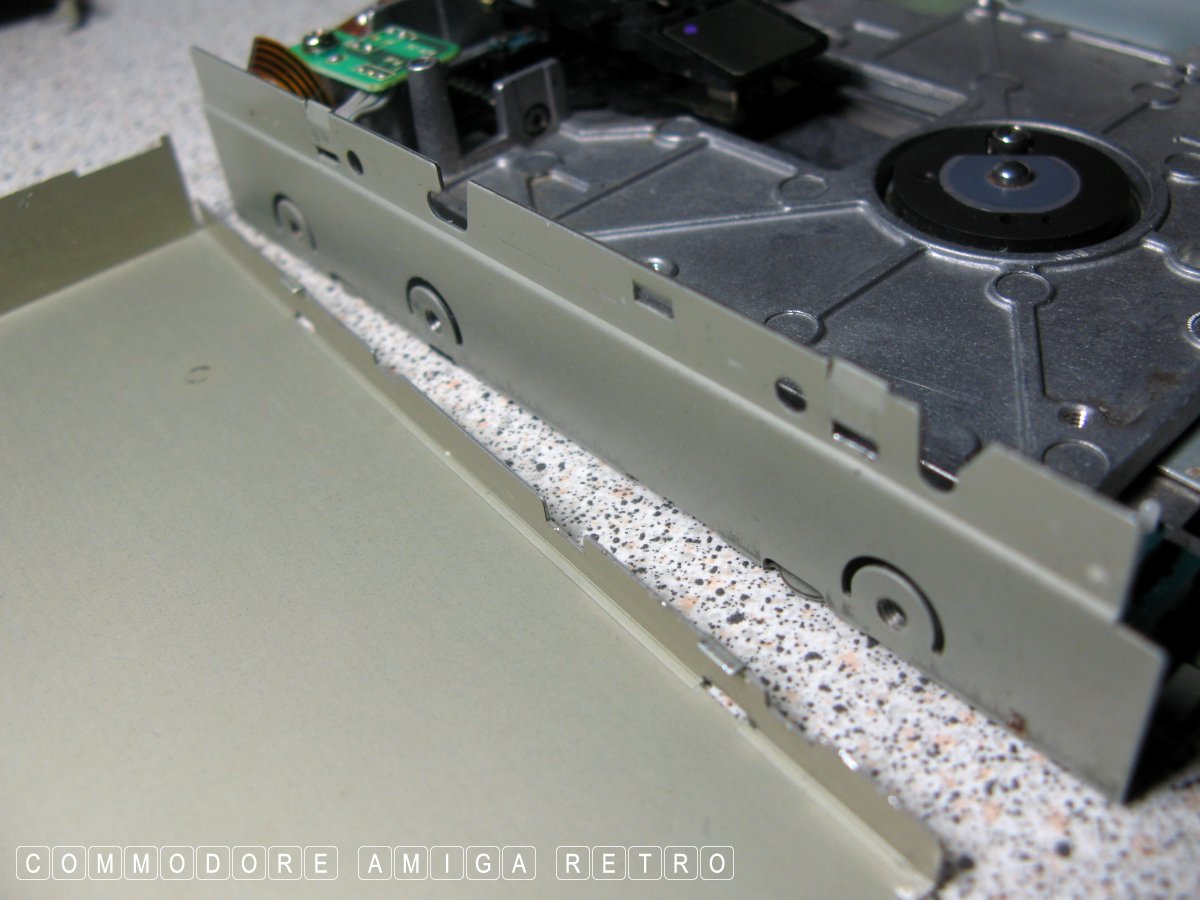

good picture to use so I decided to take one apart and create a
good set of images.

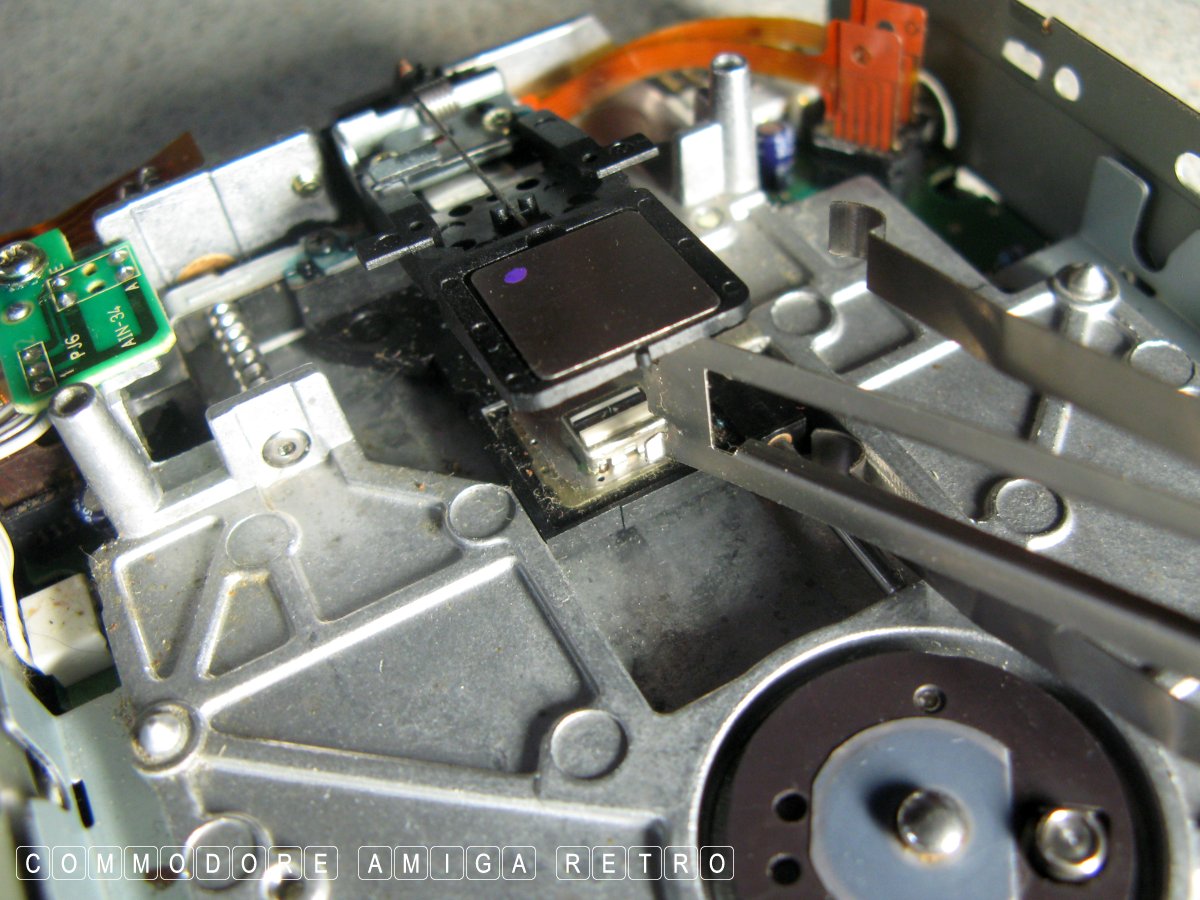

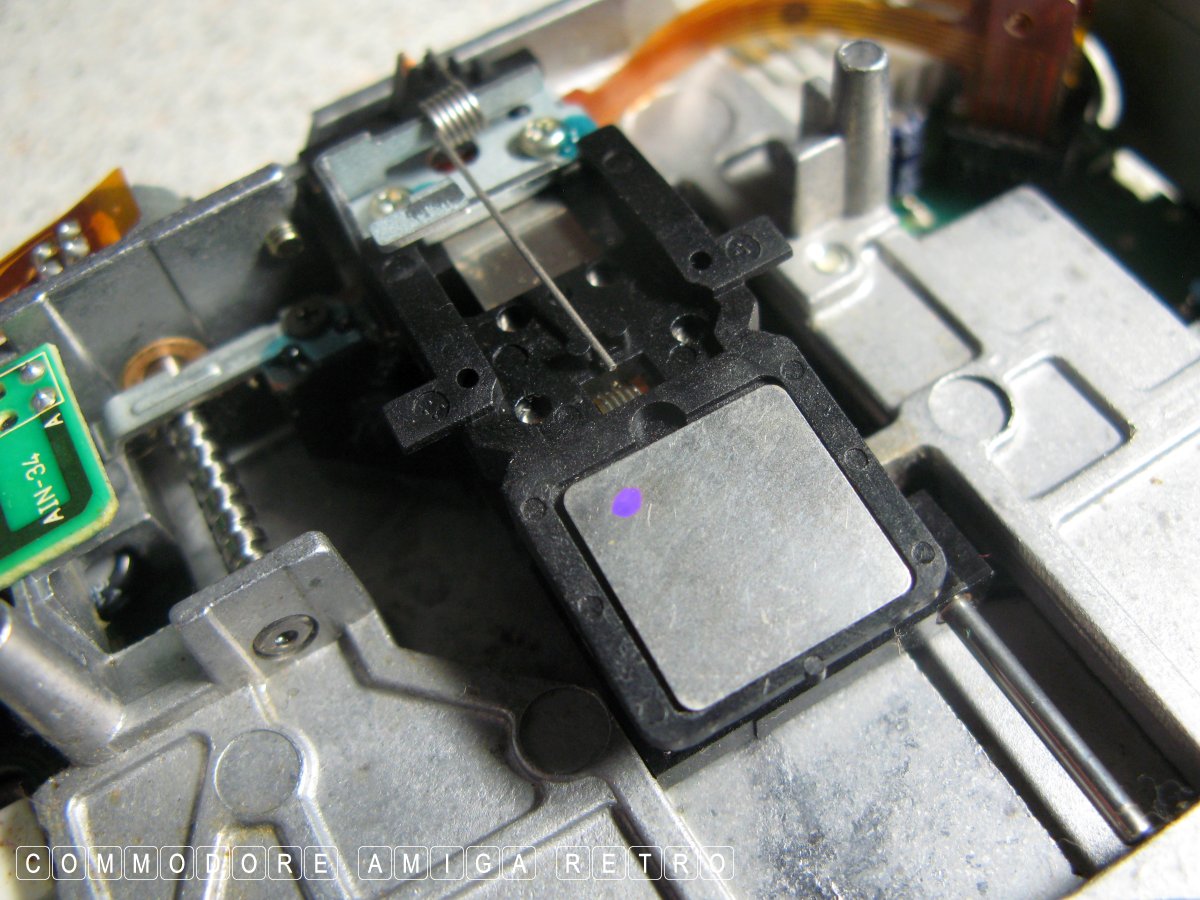

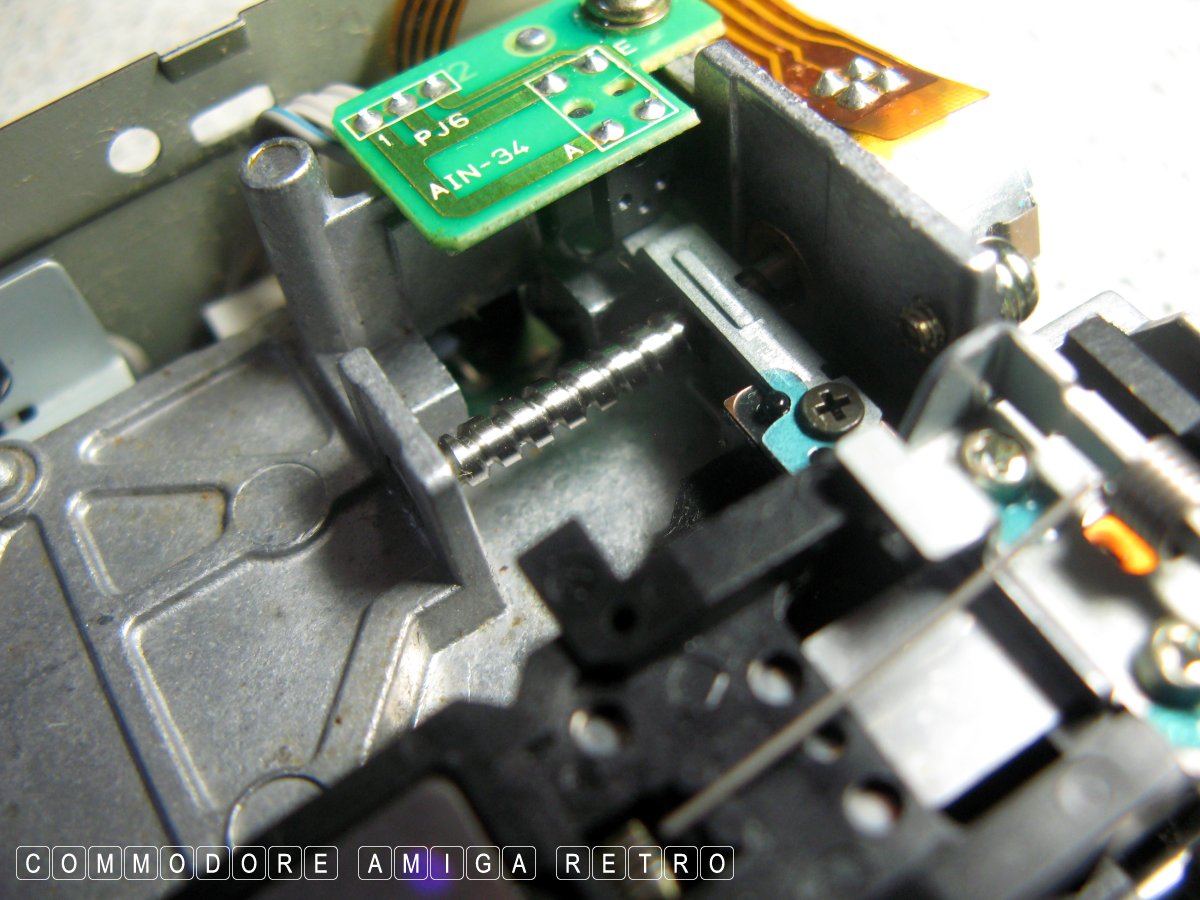

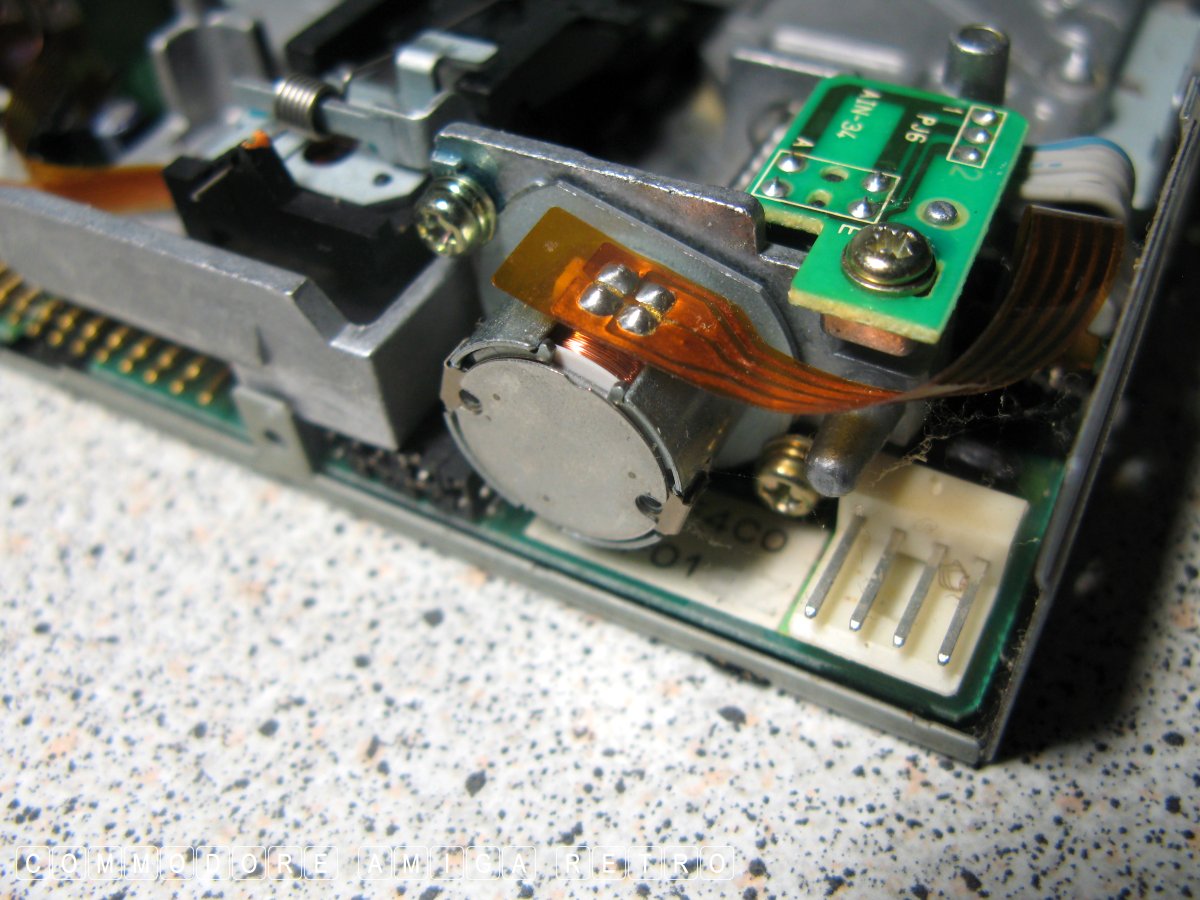

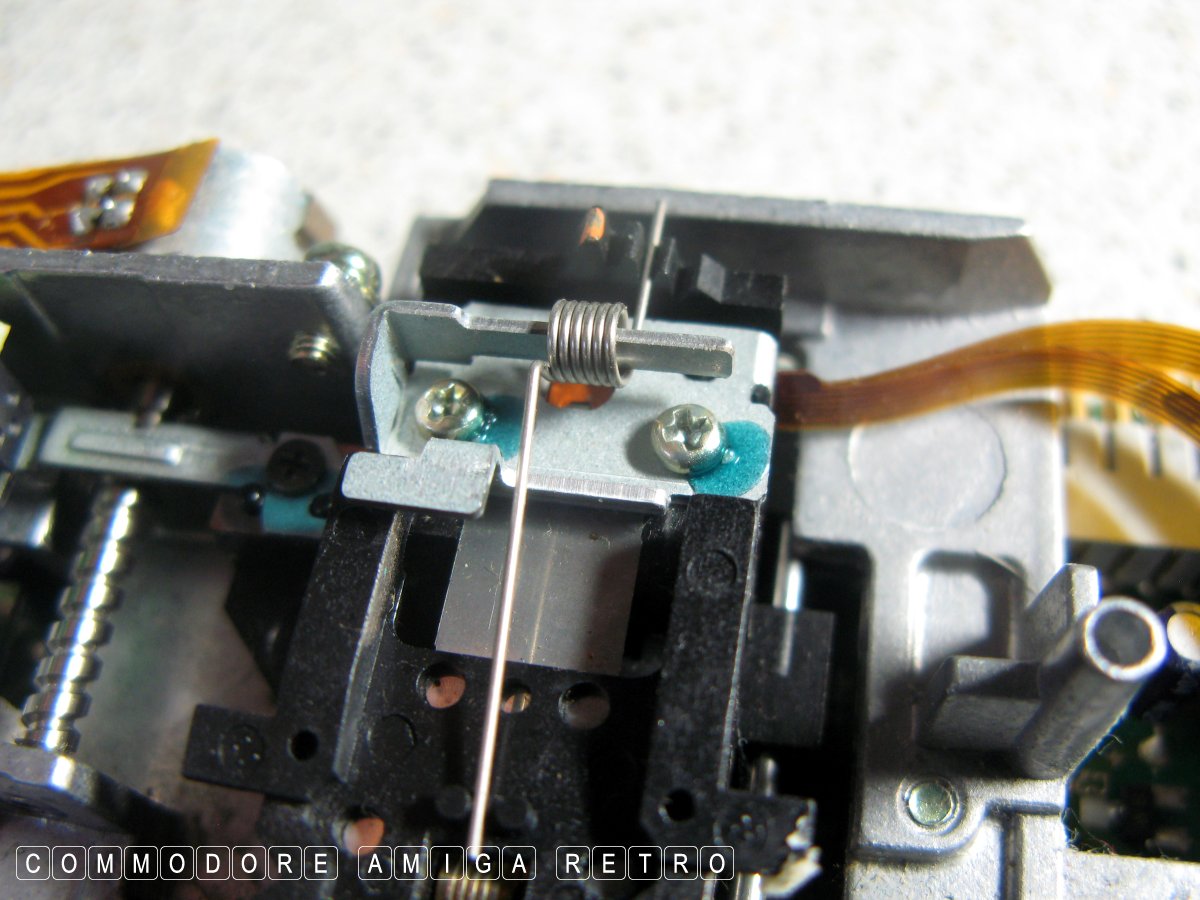

The areas of particular interest were the glued screws that stop

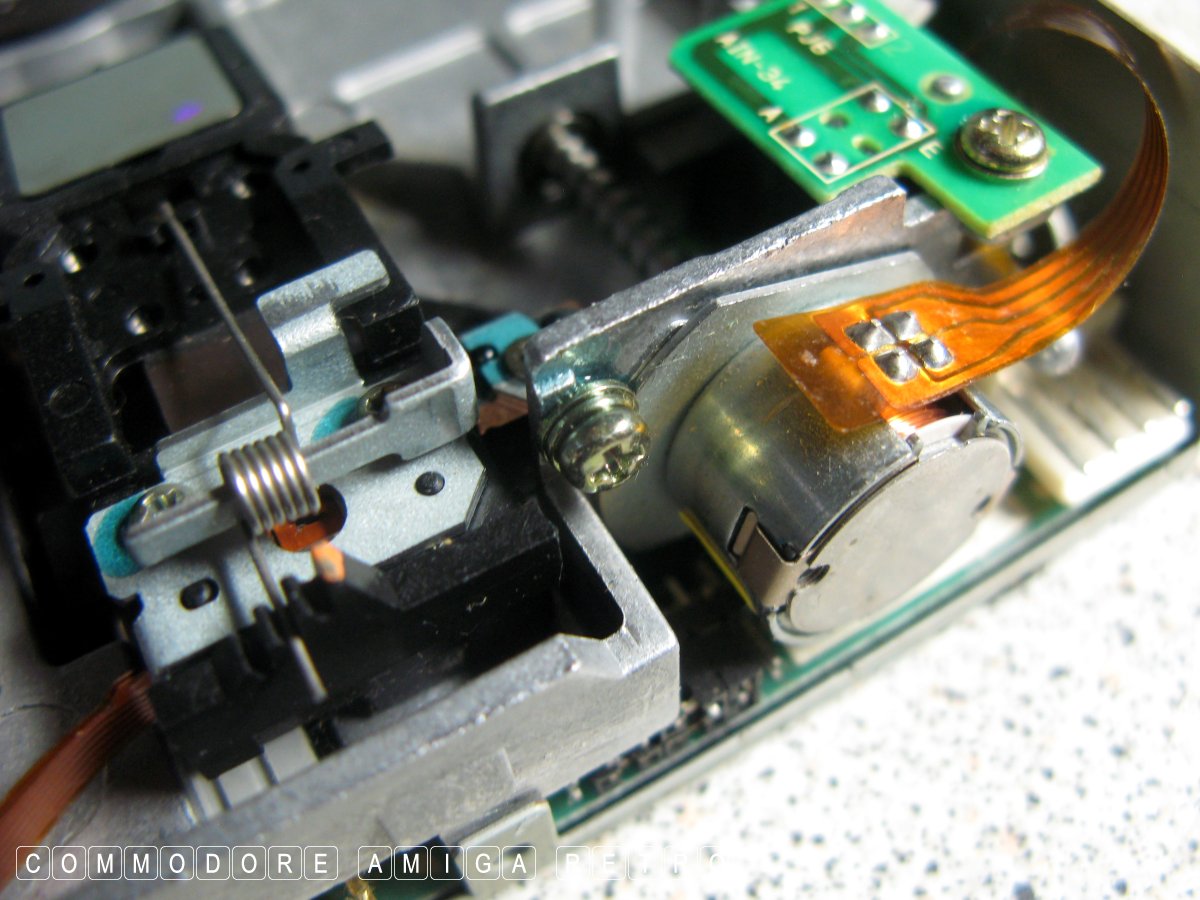

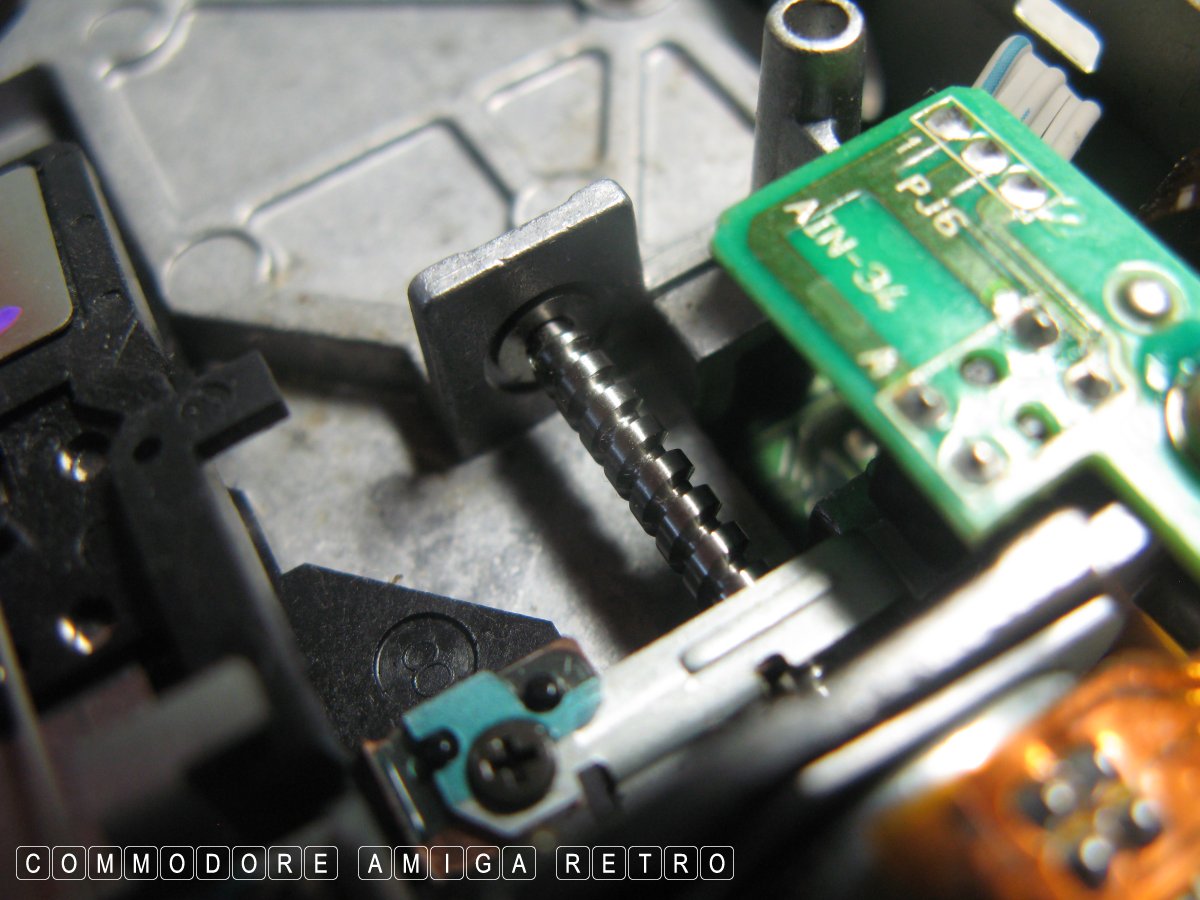

the tampering with the head alignment, the worm and the motor.

So these images are really for future reference for my benefit.

Amiga floppy drive - Chinon FZ-354.
