Entry 8th June 2021: Post 2: Amiga 2000 HD - Help locating that battery.


Amiga 2000 HD - Help locating that battery.

One of the perils of owning an Amiga 2000 is the possible damage
to the motherboard caused by the dreaded barrel battery. So when
I get a request to show where the battery is I thought I would

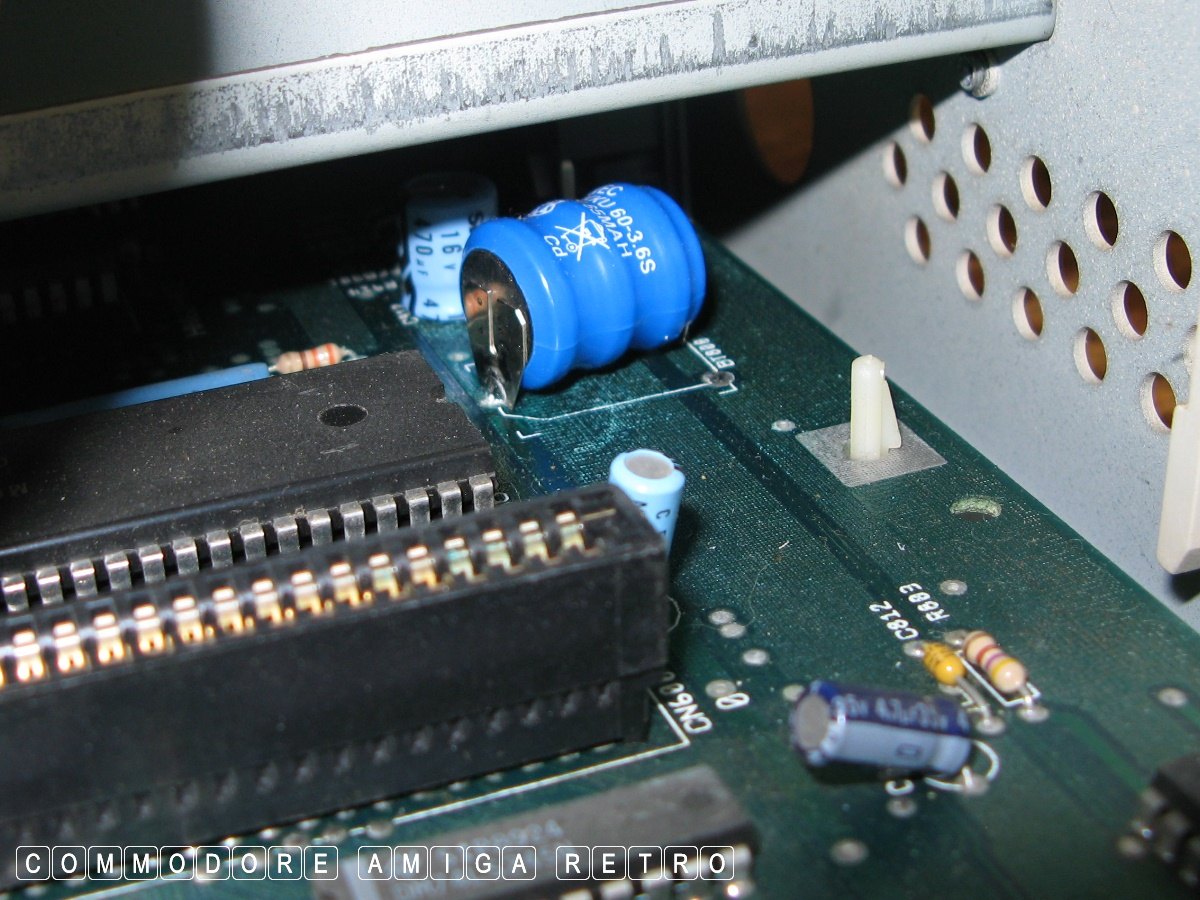

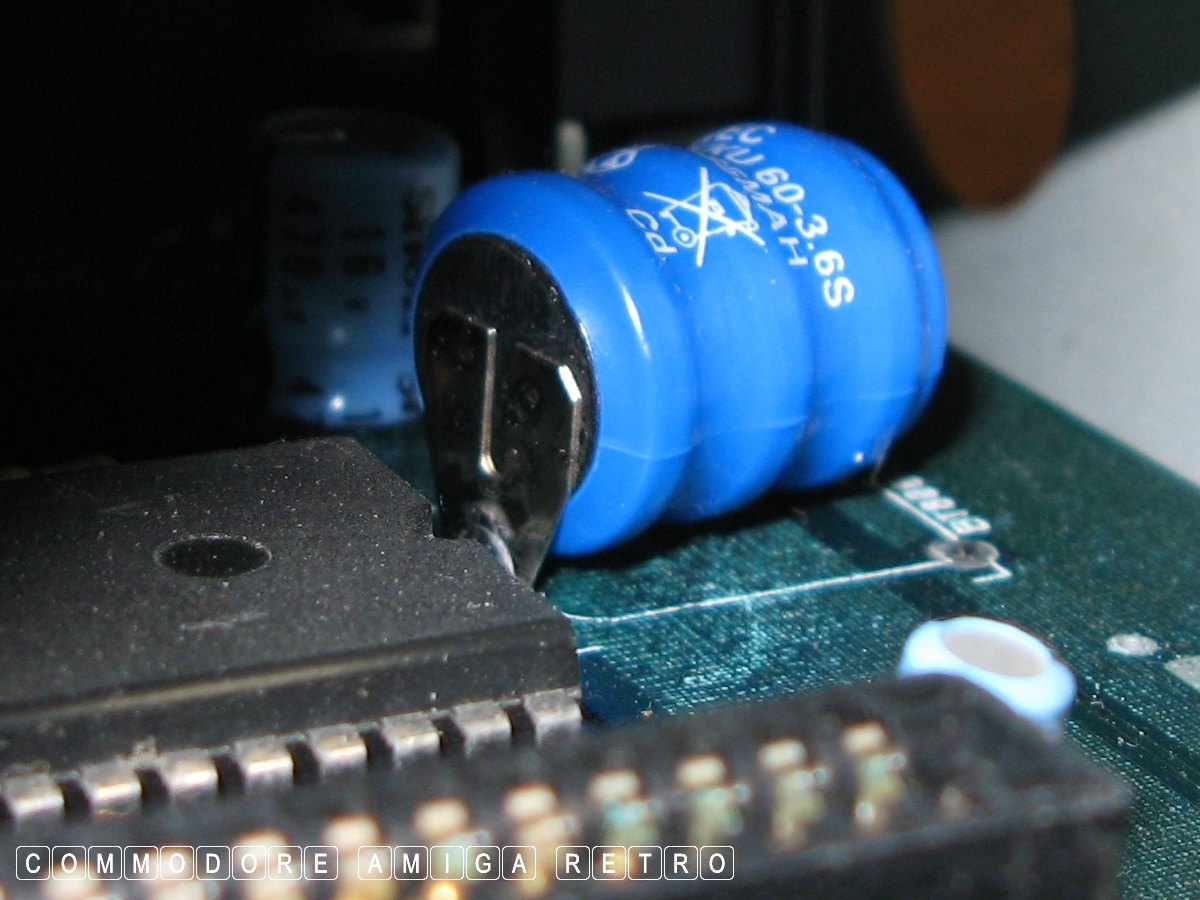

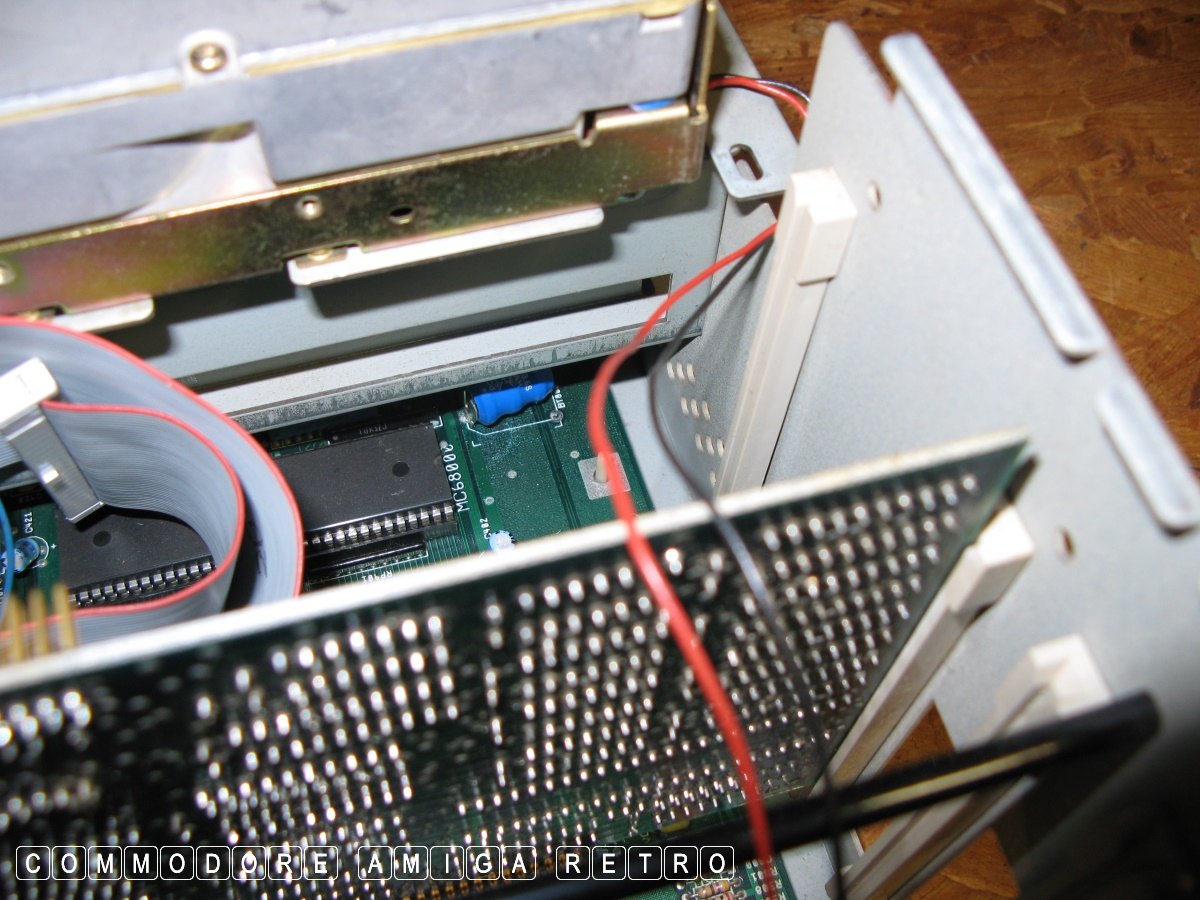

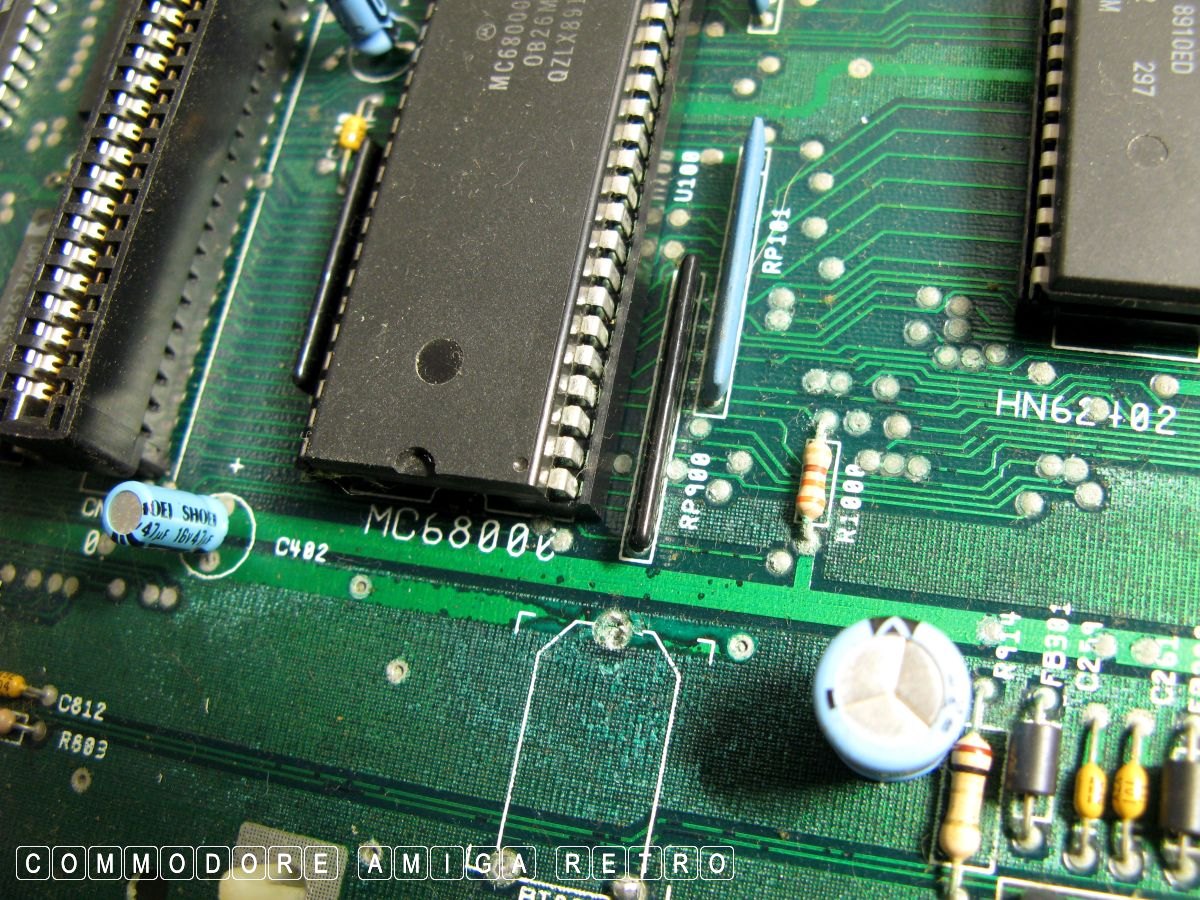

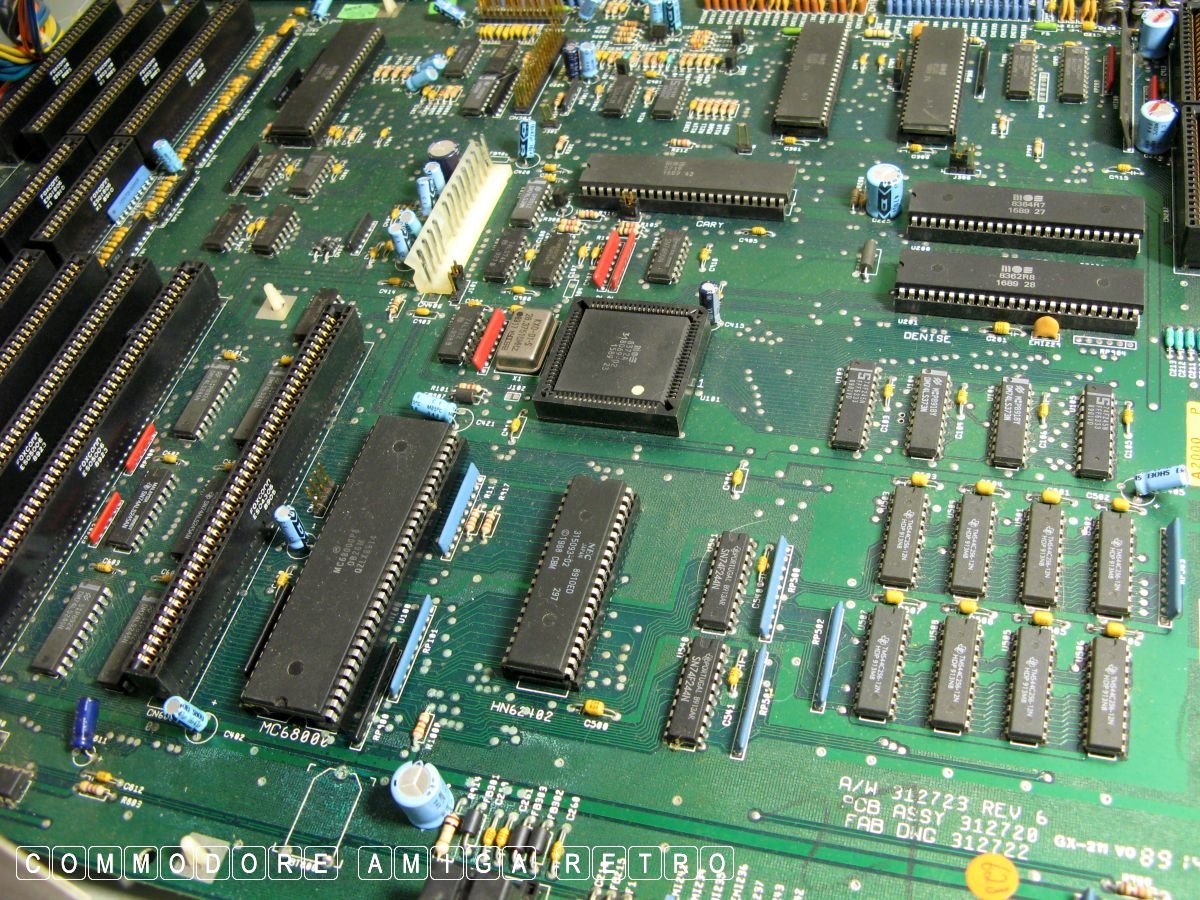

answer with a visual aid. [ a photograph ]. The battery is the
blue thing set on top of the green lush motherboard.

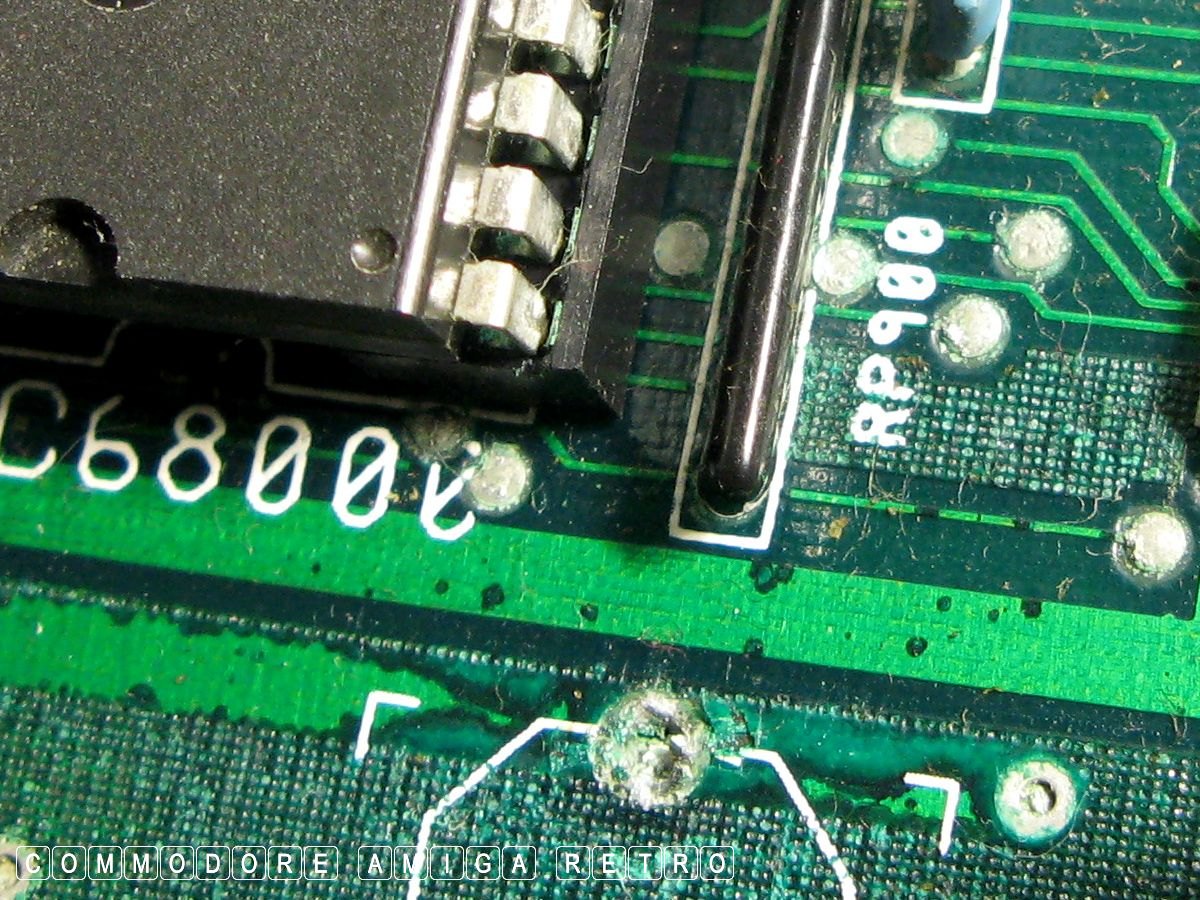

Be afraid... very afraid. For that thing will kill the CPU slot.

Hope that helps.

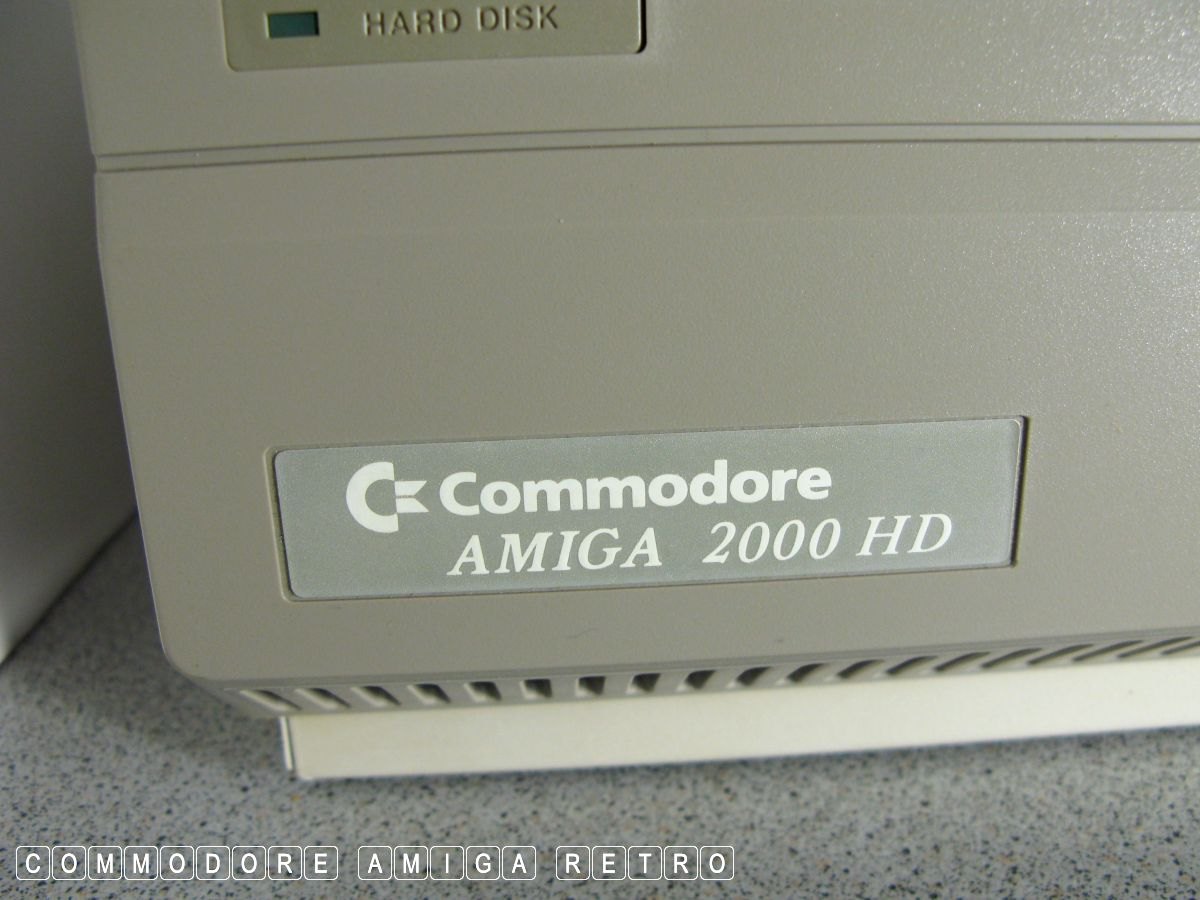

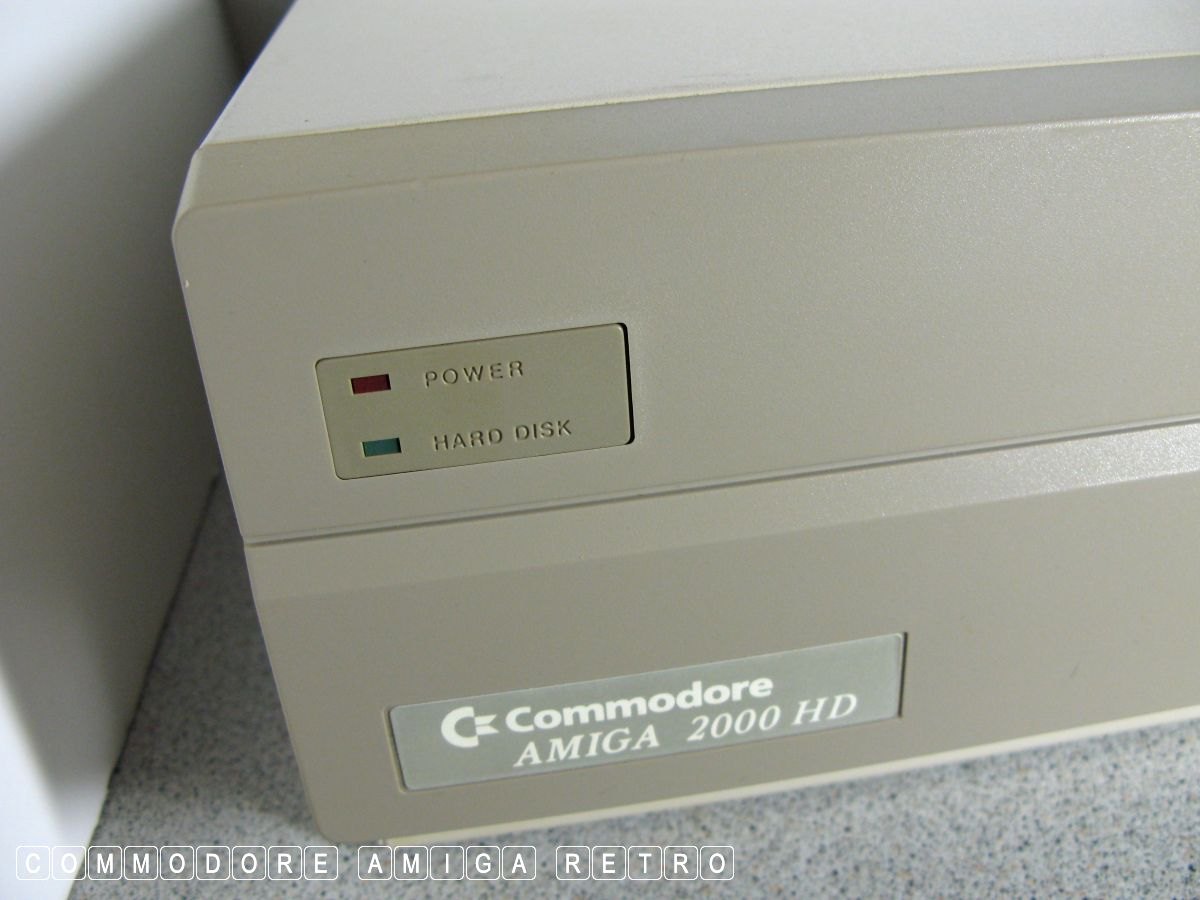

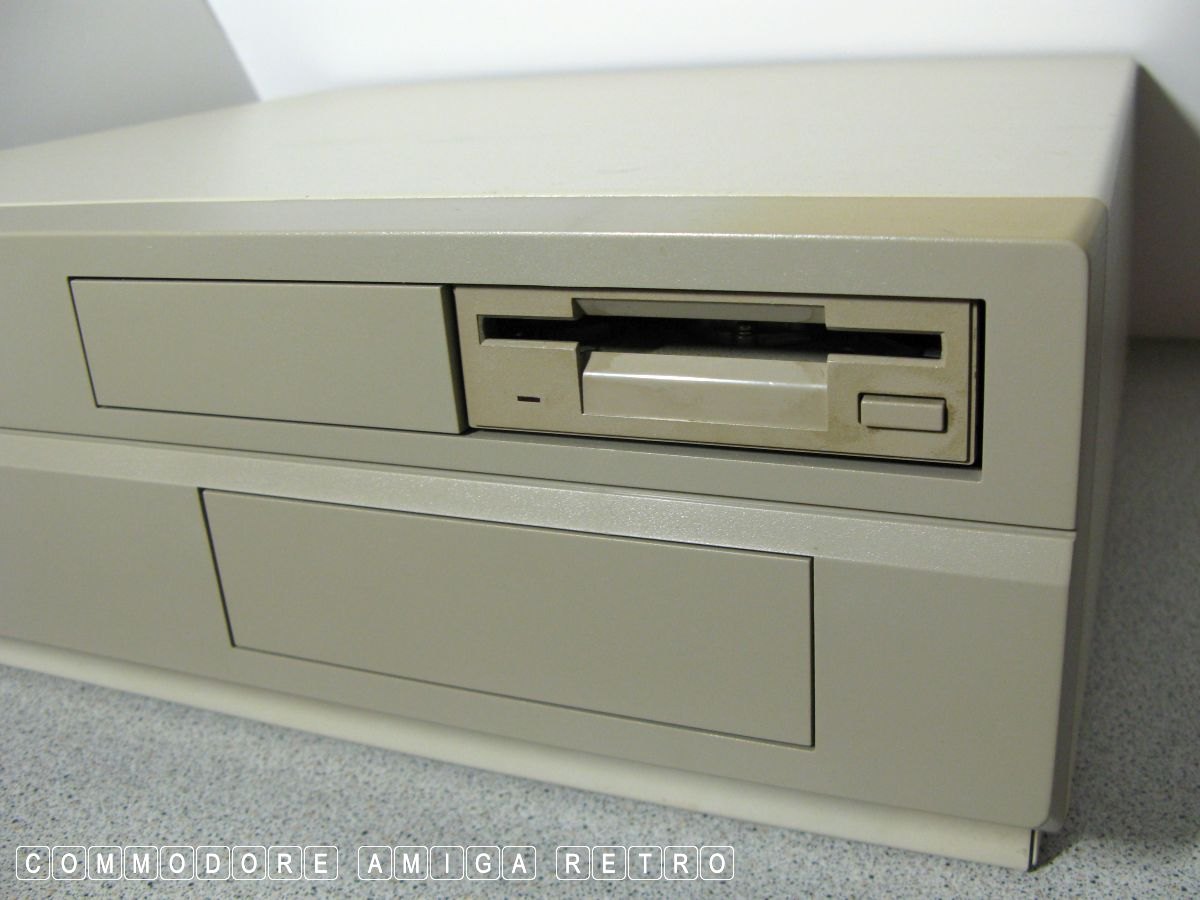

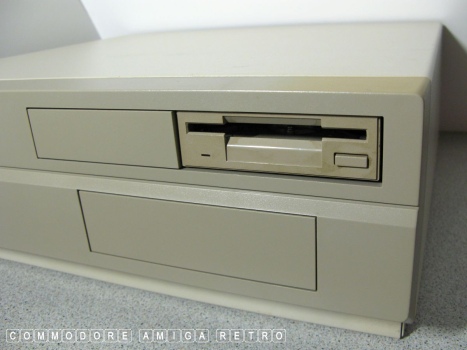

It may seem odd that the Amiga 2000 had the double face plate for
the floppies but generally only used one. That is until you learn

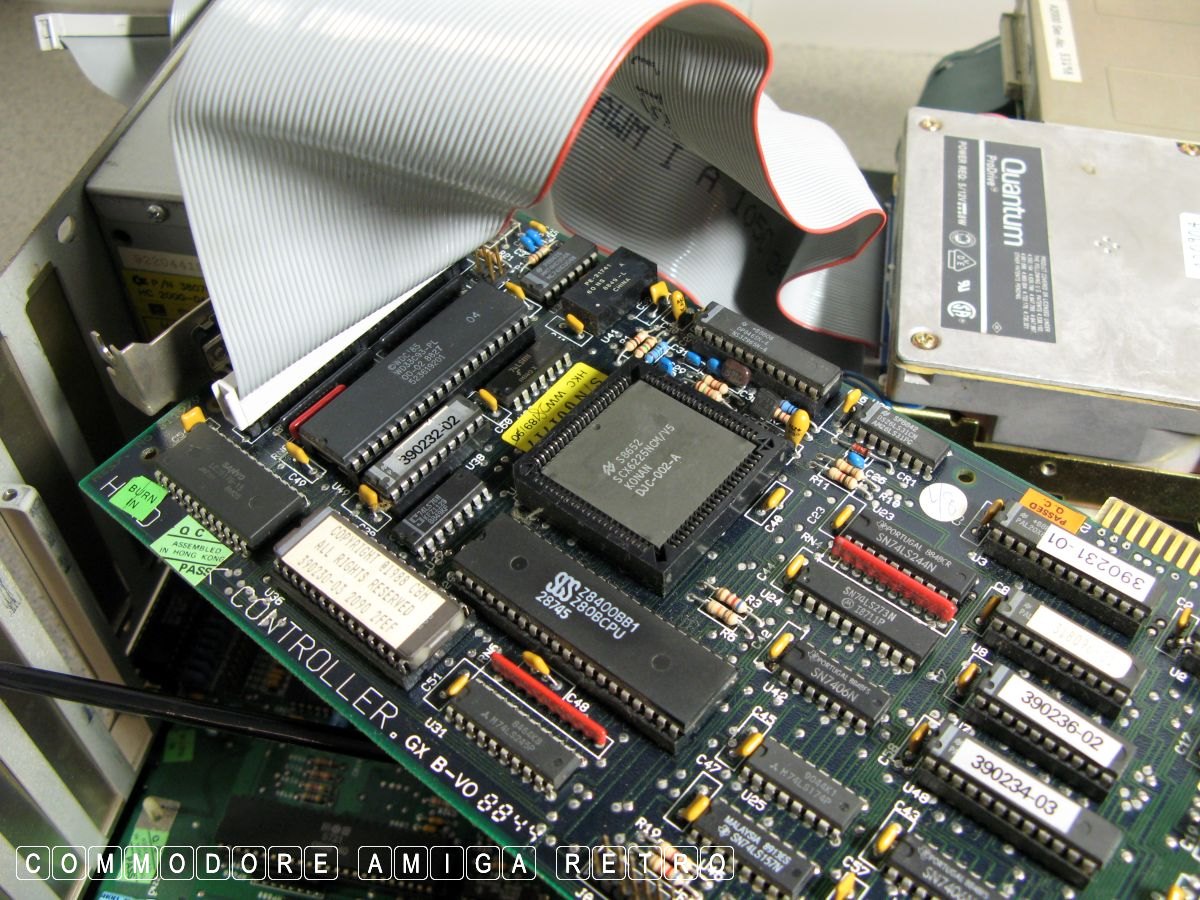

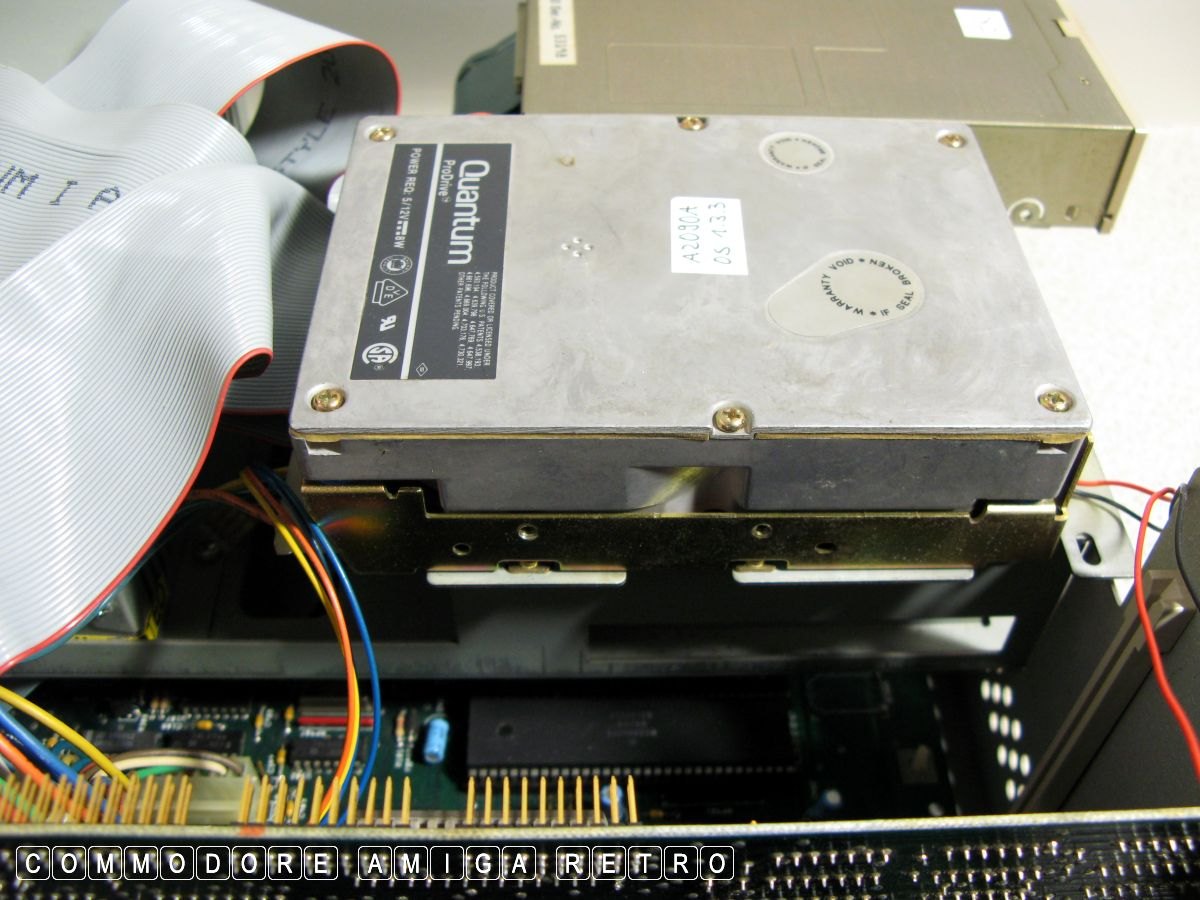

that behind the second face plate is a hard drive... sometimes.

Amiga 2000 HD - Help locating that battery.
